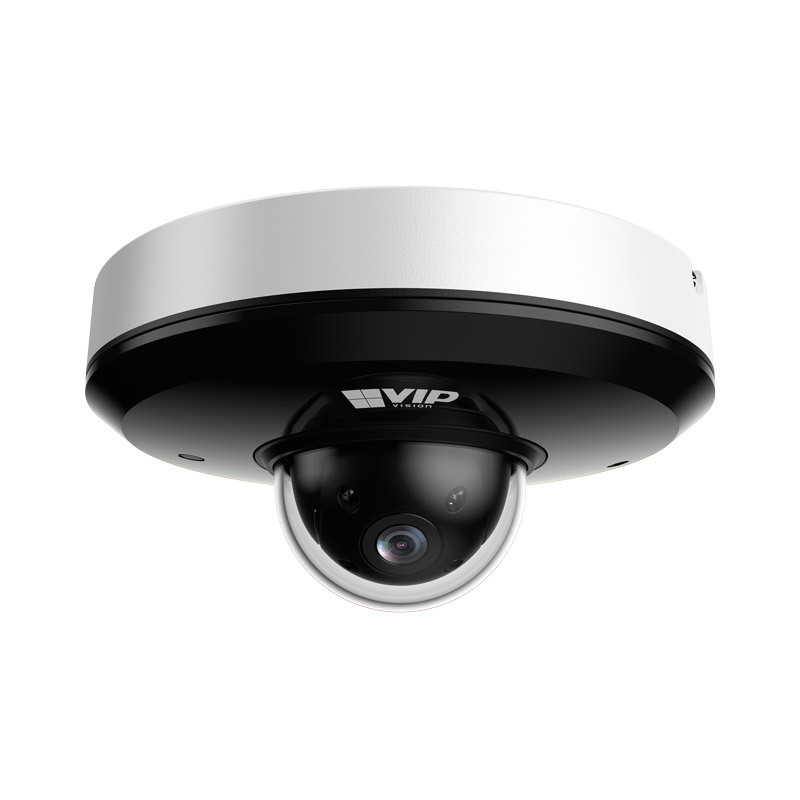

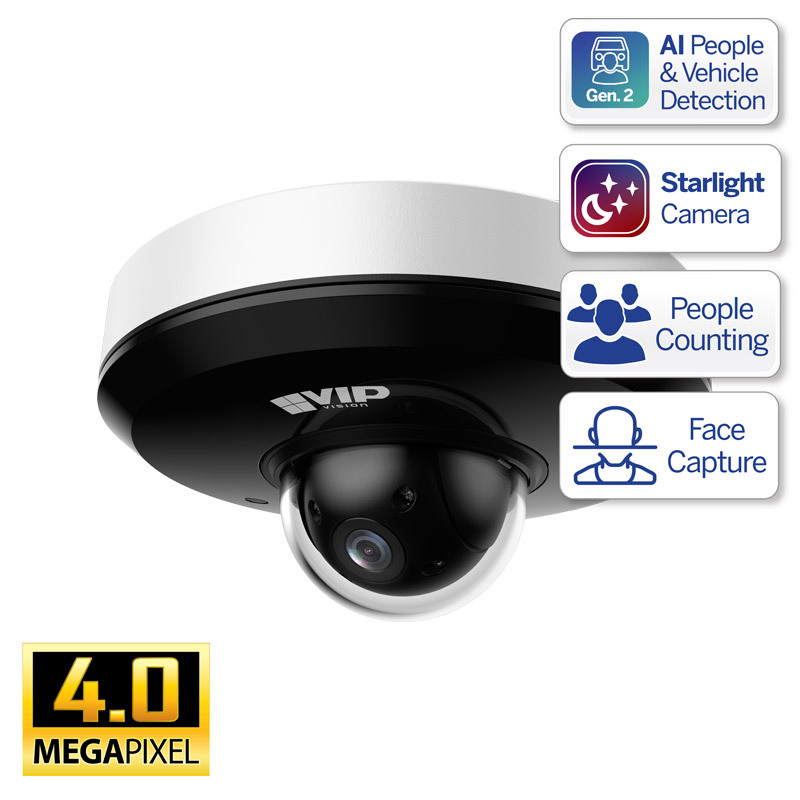

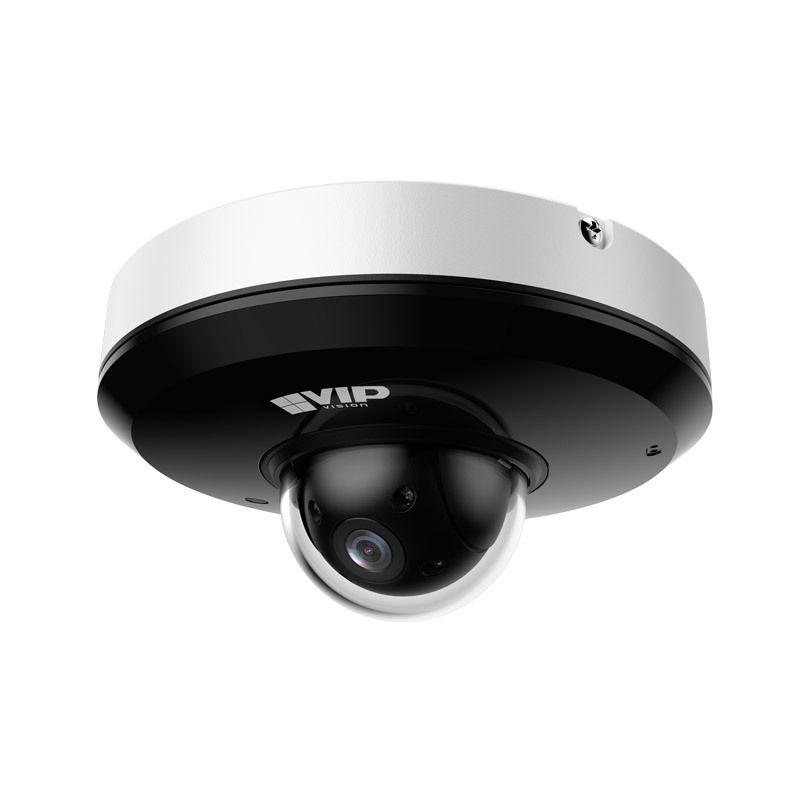

Specialist AI Series 4.0MP 4x Zoom PTZ Dome
Sale!
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 2
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 3
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 4
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 5
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 6
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 7
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 8
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 9
Specialist AI Series 4.0MP 4x Zoom PTZ Dome - Image 10

Specialist AI Series 4.0MP 4x Zoom PTZ Dome

Original price was: $542.69.Current price is: $390.46.

Register for Member Pricing

4 Interest Free Payments of $97.62
Specialist AI Series 4.0MP 4x Zoom PTZ Dome

SKU: VSIPPTZ-4IRM-I2 Categories: , , , Tags: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Small in size but big on features, the PTZ AI Dome combines the flexibility and coverage of PTZ with the power of smart AI technology. The PTZ AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time.

Camera features:

  • Stream up to 4.0MP (2560 x 1440) at 25fps
  • 4x optical zoom lens (32°~97° H viewing angles)
  • Low light colour performance at 0.005lx; 20m IR
  • 355° panning with tilt adjust; flip 180°
  • Intelligent AI detection to identify people & vehicles
  • Next-Gen Smart Motion Detection (SMD 3.0) & Perimeter Protection to prevent false alarms, using VIP Vision NVRs
  • MicroSD card slot for recording up to 512GB
  • Supports Power over Ethernet (802.3af)
  • IP66 weather & IK08 vandal rated resistant housing

Specifications

Camera
Image Sensor
1/2.8″ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) x 1440 (V)
RAM / ROM
512 MB / 256 MB
Min Illumination
0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
S/N Ratio
?55 dB
Infrared System
3 x Infrared LED, 20m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
Field of View
Horizontal: 32°~97°, Vertical: 18°~51°, Diagonal: 36°~116° (4x Optical Zoom)
Focus
Auto/Manual / 0.2m Min. Focus Distance
DORI
Detect (25px/m)
240m
Observe (63px/m)
95m
Recognise (125px/m)
48m
Identify (250px/m)
24m
PTZ
Pan / Tilt Range
Pan: 0 ~ 355° / Tilt: 5 ~ 90°
PTZ Speed
Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
Modes / Presets
Up to 300 presets / 8 tour
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
4.0MP (2560 x 1440) to CIF(352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Bit Rate
H.264: 96 ~ 14,848Kbps / H.265: 38 ~ 8,960Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
Support
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
N/A
Metadata
N/A
People Counting
Supports Line Crossing/Region/Queuing People Counting, Report Generation
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16×
Privacy Masking
N/A
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 512GB) / FTP / P2P
Interoperability
ONVIF / CGI / SDK
Environmental
Power Supply
12VDC / 1.5A / PoE (802.3af)
Power Consumption
<4W / <13W (IR on)
Operating Conditions
-30° ~ +60° C / ?95% RH
Ingress Protection
IP66
Vandal Resistance
IK08
Series
Specialist AI Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
N/A
ePoE
No

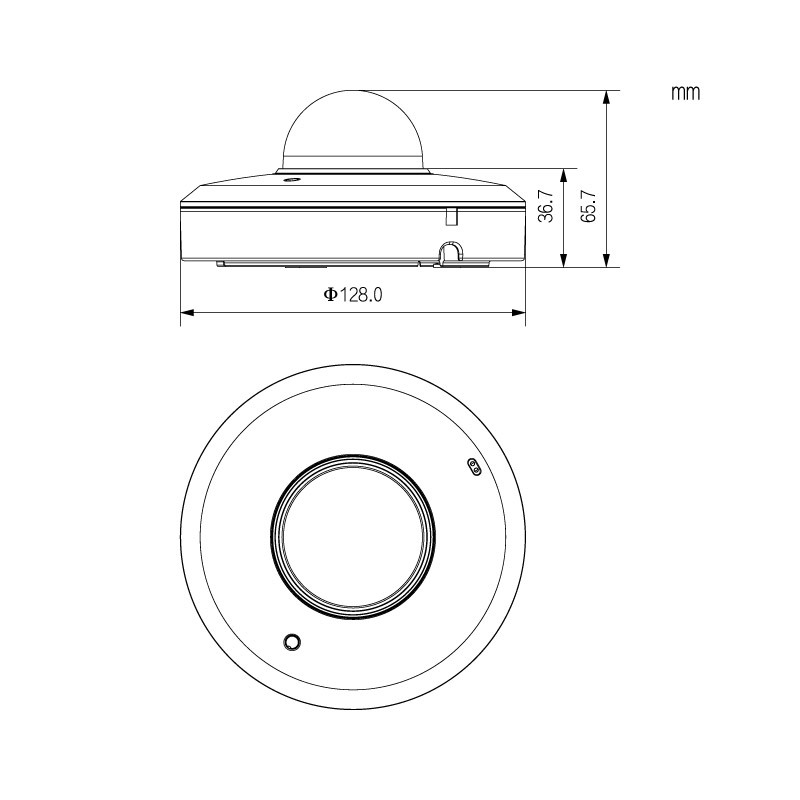

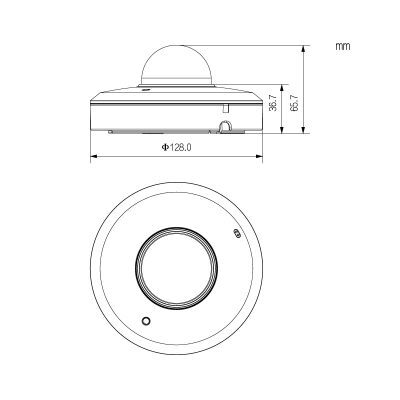

Dimensions
Ø128mm x 66mm
Net Weight
0.5kg
Other
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Warranty (Years)
4
Register for Member Pricing



Download documents from the following links:

VIP Vision Professional AI PTZ Dome Datasheet (PDF)

PTZ Camera Quick Start Guide
