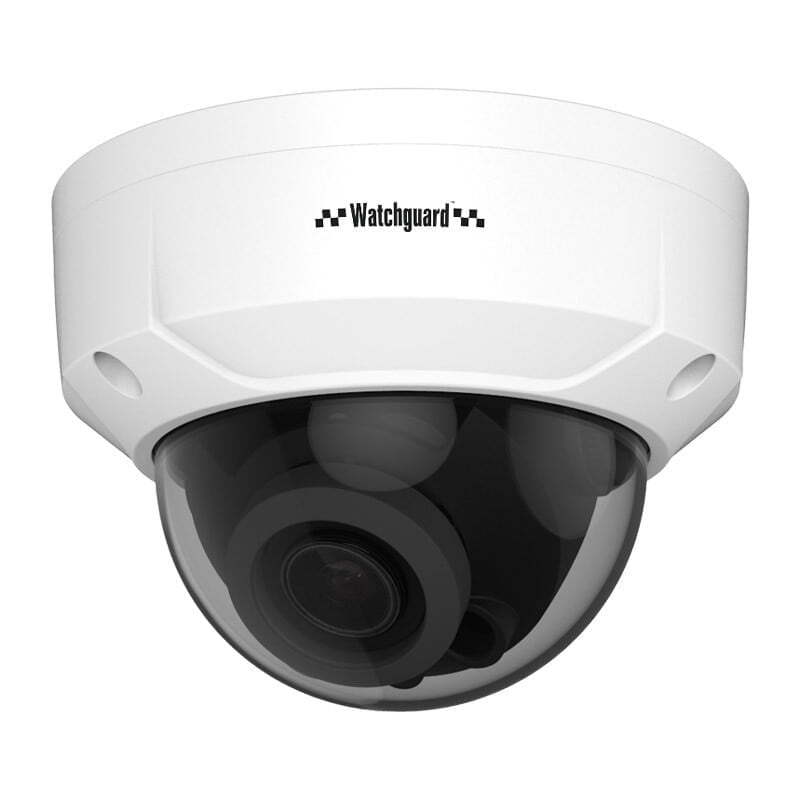

Compact Series 4.0MP Motorised Dome - VSIPC-4DIRMD
Sale!

Compact Series 4.0MP Motorised Dome – VSIPC-4DIRMD

Original price was: $150.15.Current price is: $127.05.

Compact Series 4.0MP Motorised Dome

Out of stock

SKU: VSIPC-4DIRMD Categories: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPC-4DIRMD boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:
• Stream up to 4.0MP (2560 x 1440) at 20fps
• 2.8~12mm motorised varifocal lens (94°~33°)
• Up to 30m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• Motion detection, region of interest and more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67/IK10 weather & vandal rated metal housing

Specification

Alarm Interface
N/A

Audio Interface
N/A

Bit Rate
H.265: 6 ~ 6144Kbps / H.264: 16 ~ 6144Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type
Dome

Day/Night
Auto (ICR) / Color / B&W

DORI Distance

Detect (25px/m)
66m (wide) / 200m (tele)

Observe (63px/m)
26m (wide) / 80m (tele)

Recognise (125px/m)
13m (wide) / 40m (tele)

Identify (250px/m)
7m (wide) / 20m (tele)

Dimensions
Ø122mm x 89mm

Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC

Effective Pixels
2560 (H) x 1440 (V)

ePoE
No

Ethernet
RJ-45 (10/100Base-T)

Field of View
Horizontal: 94°~33°, Vertical: 51°~19° (4x Optical Zoom)

Focus
Fixed

Frame Rate (Main)
4.0MP (1 ~ 20fps)

Frame Rate (Sub)
D1 (1 ~ 25fps)

Frame Rate (Third)
N/A

Gain Control
Auto / Manual

Housing
Metal

Image Sensor
1/3″ 4.0MP Progressive Scan CMOS

Infrared
Yes

Infrared System
2 x Infrared LED, 30m range, Auto/manual on/off control

Ingress Protection
IP67

Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Interoperability
ONVIF Profile S&G / API

IVS
Yes

Lens / Iris
2.8mm~12mm F1.8 Motorised Varifocal Lens

Lens Type
Motorised Varifocal

Lighting Compensation
BLC / HLC / Digital WDR

Max. Resolution
4.0 Megapixel

Max. User Access
10 Users / 20 Users

Min Illumination
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)

Net Weight
0.45kg

Noise Reduction
3D DNR

Operating Conditions
-30° ~ +60° C / Less than 95% RH

Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°

Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)

Power Consumption
<2.2W / 6.5W (IR On)

Power Supply
12VDC / PoE (802.3af) (Class 0)

Protocol
HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH

RAM / ROM
256MB / 16MB

Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)

RS485
N/A

S/N Ratio
> 50dB

Series
Compact Series

Streaming Method
Unicast / Multicast

Tri-Axis Mounting
Yes

Ultra Low Light Colour
No

Vandal Resistance
IK10

Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Video Interface
N/A

Weather Resistance
Yes

White Balance
Auto / Natural / Street Lamp / Outdoor / Manual

Register for Member Pricing



Download the brochure from the link below.

 Brochure
