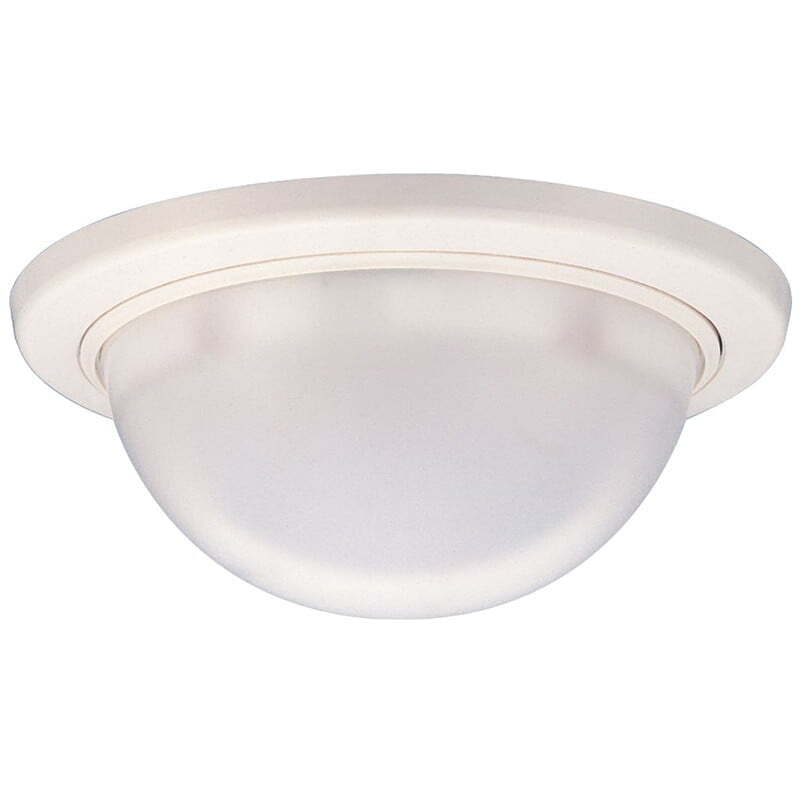

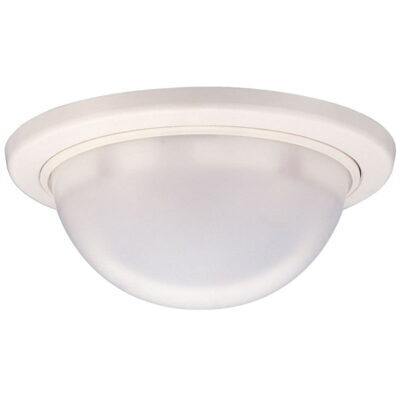

The PIR-T68R PIR Sensor from Takex is built with complete 360° infrared detection up to Ø15m to detect intruders from all directions. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal to be installed in rooms with multiple entrances.
Product Features:

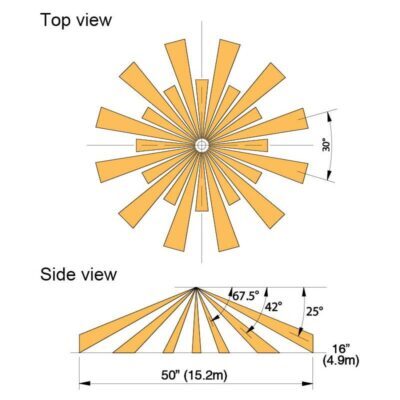

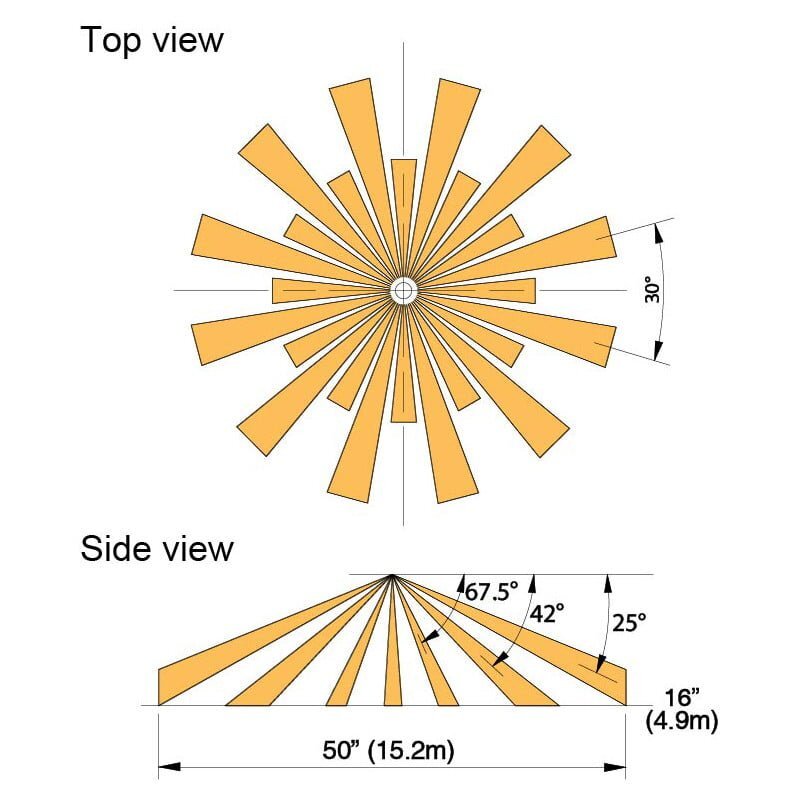

• 360° round passive infrared range up to Ø15m
• Highly adjustable infrared sensitivity – 60% / 80% / 100% / 120%
• High stability against noise and insect intrusion
• Sensitive Zones – 33 pairs
• ABS Plastic housing built for indoor environments
• Super slim and compact design – Ø120 x 47mm
• Input voltage: 10.5 ~28VDC
• Made in Japan
360° PIR Sensor
$159.00Original price was: $159.00.$124.04Current price is: $124.04.Description
The PIR-T68R PIR Sensor from Takex is built with complete 360° infrared detection up to Ø15m to detect intruders from all directions. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal to be installed in rooms with multiple entrances.
Product Features:
• 360° round passive infrared range up to Ø15m
• Highly adjustable infrared sensitivity – 60% / 80% / 100% / 120%
• High stability against noise and insect intrusion
• Sensitive Zones – 33 pairs
• ABS Plastic housing built for indoor environments
• Super slim and compact design – Ø120 x 47mm
• Input voltage: 10.5 ~28VDC
• Made in Japan
* Maximum mounting height is 4.9m (16′)
Specification
Documents
Download documents from the following links:
Takex PIR-T68R 360° PIR Sensor Datasheet (PDF)
