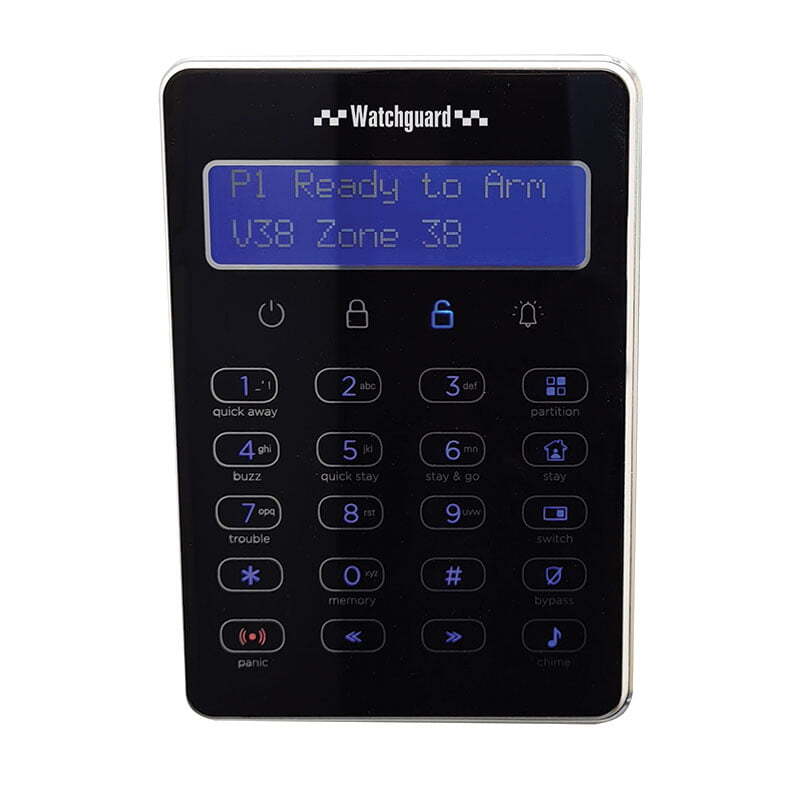

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (Black) – WGAP864PB2

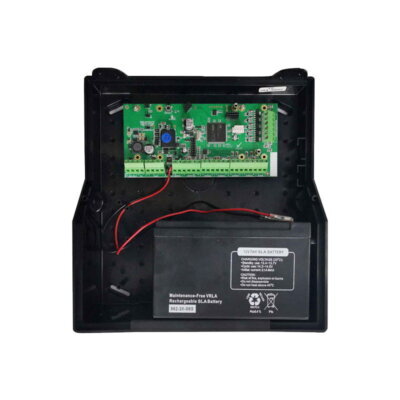

The WGAP864PB2 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has eight partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and 5 (expandable to 41) programmable outputs that may be programmed to perform various trigger/switching functions. Program via USB cable in less than 30 Seconds! USB Programming Cable Sold Separately (Model: WGAPCABLEUSB)

Product features:

• 8 programmable, end of line supervised zone inputs & 8 alarm partitions
• 5 programmable outputs on alarm panel (expandable to 41 with Wired Zone Expander module)
• Programmable loop response time
• Auto arm/disarm capability per partition & by day – program to arm/disarm at pre-determined times
• Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
• EEPROM memory retains all data in the event of a total power failure
• Dual reporting provides for duplicated reporting to two independent central base stations
• 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay
• 128 user codes
• Log capable of 1000 events
• False alarm reduction features

**Battery sold separately**
**This module uses a 24V DC power supply, previous alarm panels used a 16V AC power supply**
