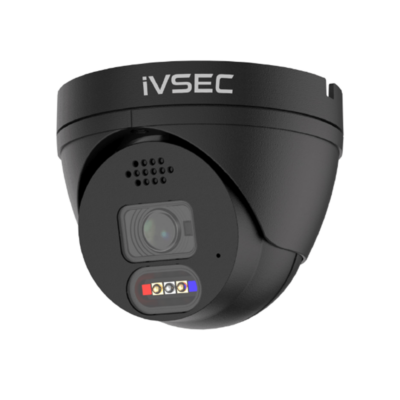

The IVSEC NC323ADX-BLK IP security camera offers an 8 Megapixel resolution combined with a fixed lens with wide field of view with black case. Includes Advanced Deterrent features -red/blue strobing lights and siren: Speak to talk through the mobile app or set off the siren full colour at night.
IR illumination enables night vision at up to 25 metres.
Camera includes a microphone and edge recording via an SD card slot.
25m IR range for night vision and also includes white light LEDs for full colour illumination (scheduled)
IP66
Vandal resistant
Black housing
3 year warranty
NC323ADX-BLK Specifications
Camera Type
Turret Dome – Black
Image Sensor
1/2.8″ Progressive CMOS
Maximum Video Resolution (Megapixels)
8
Maximum Video Resolution
3840 x 2160
Lens
2.8mm (H.FOV: 106°)
Lens Type
Fixed
Maximum Night IR Distance (M)
25
Connectors
RJ-45, DC Power Input, reset button
Video Compression
H.265+, H.265, H.264+, H.264, MJPEG
ONVIF (depends on firmware version)
ONVIF( Profile S/G/T) 21.12 or greater, Http API
Operating Environment
-35ºC to 60ºC (-31ºF-140ºF) Humidity: 20%-95% RH
Dimensions
Ø100 X 90mm
Weight
0.312
Accessories
IV2422X, IV2433X, IV2444X, IV2455X
Power Supply
Power over Ethernet (PoE) IEEE 802.3af, DC12V
Power Consumption
< 7.2W
Outdoor Use
Yes
IP Rating
IP66
Vandal Resistant
Yes
Frame Rate at Resolution
25fps
Day/Night Mode
Schedule (Time Based), Full colour (white LEDS) or Day/Night (IR LEDS
Image Enhancement
SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip,
Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
Audio Streaming
Two-way audio (microphone with a distance [up to 8m] and speaker included)
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
IVSEC Turret IP Cam, 8MP, Fixed Lens, IP66, 25m IR, Active Deterrent – Black
Guest Price – Login to see Member Pricing
$434.50Original price was: $434.50.$359.04Current price is: $359.04.Available on back-order
Description
The IVSEC NC323ADX-BLK IP security camera offers an 8 Megapixel resolution combined with a fixed lens with wide field of view with black case. Includes Advanced Deterrent features -red/blue strobing lights and siren: Speak to talk through the mobile app or set off the siren full colour at night.
IR illumination enables night vision at up to 25 metres.
Camera includes a microphone and edge recording via an SD card slot.
Black housing.
When used together with the IVSEC X series recorders, this camera will be automatically detected with Plug & Play.
Reduce installation labour and parts required by using one cable for both data and electricity with PoE (Power over Ethernet).
The IVSEC NC323ADX-BLK features an IP66 water resistant dome which means this video surveillance camera can be used both indoors and outdoors.
The NC323ADX-BLK features H.265 and H.264 video compression technology and is fully compatible with the ONVIF standard.
Key Features:
Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
Download documents from the following links:
IVNC323AXD-BLK Datasheet
DORI Distance
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
For more information on selecting a CCTV camera please see this post: Choosing the right CCTV camera for your application.
Please ask your product question below:
