Shop » Products » IP CCTV » Provision-ISR IP CCTV » IP EYE-SIGHT-V2 » 40M IR 4MP Fixed Lens Bullet – I4-340IPEN-36-G

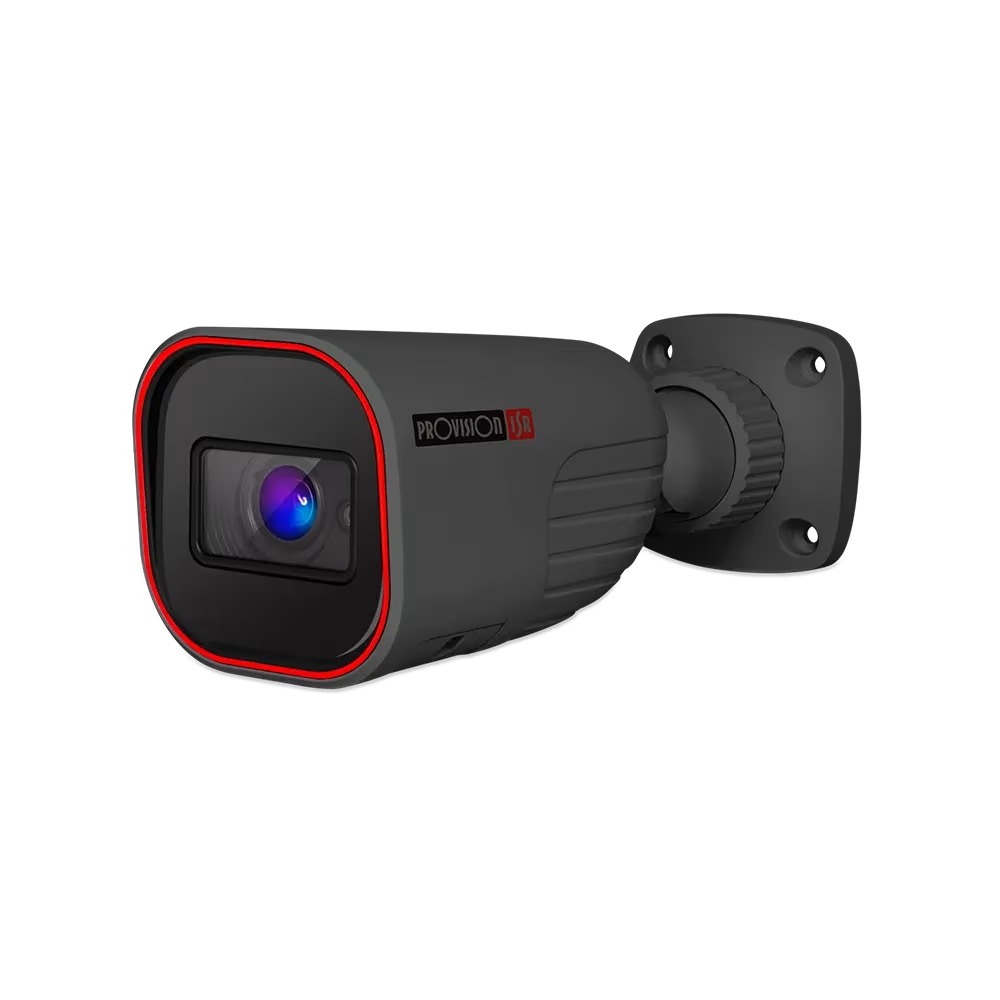

40M IR 4MP Fixed Lens Bullet - I4-340IPEN-36-G
40M IR 4MP Fixed Lens Bullet - I4-340IPEN-36-G - Image 2
40M IR 4MP Fixed Lens Bullet - I4-340IPEN-36-G - Image 3
40M IR 4MP Fixed Lens Bullet - I4-340IPEN-36-G - Image 4

40M IR 4MP Fixed Lens Bullet – I4-340IPEN-36-G

Login, Register, or Call for Price

4MP Fixed Lens Bullet Camera with IR LED and DDA2 Analytics
SKU: I4-340IPEN-36-G Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4MP Fixed Lens Bullet Camera with IR LED and DDA2 Analytics

Designed for medium-distance surveillance up to 40 meters, this 4MP bullet camera features a 3.6mm fixed lens, delivering clear and reliable monitoring for indoor and outdoor environments. Equipped with advanced analytics, including Face Detection, DDA Analytics (Detect, Distinguish, Alert), and DDA2, it enables precise object recognition, counting, and classification, reducing false alarms with customizable detection rules. The I4-340IPEN-36 offers exceptional reliability and performance, making it an ideal choice for efficient security installations

Register for Member Pricing

Made in Israel, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

I4-340IPEN-36-V4 Features

I4-340IPEN-36-G Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification Audio Exception
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF / QCIF
Frame Rate
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode***
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
3.6mm Fixed Lens (80.6°)
Iris
Fixed Iris
Lens Mount
M12 Mount

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED)
Power Supply
DC12V/~780mA / PoE/~7.4W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket-G
Dimensions
220.8×79.4×81.2mm
Weight (gross)
~650g
Hard Reset Button
Yes

Documents

I4-340IPEN-36-G

v5.x 320IPE 340IPE FL Series Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

4MP Fixed Lens Bullet Camera with IR LED and DDA2 Analytics

Register for Member Pricing

Designed for medium-distance surveillance up to 40 meters, this 4MP bullet camera features a 3.6mm fixed lens, delivering clear and reliable monitoring for indoor and outdoor environments. Equipped with advanced analytics, including Face Detection, DDA Analytics (Detect, Distinguish, Alert), and DDA2, it enables precise object recognition, counting, and classification, reducing false alarms with customizable detection rules. The I4-340IPEN-36 offers exceptional reliability and performance, making it an ideal choice for efficient security installations

Made in Israel, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

I4-340IPEN-36-V4 Features

I4-340IPEN-36-G Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification Audio Exception
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF / QCIF
Frame Rate
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode***
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
3.6mm Fixed Lens (80.6°)
Iris
Fixed Iris
Lens Mount
M12 Mount

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED)
Power Supply
DC12V/~780mA / PoE/~7.4W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket-G
Dimensions
220.8×79.4×81.2mm
Weight (gross)
~650g
Hard Reset Button
Yes
Register for Member Pricing

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
I4-340IPEN-36-G

Detect (25px/m)
73m

Observe (63px/m)
29m

Recognise (125px/m)
14.7m

Identify (250px/m)
7.3m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
