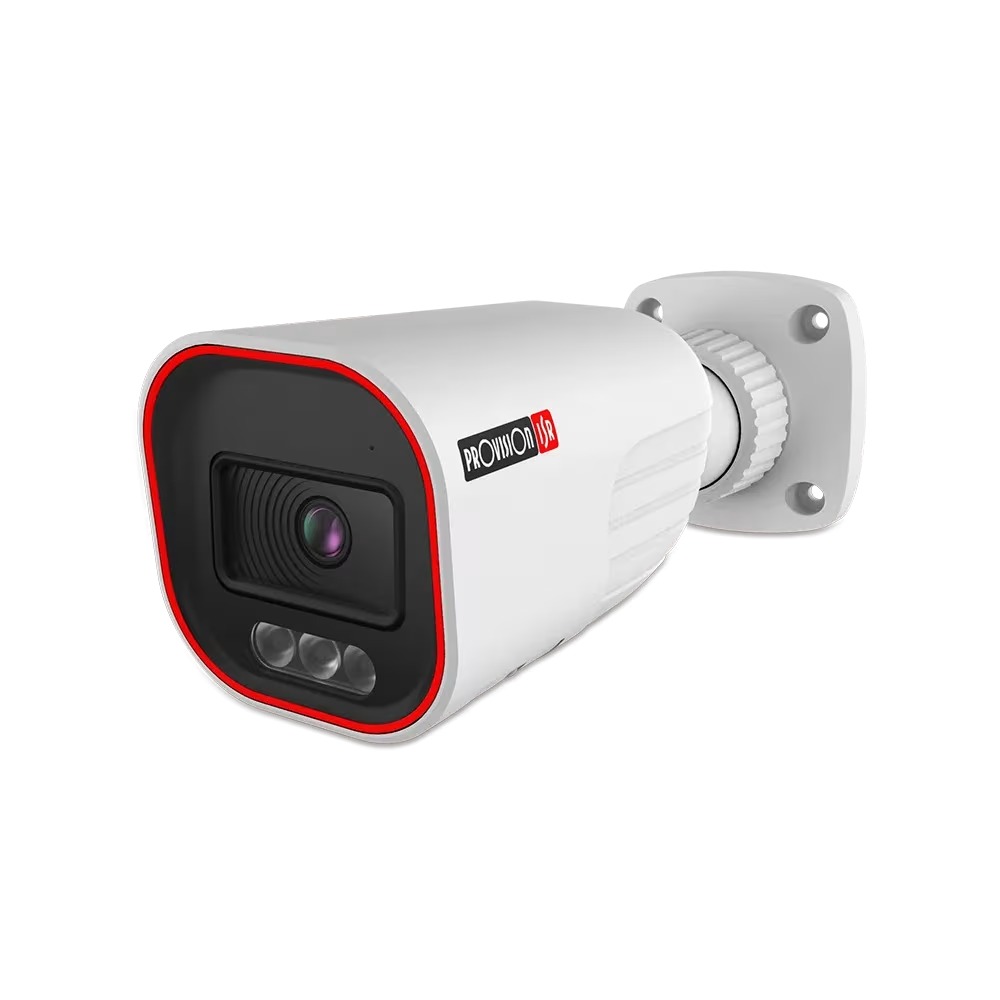

4MP Active Deterrence MVF Lens Bullet - I4-340AD-MVF
4MP Active Deterrence MVF Lens Bullet - I4-340AD-MVF - Image 2

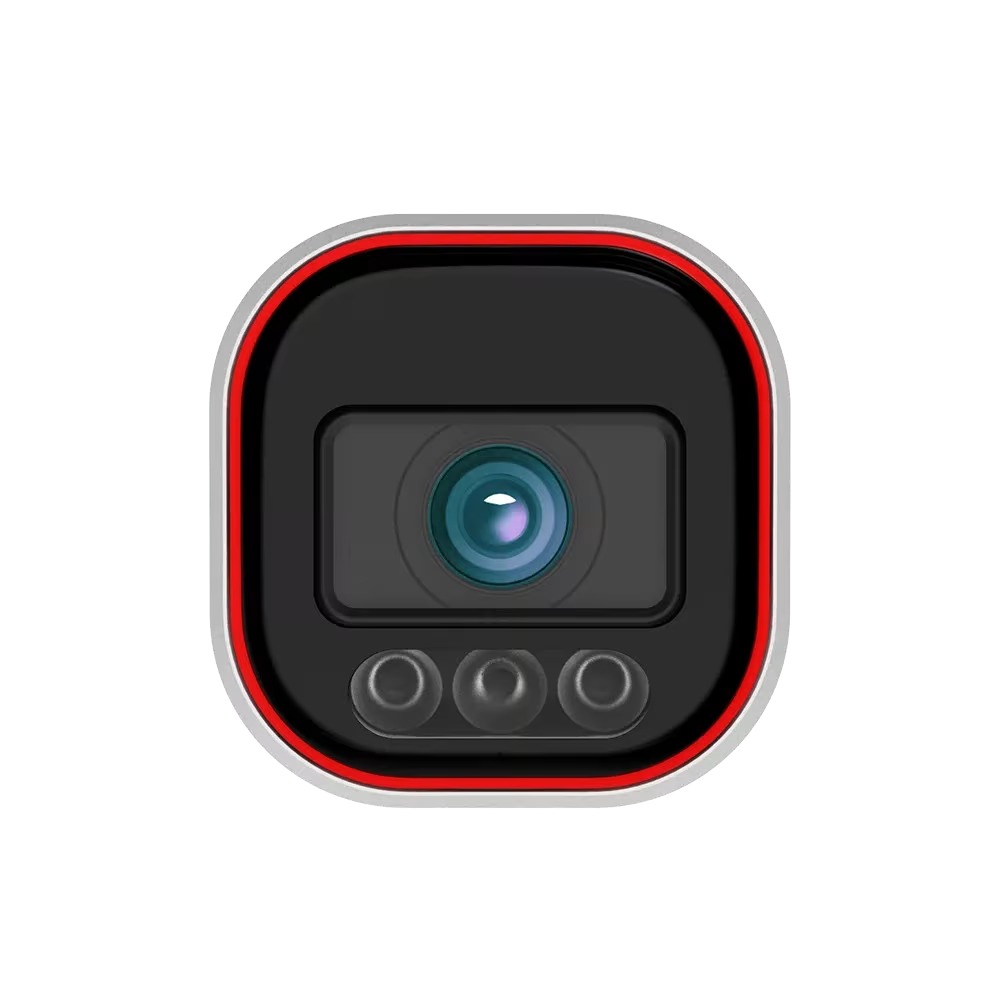

4MP Active Deterrence MVF Lens Bullet - I4-340AD-MVF - Image 3
4MP Active Deterrence MVF Lens Bullet - I4-340AD-MVF - Image 4
4MP Active Deterrence MVF Lens Bullet - I4-340AD-MVF - Image 5

4MP Active Deterrence MVF Lens Bullet – I4-340AD-MVF

Login, Register, or Call for Price

4MP Active Deterrence MVF Lens Bullet Camera with IR LED and DDA2 Analytics
SKU: I4-340AD-MVF Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4MP Active Deterrence MVF Lens Bullet Camera with IR LED and DDA2 Analytics

The I4-340AD-MVF is a 4MP bullet camera engineered for medium-range surveillance up to 40 metres, ideal for both indoor and outdoor applications. Featuring active deterrence capabilities, it employs visual and audio alerts to effectively discourage unauthorised access.

Equipped with a motorised 2.8–12mm vari-focal lens, it delivers flexible field-of-view adjustments to suit various monitoring scenarios. Leveraging DDA Analytics (Detect, Distinguish, Alert), the camera supports object recognition and intelligent detection, enabling accurate identification of potential threats.

Register for Member Pricing

With a range of customisable detection rules and triggers, the I4-340AD-MVF ensures that unwanted visitors are visibly and audibly notified, reinforcing situational awareness and security. A dependable choice for proactive perimeter protection and active site monitoring

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

features-eye-sight-cpe-motorised-4mp-40m-ad3

I4-340AD-MVF Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
No

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF / QCIF
Frame Rate
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode*
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (94.2°-29.8°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W) 59.66m(195.73ft) 2.8~12mm(T) 216.31m(709.67ft)
Recognize
2.8~12mm(W) 11.93m(39.14ft) 2.8~12mm(T) 43.26m(141.92ft)
Identify
2.8~12mm(W) 5.97m(19.58ft) 2.8~12mm(T) 21.63m(70.96ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in speaker + Audio Input
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED) Red/Blue Strobe light
Power Supply
DC12V/~780mA / PoE/~7.4W
Protection Rate
Water Proof: IP66
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket

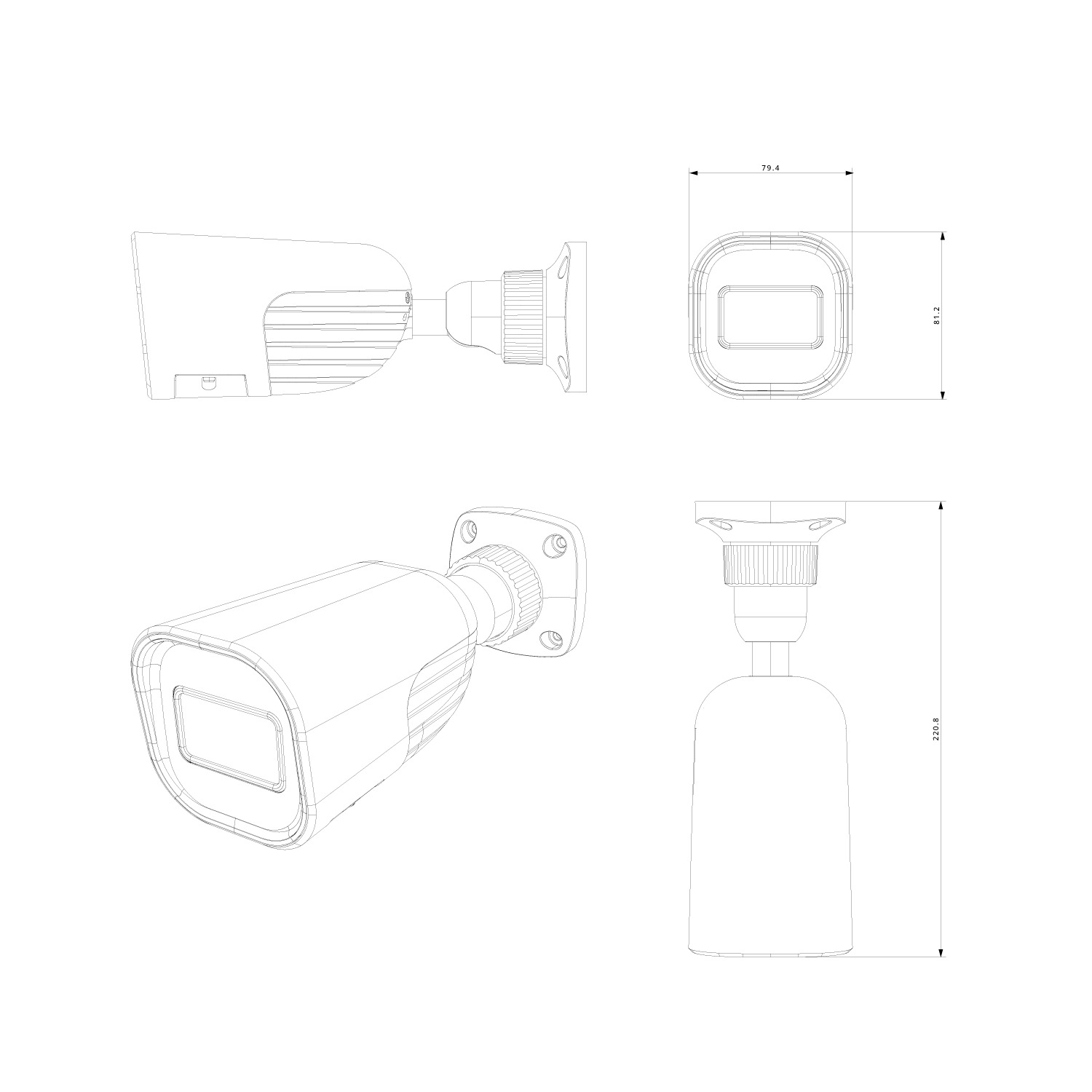

Dimensions
220.8×79.4×81.2mm
Weight (gross)
~650g
Hard Reset Button
Yes

Documents

I4-340AD-MVF Datasheet

Active Deterrence Series User Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

4MP Active Deterrence MVF Lens Bullet Camera with IR LED and DDA2 Analytics

The I4-340AD-MVF is a 4MP bullet camera engineered for medium-range surveillance up to 40 metres, ideal for both indoor and outdoor applications. Featuring active deterrence capabilities, it employs visual and audio alerts to effectively discourage unauthorised access.

Register for Member Pricing

Equipped with a motorised 2.8–12mm vari-focal lens, it delivers flexible field-of-view adjustments to suit various monitoring scenarios. Leveraging DDA Analytics (Detect, Distinguish, Alert), the camera supports object recognition and intelligent detection, enabling accurate identification of potential threats.

With a range of customisable detection rules and triggers, the I4-340AD-MVF ensures that unwanted visitors are visibly and audibly notified, reinforcing situational awareness and security. A dependable choice for proactive perimeter protection and active site monitoring

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

features-eye-sight-cpe-motorised-4mp-40m-ad3

I4-340AD-MVF Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
No

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area) AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes
Metadata
Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type

Compression

Resolution
4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF / QCIF
Frame Rate
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode*
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (94.2°-29.8°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W) 59.66m(195.73ft) 2.8~12mm(T) 216.31m(709.67ft)
Recognize
2.8~12mm(W) 11.93m(39.14ft) 2.8~12mm(T) 43.26m(141.92ft)
Identify
2.8~12mm(W) 5.97m(19.58ft) 2.8~12mm(T) 21.63m(70.96ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in speaker + Audio Input
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED) Red/Blue Strobe light
Power Supply
DC12V/~780mA / PoE/~7.4W
Protection Rate
Water Proof: IP66
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
220.8×79.4×81.2mm
Weight (gross)
~650g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
I4-340IPEN-MVF-V4

Detect (25px/m)
62.9m (Wide)
198m (Tele)

Observe (63px/m)
24.9m (Wide)
78m (Tele)

Recognise (125px/m)
12.5m (Wide)
39m (Tele)

Identify (250px/m)
6.2m (Wide)
19.8 (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.
