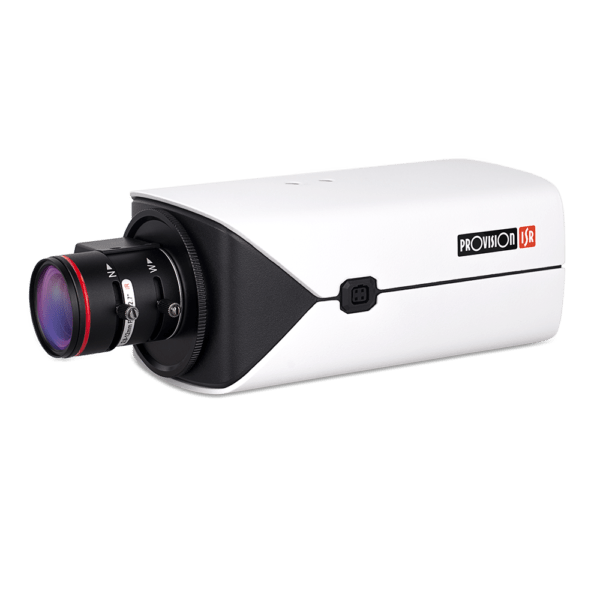

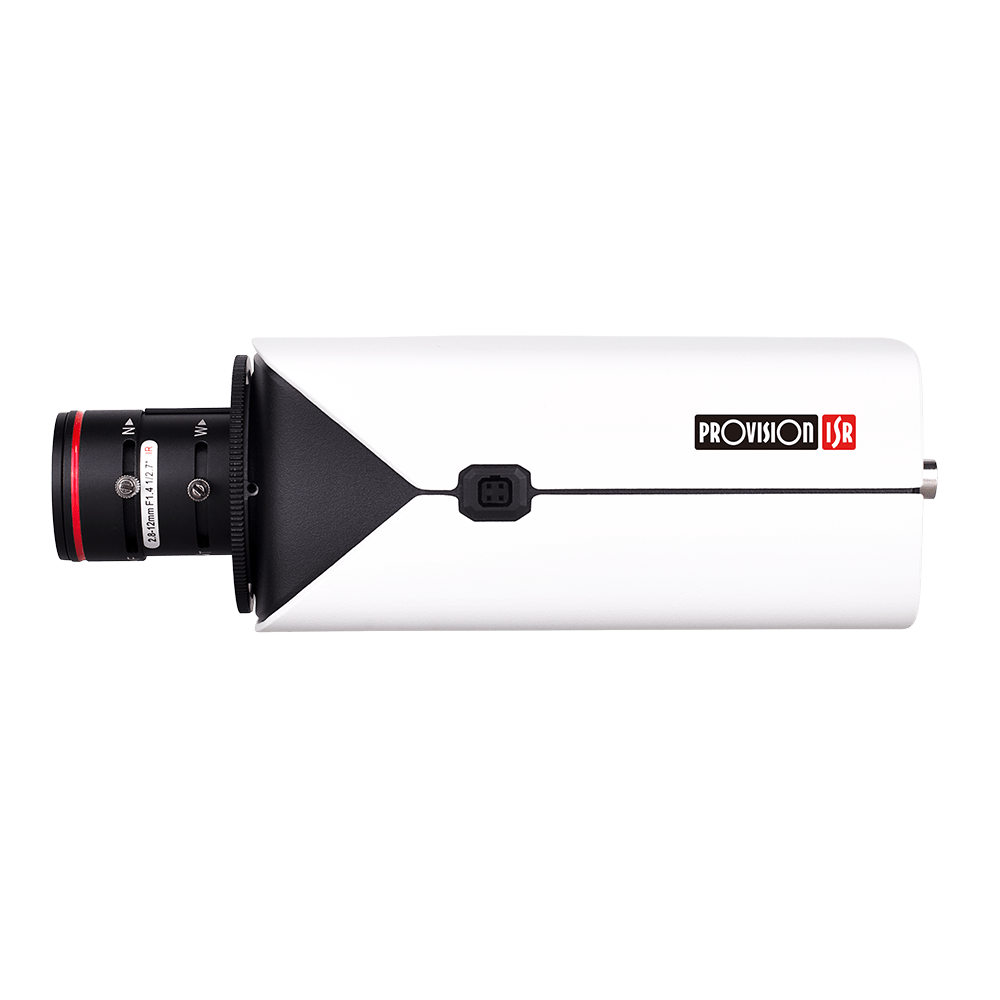

Box Camera 4MP CS Mount - BX-341-IPE
Box Camera 4MP CS Mount - BX-341-IPE
Box Camera 4MP CS Mount - BX-341-IPE
Box Camera 2MP - BX-321FR - Image 4
Box Camera 2MP - BX-321FR - Image 5

Box Camera 2MP – BX-321FR

Login, Register, or Call for Price

2MP IP Camera • Eye-Sight v2 Series
SKU: BX-321FR Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP No Lens Box Camera with Face Recognition Analytics

Designed for specialised facial recognition applications, this 2MP box camera delivers accurate face detection and recognition for attendance control, tracking, VIP identification, and more. Powered by an advanced algorithm and strong processor, the BX-321FR provides high-speed, reliable performance, making it an ideal solution for environments requiring precise identity verification

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

features-smart-sight-2mp

BX-321FR Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
No

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
Day: 0.0026lux / Night: 0.001lux (@F1.4, AGC On)

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI: Face Detection, Face Recognition
Motion Detection
Yes
Face database
Up to 10000 faces Add face via WEB or VMS
Triggers
Alarm output for allow/block lists
Recognition per second
Up to 10 face detections and 3 face recognitions per second
Recognition distance
Recommended distance: Depends on lens

Compression

Resolution
1080P (1920×1080), 720P (1280×720), D1, CIF ,480×240
Frame Rate
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Sub-Stream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 12Mbps@H.265 / 128Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
N/A
Iris
Depends on Lens
Lens Mount
CS Mount

Network

User Access
Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
Network Protocol
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTPS
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input + Audio output
Alarm
2Ch Input, 2Ch Output
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
CVBS (BNCx1)

Housing

PoE
Yes
Illumination
N/A
Power Supply
DC12V~320mA / AC24V~160mA / PoE~6W
Protection Rate
None
Work Environment
-10C°~50C°, 10%~90% Humidity
Bracket
No

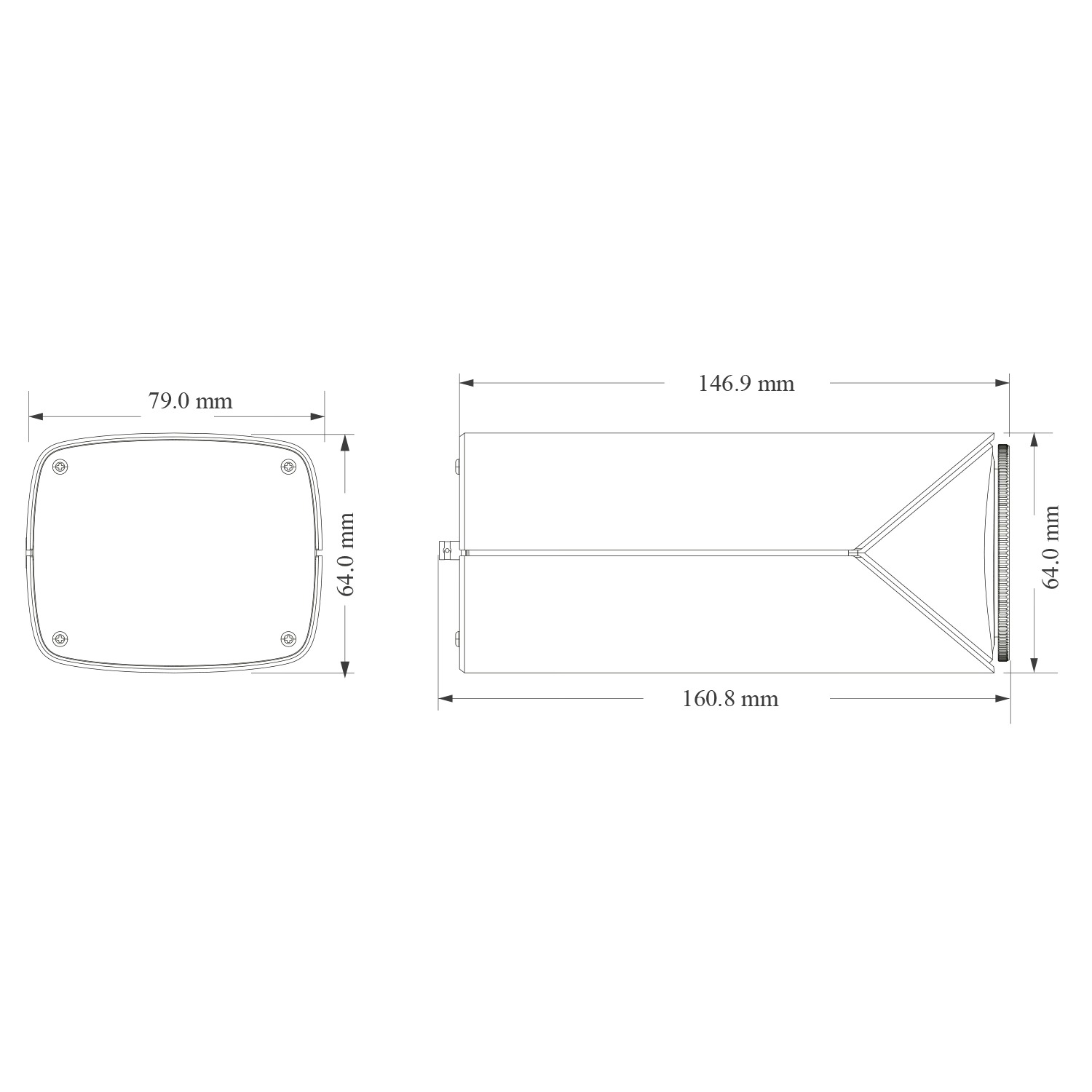

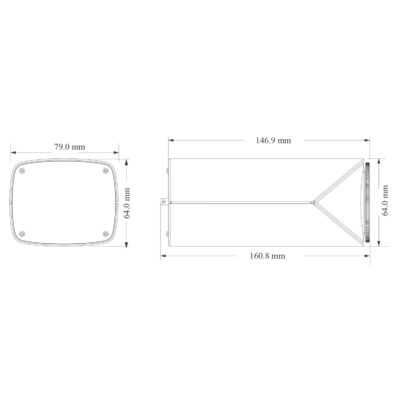

Dimensions
79×153×64mm
Weight (gross)
640g
Hard Reset Button
Yes

Documents

BX-321FR Datasheet

FR Smart Sight Series Manual
