40M 4MP IR/White LED Motorized Vari-Focal Lens Dome - DH-340IPSN-MVF-G
40M 4MP IR/White LED Motorized Vari-Focal Lens Dome - DH-340IPSN-MVF-G - Image 2
40M 4MP IR/White LED Motorized Vari-Focal Lens Dome - DH-340IPSN-MVF-G - Image 3
40M 4MP IR/White LED Motorized Vari-Focal Lens Dome - DH-340IPSN-MVF-G - Image 4

40M 4MP IR/White LED Motorized Vari-Focal Lens Dome – DH-340IPSN-MVF-G

Login, Register, or Call for Price

Grey 4MP MVF (motorised) Lens Dome/Turret Camera with Hybrid LED
SKU: DH-340IPSN-MVF-G Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4MP MVF Lens Dome/Turret Camera with Hybrid LED in Grey

Designed for long-distance surveillance up to 40 meters, this 4MP dome/turret camera features a motorized 2.8-12mm vari-focal lens, providing adaptable coverage for diverse security needs. Its hybrid technology activates a white LED, ensuring full-color imaging in dark environments when human presence is detected. Advanced DDA Analytics (Detect, Distinguish, Alert) delivers precise human and vehicle recognition, minimizing false alarms through customizable detection rules and triggers. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, offering real-time threat prevention against cyber risks. With exceptional reliability, performance, and affordability, the DH-340IPSN-MVF-G is an ideal solution for efficient IP installations.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

4mp-hybrid-motorised-cpe-features

DH-340IPSN-MVF-G Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.04lux (@F4.0, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / 1MP (1280×720) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~30fps) / QVGA/D1/CIF (1~30fps) Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 5Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (89-31°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 64m(210ft) – 2.8~12mm(T): 189m(619ft)
Recognize
2.8~12mm(W): 13m(42ft) – 2.8~12mm(T): 38m(124ft)
Identify
2.8~12mm(W): 6m(20ft) – 2.8~12mm(T): 19m(62ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED) 30m (1 High-Power White LED)
Power Supply
DC12V/~600mA / PoE/~9W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket

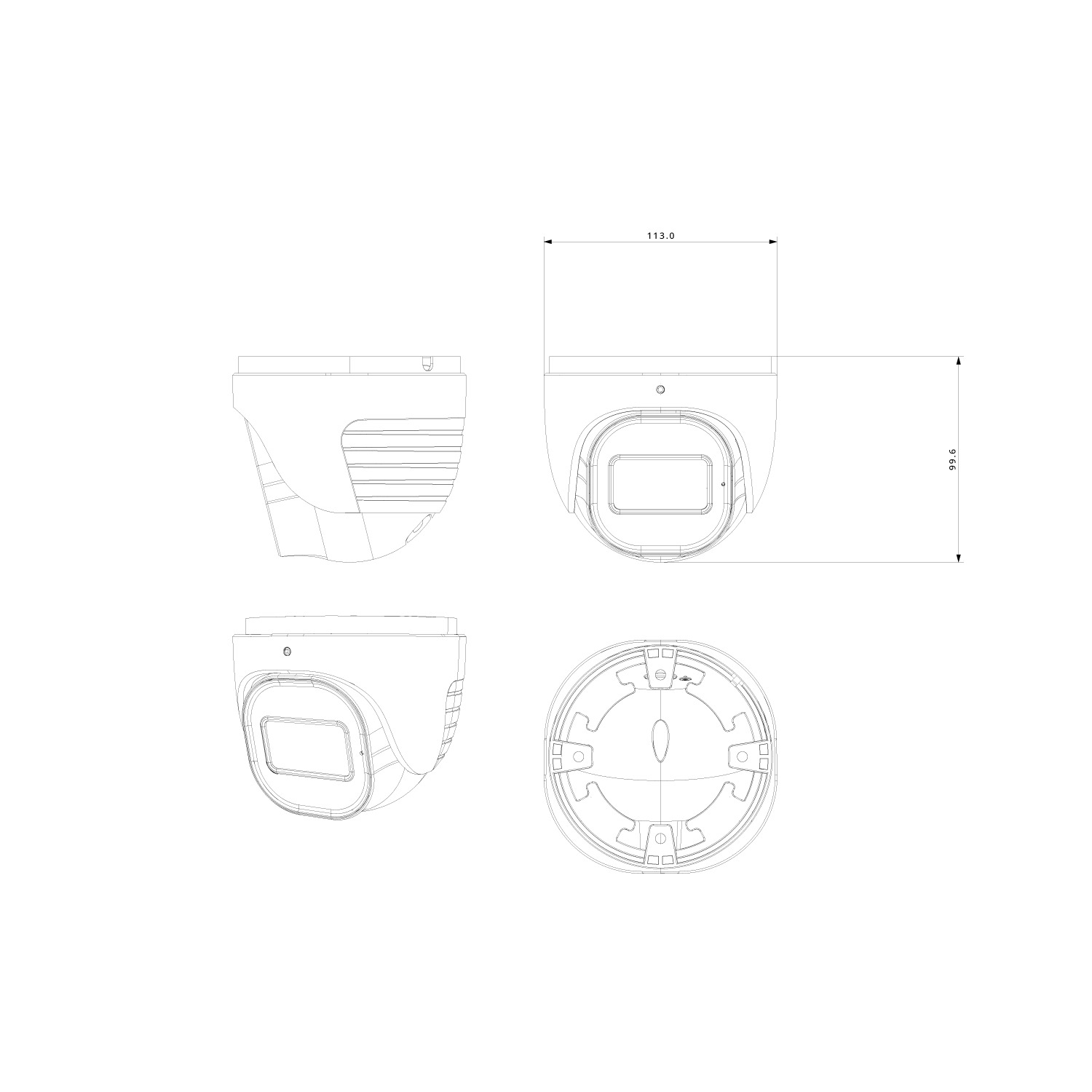

Dimensions
Ø113mm×99.6mm
Weight (gross)
~730g
Hard Reset Button
Yes

Documents

DH-340IPSN-MVF Datasheet

v5.x 320IPE 340IPE 380IPE VF Series Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

4MP MVF Lens Dome/Turret Camera with Hybrid LED in Grey

Designed for long-distance surveillance up to 40 meters, this 4MP dome/turret camera features a motorized 2.8-12mm vari-focal lens, providing adaptable coverage for diverse security needs. Its hybrid technology activates a white LED, ensuring full-color imaging in dark environments when human presence is detected. Advanced DDA Analytics (Detect, Distinguish, Alert) delivers precise human and vehicle recognition, minimizing false alarms through customizable detection rules and triggers. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, offering real-time threat prevention against cyber risks. With exceptional reliability, performance, and affordability, the DH-340IPSN-MVF-G is an ideal solution for efficient IP installations.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

4mp-hybrid-motorised-cpe-features

DH-340IPSN-MVF-G Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.04lux (@F4.0, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / 1MP (1280×720) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~30fps) / QVGA/D1/CIF (1~30fps) Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 5Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (89-31°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 64m(210ft) – 2.8~12mm(T): 189m(619ft)
Recognize
2.8~12mm(W): 13m(42ft) – 2.8~12mm(T): 38m(124ft)
Identify
2.8~12mm(W): 6m(20ft) – 2.8~12mm(T): 19m(62ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED) 30m (1 High-Power White LED)
Power Supply
DC12V/~600mA / PoE/~9W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~730g
Hard Reset Button
Yes
Register for Member Pricing

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DH-340IPSN-MVF-G

Detect (25px/m)
65m (Wide)
189m (Tele)

Observe (63px/m)
26m (Wide)
75m (Tele)

Recognise (125px/m)
13m (Wide)
37m (Tele)

Identify (250px/m)
6.6m (Wide)
18.9m (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.
