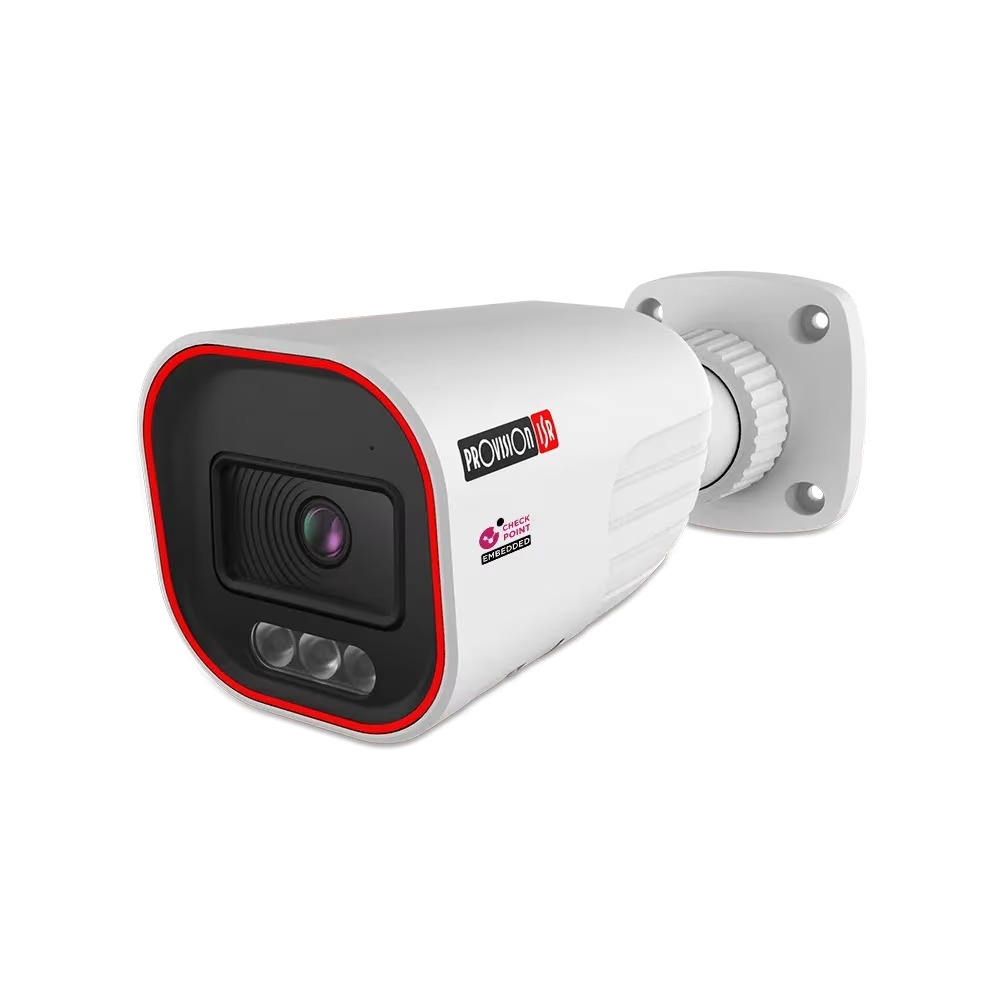

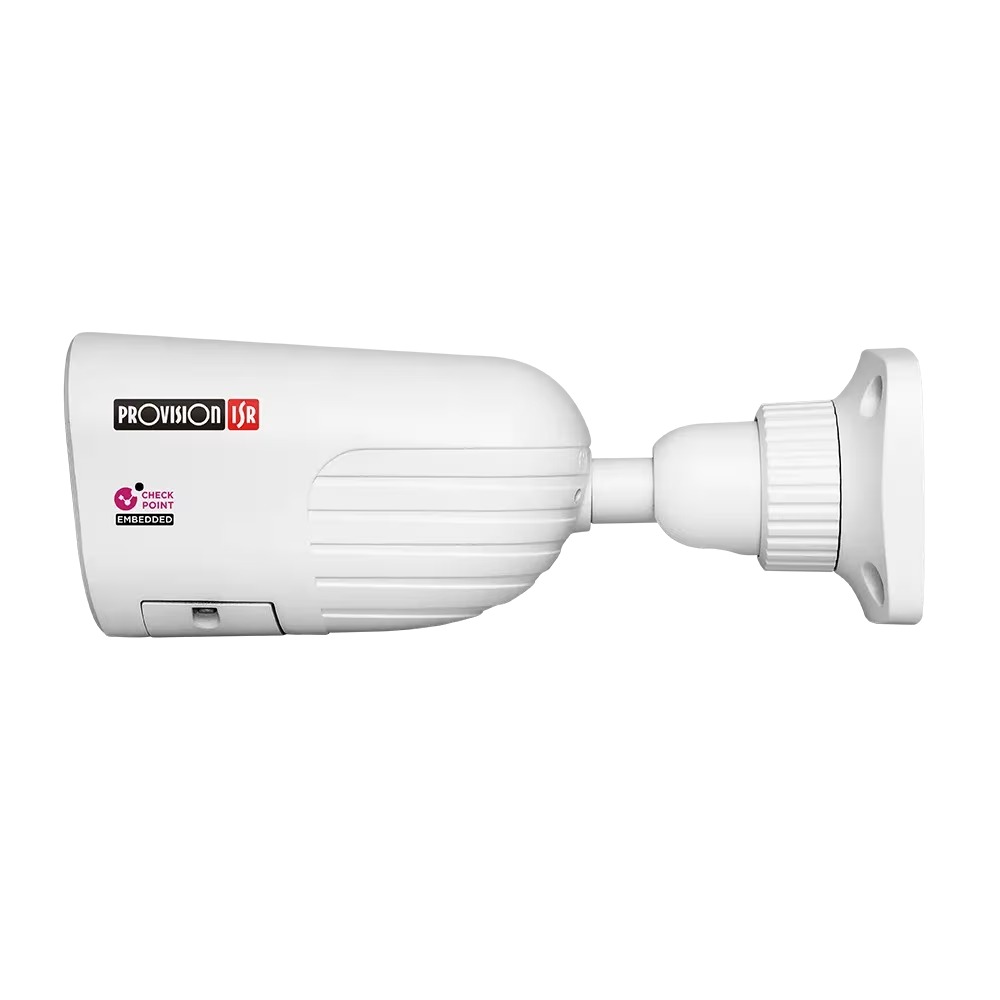

40M 8MP IR / White LED Motorised Vari-Focal Bullet - BMH-380IPSN-MVF8
40M 8MP IR / White LED Motorised Vari-Focal Bullet - BMH-380IPSN-MVF8 - Image 2
40M 8MP IR / White LED Motorised Vari-Focal Bullet - BMH-380IPSN-MVF8 - Image 3
40M 8MP IR / White LED Motorised Vari-Focal Bullet - BMH-380IPSN-MVF8 - Image 4
40M 8MP IR / White LED Motorised Vari-Focal Bullet - BMH-380IPSN-MVF8 - Image 5

40M 8MP IR / White LED Motorised Vari-Focal Bullet – BMH-380IPSN-MVF8

Login, Register, or Call for Price

40m Hybrid night vision 8MP Motorized Vari-Focal Lens Medium Bullet Camera
SKU: BMH-380IPSN-MVF Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

8MP MVF Lens Bullet Camera with Hybrid LED

Engineered for long-range surveillance up to 40 meters, this 8MP bullet camera features a motorized 2.8-12mm vari-focal lens, offering flexible coverage for diverse security applications. Its hybrid technology activates a white LED, delivering full-color imaging in low-light conditions upon human detection. Equipped with advanced DDA Analytics (Detect, Distinguish, Alert), it ensures precise human and vehicle recognition, minimizing false alarms through customizable detection rules and triggers. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, providing real-time cybersecurity protection against evolving threats. The BMH-380IPSN-MVF offers exceptional performance, reliability, and affordability, making it an ideal choice for efficient IP installations

8mp-hybrid-motorised-cpe-features

BMH-380IPSN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.02lux / Night: 0.02lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
8MP (3840×2160) / 6MP (3200×1800) / 4MP (2688×1520) / 2MP (1920×1080) / 1MP (1280×720) / D1 (704×576) / VGA (640×480) / 480×240 /CIF (352×288)
Frame Rate
1-20FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 8MP (3840×2160) (1~20fps) / 6MP (3200×1800) / 4MP (2688×1520) / 2MP (1~30fps) Substream: 1MP/QVGA/360p/D1/CIF (1~30fps) Third Stream: 1MP/360p/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 512Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°-33°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 88m(288ft) – 2.8~12mm(T): 277m(908ft)
Recognize
2.8~12mm(W): 17m(56ft) – 2.8~12mm(T): 55m(180ft)
Identify
2.8~12mm(W): 8m(27ft) – 2.8~12mm(T): 28m(91ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, FTPS, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED) 30m (1 High-Power White LED)
Power Supply
DC12V/~800mA / PoE/~11.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
220.8×79.4×81.2mm
Weight (gross)
~710g
Hard Reset Button
Yes
Register for Member Pricing

Documents

BMH-380IPSN-MVF Datasheet

320IPS 340IPS 380IPS S-Series v2 NDAA Manual (All Models)

Software:

Register for Member Pricing

Ossia Video Player

Latest VMS Version

IP Tool Archive

Register for Member Pricing

8MP MVF Lens Bullet Camera with Hybrid LED

Engineered for long-range surveillance up to 40 meters, this 8MP bullet camera features a motorized 2.8-12mm vari-focal lens, offering flexible coverage for diverse security applications. Its hybrid technology activates a white LED, delivering full-color imaging in low-light conditions upon human detection. Equipped with advanced DDA Analytics (Detect, Distinguish, Alert), it ensures precise human and vehicle recognition, minimizing false alarms through customizable detection rules and triggers. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, providing real-time cybersecurity protection against evolving threats. The BMH-380IPSN-MVF offers exceptional performance, reliability, and affordability, making it an ideal choice for efficient IP installations

8mp-hybrid-motorised-cpe-features

BMH-380IPSN-MVF Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.02lux / Night: 0.02lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
8MP (3840×2160) / 6MP (3200×1800) / 4MP (2688×1520) / 2MP (1920×1080) / 1MP (1280×720) / D1 (704×576) / VGA (640×480) / 480×240 /CIF (352×288)
Frame Rate
1-20FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 8MP (3840×2160) (1~20fps) / 6MP (3200×1800) / 4MP (2688×1520) / 2MP (1~30fps) Substream: 1MP/QVGA/360p/D1/CIF (1~30fps) Third Stream: 1MP/360p/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 512Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°-33°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 88m(288ft) – 2.8~12mm(T): 277m(908ft)
Recognize
2.8~12mm(W): 17m(56ft) – 2.8~12mm(T): 55m(180ft)
Identify
2.8~12mm(W): 8m(27ft) – 2.8~12mm(T): 28m(91ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, FTPS, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (2 High-Power IR LED) 30m (1 High-Power White LED)
Power Supply
DC12V/~800mA / PoE/~11.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
220.8×79.4×81.2mm
Weight (gross)
~710g
Hard Reset Button
Yes
Register for Member Pricing

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
BMH-380IPSN-MVF

Detect (25px/m)
91m (Wide)
266m (Tele)

Observe (63px/m)
36m (Wide)
105m (Tele)

Recognise (125px/m)
18m (Wide)
53m (Tele)

Identify (250px/m)
9m (Wide)
26m (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.

Register for Member Pricing
