4MP Fixed Lens Dome Cam, Hybrid LED - DAH-340IPSN-28
4MP Fixed Lens Dome Cam, Hybrid LED - DAH-340IPSN-28 - Image 2

4MP Fixed Lens Dome Cam, Hybrid LED – DAH-340IPSN-28

Login, Register, or Call for Price

Equipped with a 2.8 fix lens, this 4MP anti-vandal camera is designed for short-distance surveillance (up to 20m) in indoor and outdoor scenarios featuring vandal-proof IK10 protection, which makes it extremely hard to sabotage.

SKU: DAH-340IPSN-28 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4MP Fixed Lens Dome Camera with Hybrid LED

Engineered for short-range surveillance up to 20 meters, this 4MP anti-vandal dome camera features IK10-rated vandal-proof protection, ensuring resilience against tampering and physical damage. Its hybrid technology activates a white LED, delivering full-color imaging in dark environments upon human detection. Advanced DDA Analytics (Detect, Distinguish, Alert) enables precise human and vehicle recognition, supporting various detection rules to minimize false alarms. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, offering real-time cybersecurity protection against evolving threats. With exceptional reliability, performance, and affordability, the DAH-340IPSN-28 is an ideal choice for secure and efficient IP installations

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

4mp-hybrid-fixed-cpe-ik10-features

DAH-340IPSN-28 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / 1MP (1280×720) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~30fps) / QVGA/D1/CIF (1~30fps) Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 5Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (93°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
62m(203ft)
Recognize
12m(40ft)
Identify
6m(20ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply
DC12V/~400mA / PoE/~6W
Protection Rate
Water Proof: IP67, Vandal Proof: IK10
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket

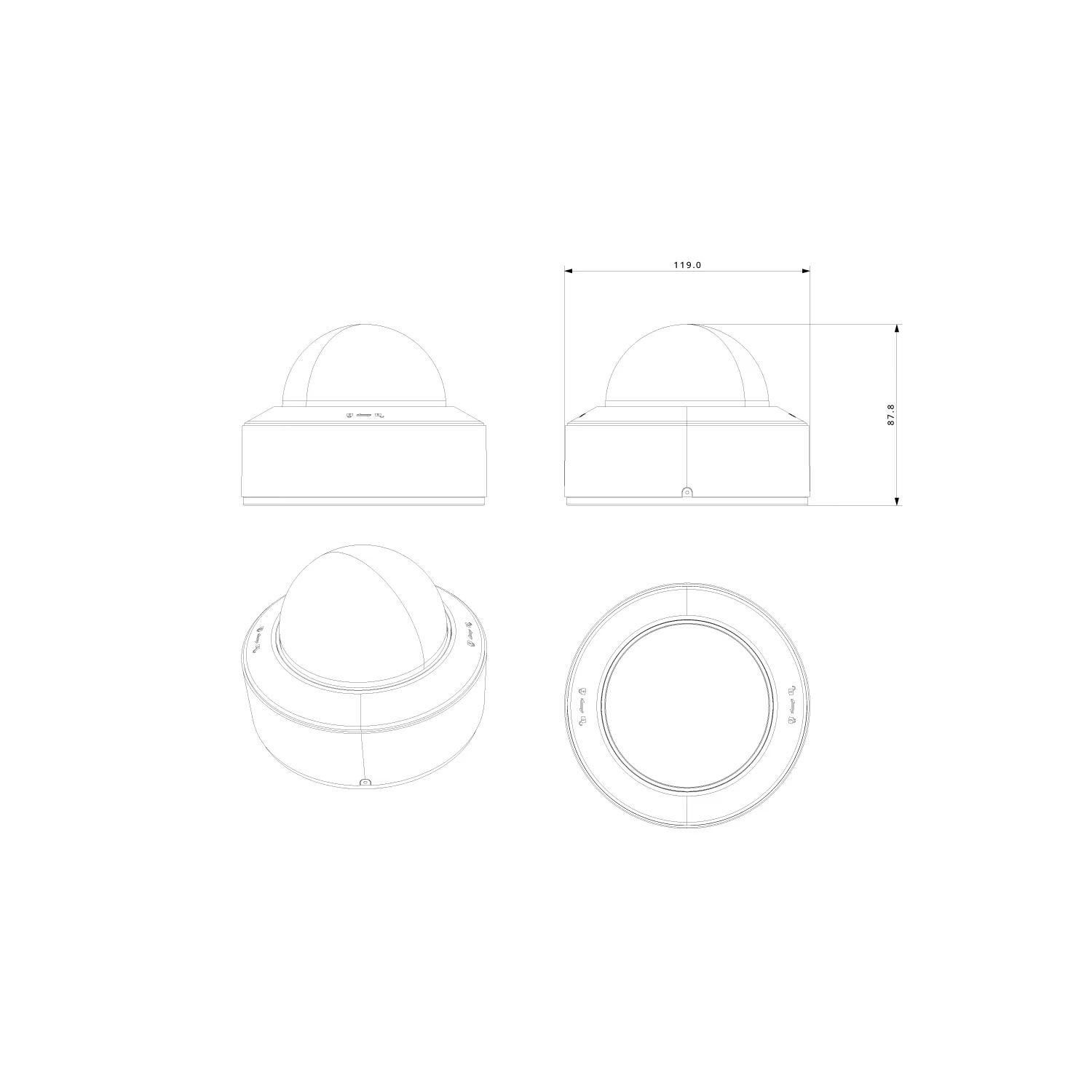

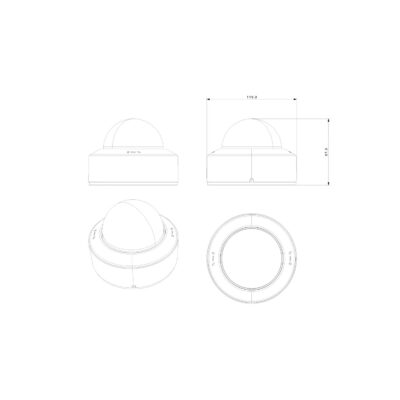

Dimensions
Ø119×87.8mm
Weight (gross)
~620g
Hard Reset Button
Yes
Register for Member Pricing

Documents

BMH-340IPSN-28 Datasheet

v5.x 320IPE 340IPE 380IPE VF Series Manual

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

4MP Fixed Lens Dome Camera with Hybrid LED

Register for Member Pricing

Engineered for short-range surveillance up to 20 meters, this 4MP anti-vandal dome camera features IK10-rated vandal-proof protection, ensuring resilience against tampering and physical damage. Its hybrid technology activates a white LED, delivering full-color imaging in dark environments upon human detection. Advanced DDA Analytics (Detect, Distinguish, Alert) enables precise human and vehicle recognition, supporting various detection rules to minimize false alarms. Fully NDAA-compliant, it integrates Check Point Quantum IoT Nano security, offering real-time cybersecurity protection against evolving threats. With exceptional reliability, performance, and affordability, the DAH-340IPSN-28 is an ideal choice for secure and efficient IP installations

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

4mp-hybrid-fixed-cpe-ik10-features

DAH-340IPSN-28 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2560×1440
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / 1MP (1280×720) / D1 / QVGA /CIF
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~30fps) / QVGA/D1/CIF (1~30fps) Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 5Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (93°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
62m(203ft)
Recognize
12m(40ft)
Identify
6m(20ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply
DC12V/~400mA / PoE/~6W
Protection Rate
Water Proof: IP67, Vandal Proof: IK10
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø119×87.8mm
Weight (gross)
~620g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DAH-340IPSN-28

Detect (25px/m)
62m

Observe (63px/m)
24m

Recognise (125px/m)
12m

Identify (250px/m)
6m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
