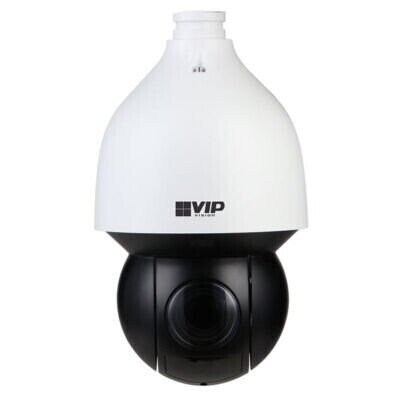

Professional AI Series 8.0MP 25x Zoom PTZ Dome v2

Original price was: $2,139.50.Current price is: $1,608.95.

Register for Member Pricing

4 Interest Free Payments of $402.24
Professional AI Series 8.0MP 25x Zoom PTZ Dome v2

SKU: VSIPPTZ-8IRP-I2 Categories: , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPPTZ-8IRP-I2 offers a versatile surveillance experience, ensuring all areas are covered with up to 25x optical zoom, auto-tracking and fast endless 360° panning. Experience impressive AI powered video analytics and filter false alarms with AI face detection and AI Perimeter Protection technology, providing meaningful video event notifications in real-time.

Camera features:
Stream up to 4K Ultra HD (3840 x 2160) at 25fps
25x optical zoom lens (61.6°~3.6° viewing angles)
Low light colour performance at 0.005lx; 150m infrared
Endless 360° panning and -15° ~ 90° tilt adjustable
MicroSD card slot for edge recording applications
Perimeter Protection to identify people & vehicles
Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
Power by PoE+ (802.3at) or 24VAC
IP67 weather rated, lightweight dome housing

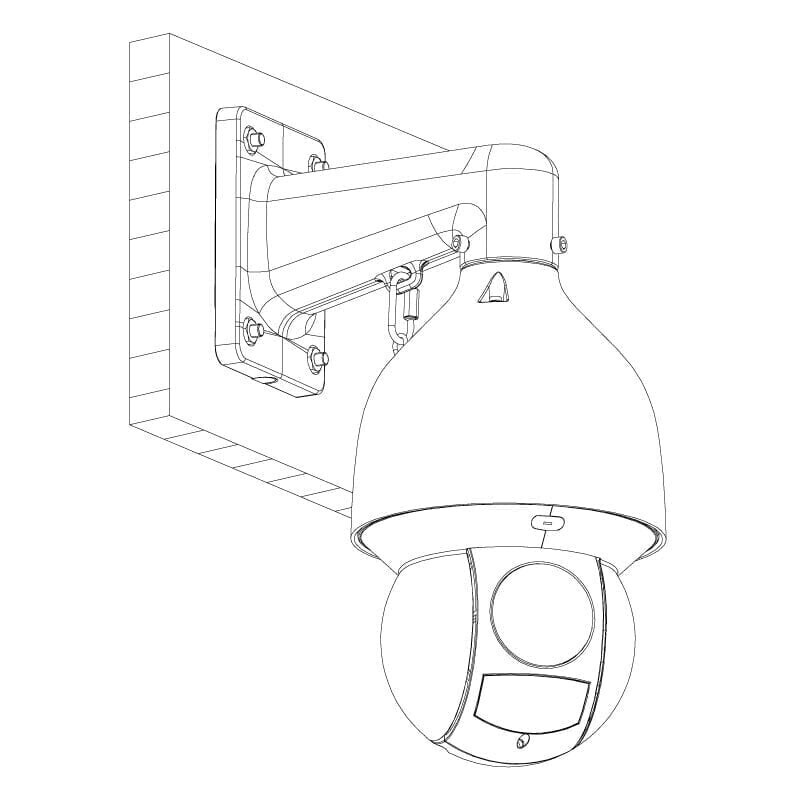

Includes wall mount bracket & 24VAC/3A PSU.

Specifications

Camera
Image Sensor
1/1.8’’ 8.0MP Starvis™ CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.005 Lux/F1.6 (Colour), 0.0005 Lux/ F1.6 (B/W)/, 0 Lux (IR Light On)
S/N Ratio
N/A
Infrared System
4 x Infrared LED, 150m range, Zoom Prio/Auto/Manual/Smart IR On/Off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5.4mm ~ 135mm F1.6 ~ F4.0 Motorised Lens
Field of View
61.6° ~ 3.6° (H), 35.7°~ 2° (V), 66.6 ~4 ° (D) (25x Optical Zoom)
Focus
Auto/Semi-Auto/Manual / 0.5m ~ 7m Min. Focus Distance
DORI
Detect (25px/m)
2700m
Observe (63px/m)
1066m
Recognise (125px/m)
540m
Identify (250px/m)
270m
PTZ
Pan / Tilt Range
Pan: 0° ~ 360° (endless) / Tilt: -15° ~ 90° / Auto Flip 180°
PTZ Speed
Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, 5 scanning, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~25fps)
Frame Rate (Sub)
D1(1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H /MJPEG
Bit Rate
H.265/H.264: 32kbps ~ 8192kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural light / Street lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D DNR
Picture Control
Flip 0°/180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
N/A
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Auto Tracking
Support
Metadata
Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Event Triggers
Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas, and up to 8 areas in the same view
Image Stabilisation
Support
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input / 1 Output / Compression: G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Alarm Interface
2 Inputs / 1 Output
RS485
N/A
Edge Storage
FTP; Micro SD card (256G); P2P
Interoperability
ONVIF Profile S&G&T; CGI
Environmental
Power Supply
24VAC/3A (±25%) / PoE+ (802.3at)
Power Consumption
<11W / <20W (IR on)
Operating Conditions
-40° ~ +70° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: -15° ~ 90°
ePoE
N/A

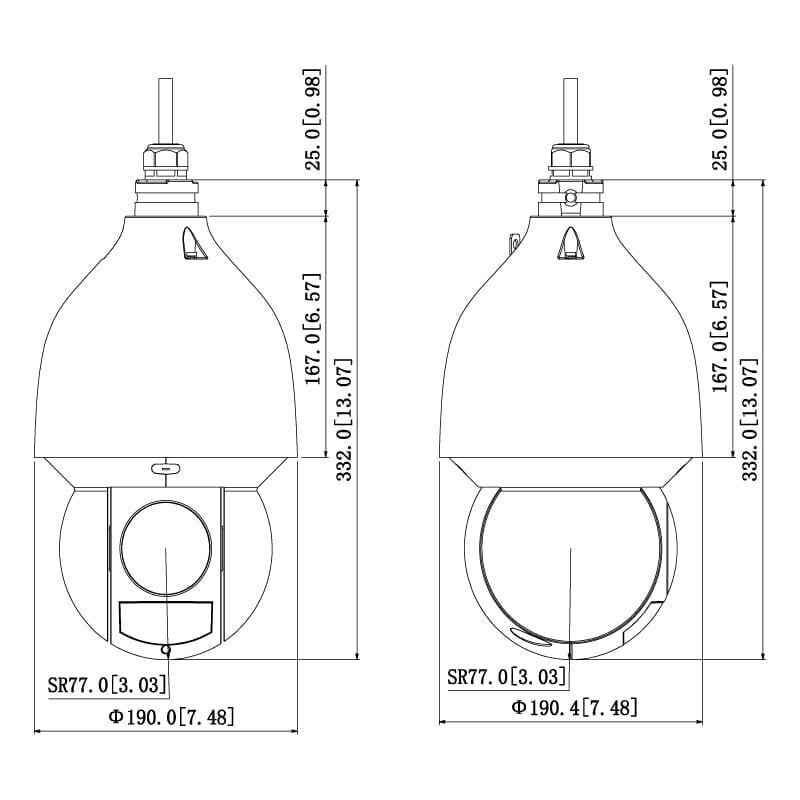

Dimensions
Ø190mm x 332mm
Net Weight
4.7kg
Other
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
SMD+
Filter motion detection alarms, recognises humans and vehicles from other moving objects
Surge Protection
TVS 6000V Lightning Protection / Surge Protection
Warranty (Years)
4
Register for Member Pricing



Download documents from the following links:

PTZ Camera Quick Start Guide
