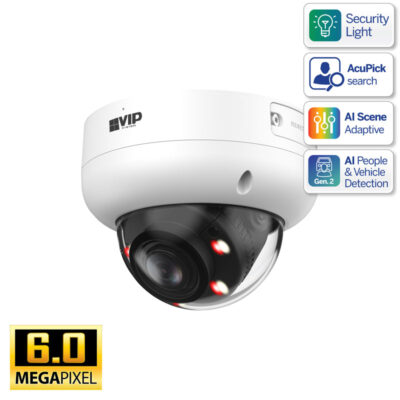

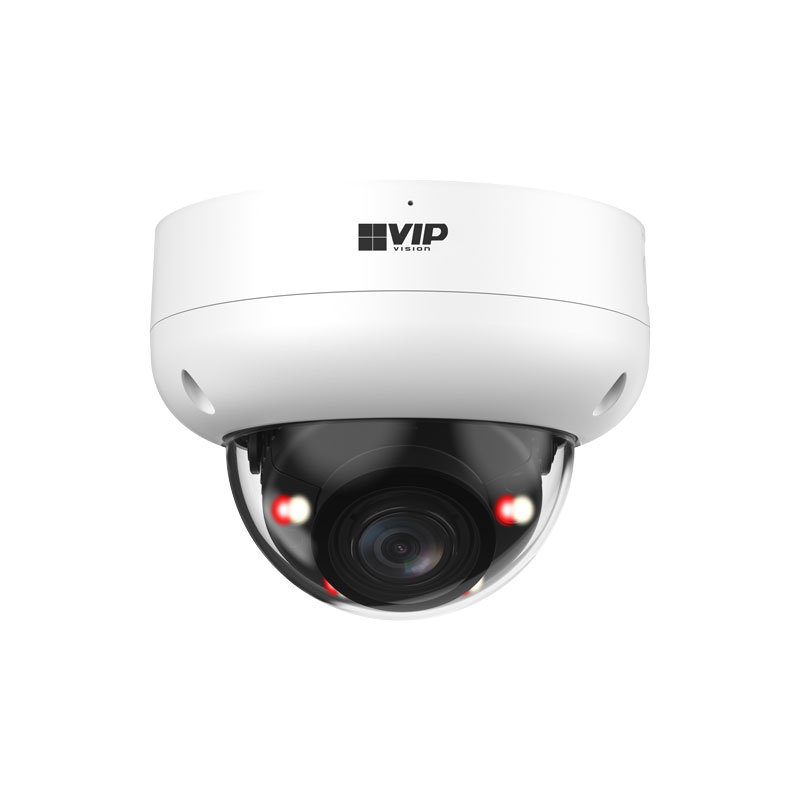

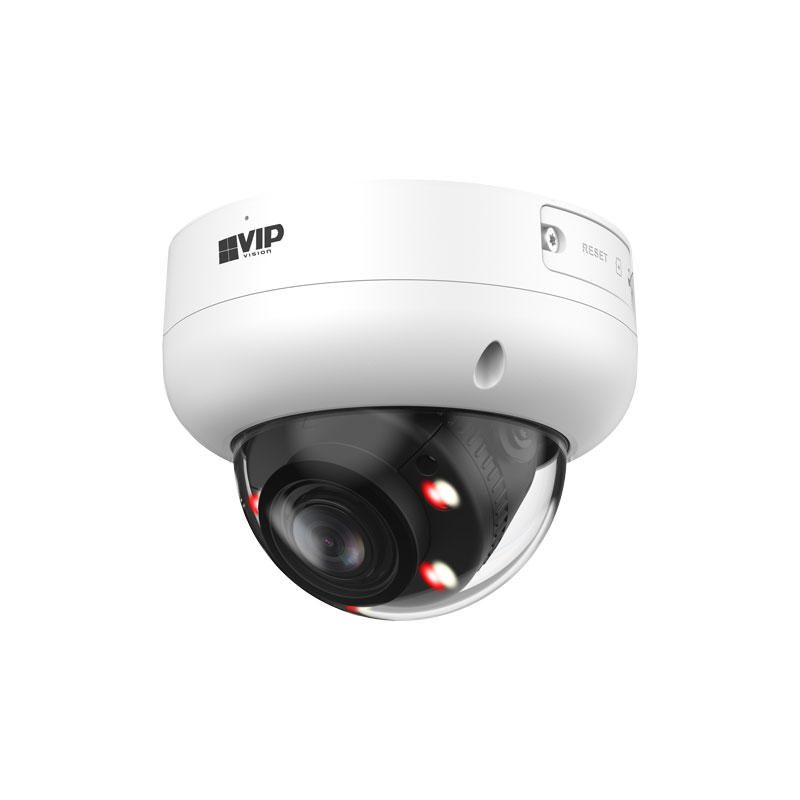

Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3
Sale!
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 2
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 3
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 4
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 5
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 6
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 7
Professional AI Series 6.0MP Motorised Vandal Dome - VSIPP-6DIRMD-I3 - Image 8

Professional AI Series 6.0MP Motorised Vandal Dome – VSIPP-6DIRMD-I3

Original price was: $345.00.Current price is: $278.30.

Professional AI Series 6.0MP Motorised Vandal Dome – CCTV Surveillance Systems > Network Surveillance Cameras

SKU: VSIPP-6DIRMD-I3 Categories: , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Professional AI Series 6.0MP Motorised Vandal Dome (VSIPP-6DIRMD-I3)

Ensure top-tier security with the Professional AI Series 6.0MP Motorised Vandal Dome, designed for intelligent surveillance in challenging environments. This advanced AI-powered camera combines people and vehicle detection with a warm LED deterrent light, providing crystal-clear, full-colour footage while discouraging intruders. With intelligent tracking, quickly locate and monitor individuals and vehicles across all Acupick CCTV cameras within your security system.

Key Features:

  • 6.0MP high-resolution streaming (3288 × 1850) at 25fps for sharp video.
  • Motorised 2.7 ~ 13.5mm lens with adjustable viewing angles (114° ~ 32°).
  • AI-powered intelligent search for seamless tracking across Acupick CCTV systems.
  • Warm LED light activation upon AI detection of people or vehicles.
  • Efficient H.265 encoding for optimized storage and smooth streaming.
  • 50m infrared range with true day/night capability (auto ICR) for 24/7 monitoring.
  • MicroSD slot supporting up to 512GB for local edge recording.
  • AI perimeter protection and smart motion detection (SMD 4.0) for advanced security.
  • Customizable AI alerts for quick search and retrieval of people or vehicle-related footage.
  • AI weather and anti-flicker scene self-adaption for optimal image clarity.
  • IP67-rated housing for reliable outdoor performance.
  • IK10 vandal-resistant metal housing for superior durability and protection.

Specifications

Camera
Image Sensor
1/2.7’’ 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3288 (H) × 1850 (V)
RAM / ROM
1GB / 256MB
Min Illumination
0.007 Lux/F1.4 (Color), 0.0007 Lux/F1.4 (B/W), 0 lux (illuminator on)
S/N Ratio
> 56dB
Infrared System
4x warm LED light, 4 x Infrared LED, 50m range, auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 114°~32°, Vertical: 58°~17°
Focus
Auto Focus / 0.1m Min. Focus Distance
DORI
Detect (25px/m)
85m (wide) / 280m (tele)
Observe (63px/m)
34m (wide) / 112m (tele)
Recognise (125px/m)
17m (wide) / 56m (tele)
Identify (250px/m)
8m (wide) / 28m (tele)
Video
Resolution
6.0MP (3288 × 1850) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+; Smart H.264+; AI H.265; AI H.264
Bit Rate
H.265: 3 ~ 16384 Kbps / H.264: 3 ~ 16384 Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Streaming Method
Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; PCM
Alarm Interface
1 channel in: 3- 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 512GB) / NAS
Interoperability
ONVIF / P2P / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Max <9.2W (12VDC), <11.3W (PoE)
Operating Conditions
-30°C ~ +60°C / ?95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
ePoE
No
Dimensions
Ø122mm x 94mm
Net Weight
0.56kg
Warranty (Years)
4



Register for Member Pricing

Please download documents from the following links:

VIP Vision Professional AI Series Motorised Vandal Dome (PDF)
