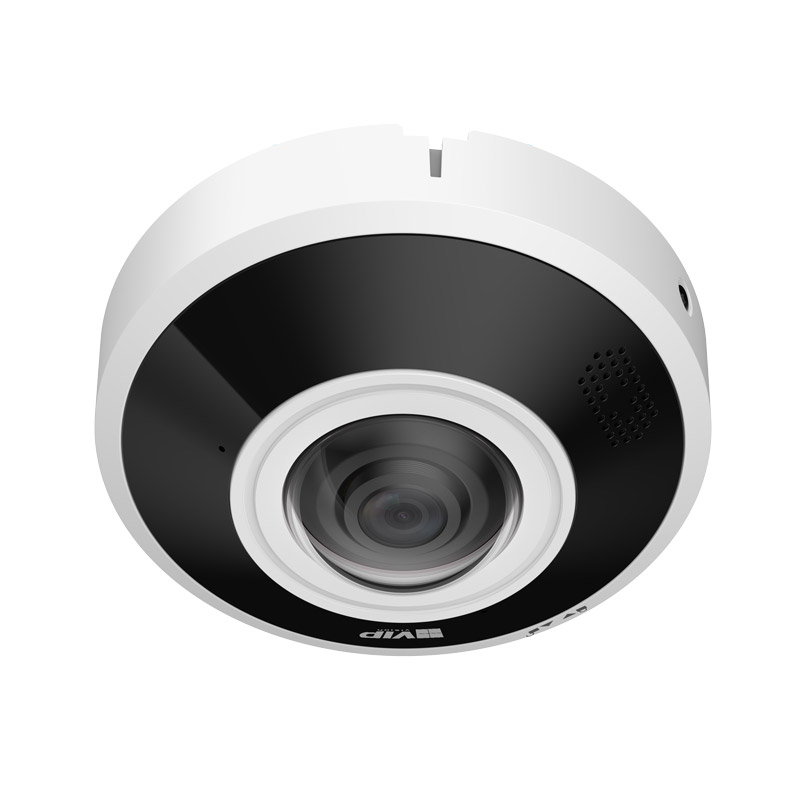

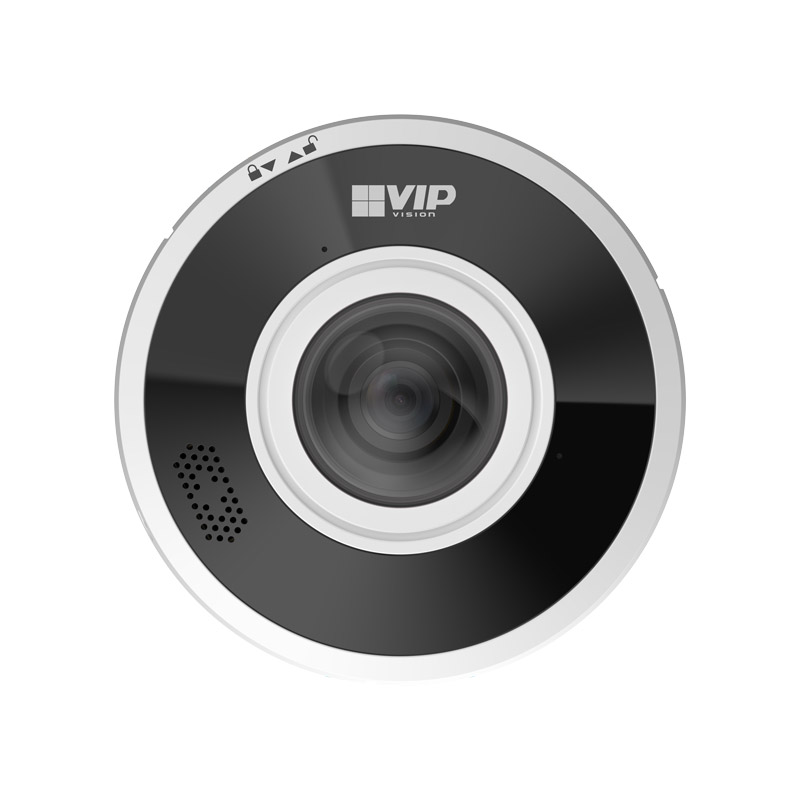

Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I
Sale!
Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I - Image 2
Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I - Image 3
Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I - Image 4
Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I - Image 5
Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I - Image 6
Specialist AI Series 6.0MP People Counting 360° Fisheye Dome - VSIPFE-6IR-I - Image 7

Specialist AI Series 6.0MP People Counting 360° Fisheye Dome – VSIPFE-6IR-I

Original price was: $574.64.Current price is: $482.79.

Specialist AI Series 6.0MP People Counting 360° Fisheye Dome – CCTV Surveillance Systems > Network Surveillance Cameras

SKU: VSIPFE-6IR-I Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPFE-6IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas.

Camera features:
• Stream up to 6.0MP (2560 x 2560) at 25fps
• Circular fisheye lens with 360° viewing angle
• Fisheye front & back-dewarping modes
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 15m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, tripwire, intrusion & regions of interest
• MicroSD card slot for edge recording up to 1TB
• IP67 weather rated & IK10 vandal rated housing
• Built in mic and audio/alarm inputs and outputs

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Specifications

Camera
Image Sensor
1/2.5’’ 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
2560 (H) x 2560 (V)
RAM / ROM
4TB / 1TB
Min Illumination
0.006 Lux/F2.0 (Color), 0.0006 Lux/F2.0 (B/W), 0 lux (illuminator on)
S/N Ratio
>56dB
Infrared System
3 x Infrared LED, 15m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
1.68mm F2.0 Fixed Circular Fisheye Lens
Field of View
Horizontal: 185°, Vertical: 185°
Focus
Fixed / 0.3m Min. Focus
DORI
Detect (25px/m)
33.6m
Observe (63px/m)
13.4m
Recognise (125px/m)
6.7m
Identify (250px/m)
3.4m
Video
Resolution
6.0MP (2560 x 2560) to UVGA (1600 x 1200)
Frame Rate (Main)
6.0MP (1~25fps)
Frame Rate (Sub)
2.0MP (1 ~ 25fps)
Frame Rate (Third)
2.0MP (1 ~ 25fps)
Video Compression
H.265, H.264, H.264H, H.264B, AI H.265, AI H.264, MJPEG (Only supported by sub stream)
Bit Rate
H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR) / Adaptive bit rate (ABR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Dewarping Modes
Original (no dewarp) / Panoramic / Virtual PTZ / Original + 3 split, + 4 split / Front-dewarp / Back-dewarp
IVS
Intelligent Functions
Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
People Counting
Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)
Network
Ethernet
RJ-45 (100/1000 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Channel Input (RCA), 1 Built-in Mic / 1 Built-in Speaker / 1 Channel Output / Audio Compression: PCM, G.711A, G.711Mu, G726, AAC
Alarm Interface
1 Channel Input (5mA 3VDC ~ 5VDC) / 1 Channel Output (300mA 12VDC)
RS485
1 (baud rate range: 1200 bps–115200 bps)
Edge Storage
MicroSD Card (up to 1TB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S / Profile G / Profile T), CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<1.4W (12VDC) / <8.1W (12VDC Max.) / <10.1W (PoE) / <8.8W (PoE Max.)
Operating Conditions
-10° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Specialist AI Series
Camera Type
Fisheye Dome
Housing
Metal + Plastic
Pan/Tilt/Rotation
N/A
ePoE
No

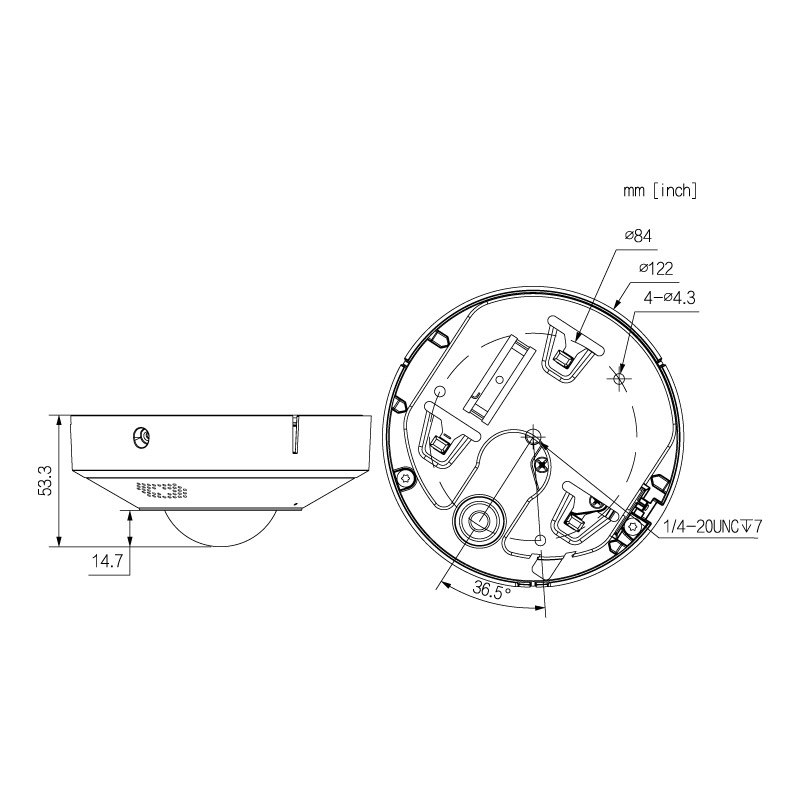

Dimensions
Ø122mm x 53.3mm
Net Weight
0.46kg
Warranty (Years)
4
Register for Member Pricing



Please download documents from the following links:

VIP_Vision_Specialist_AI_6.0MP_People_Counting_Fisheye_Datasheet_PDF
