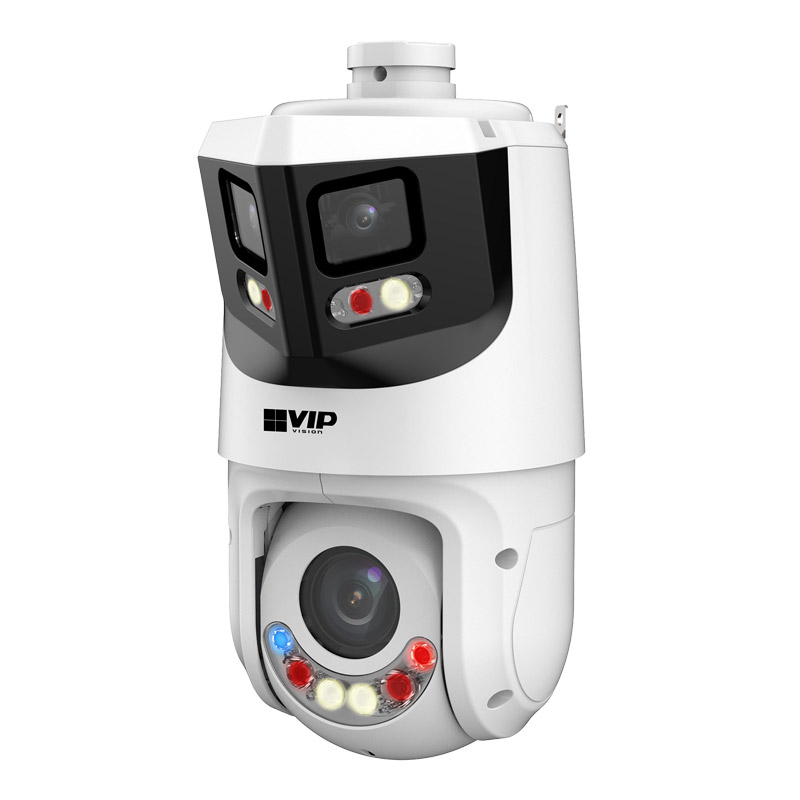

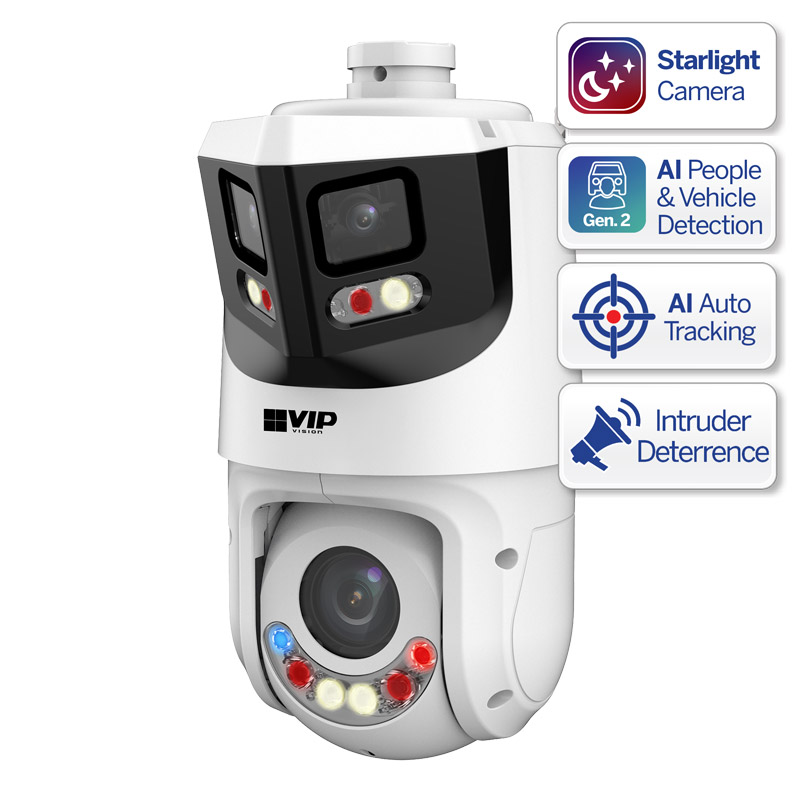

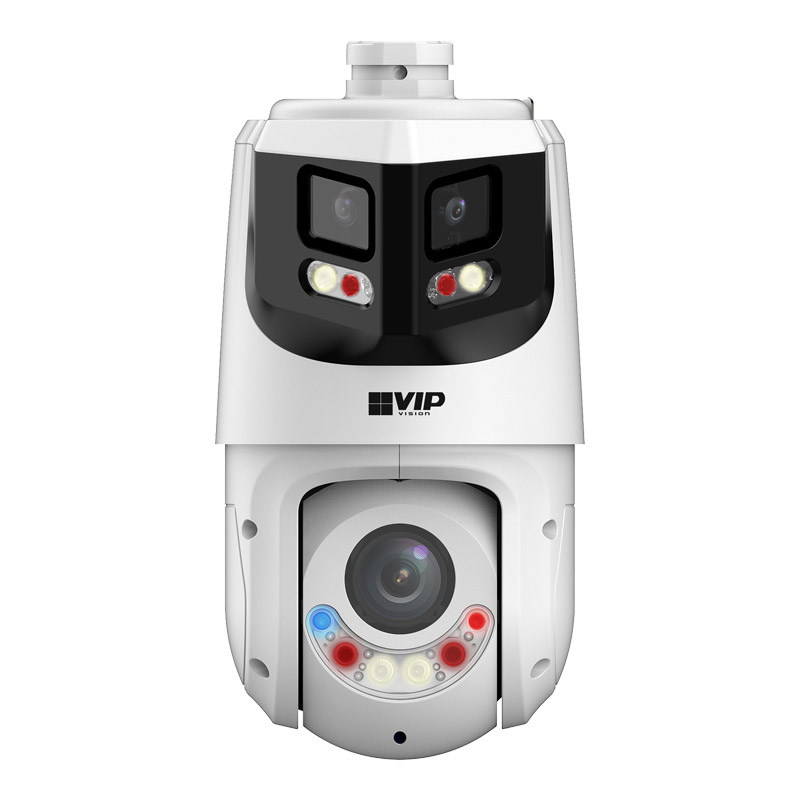

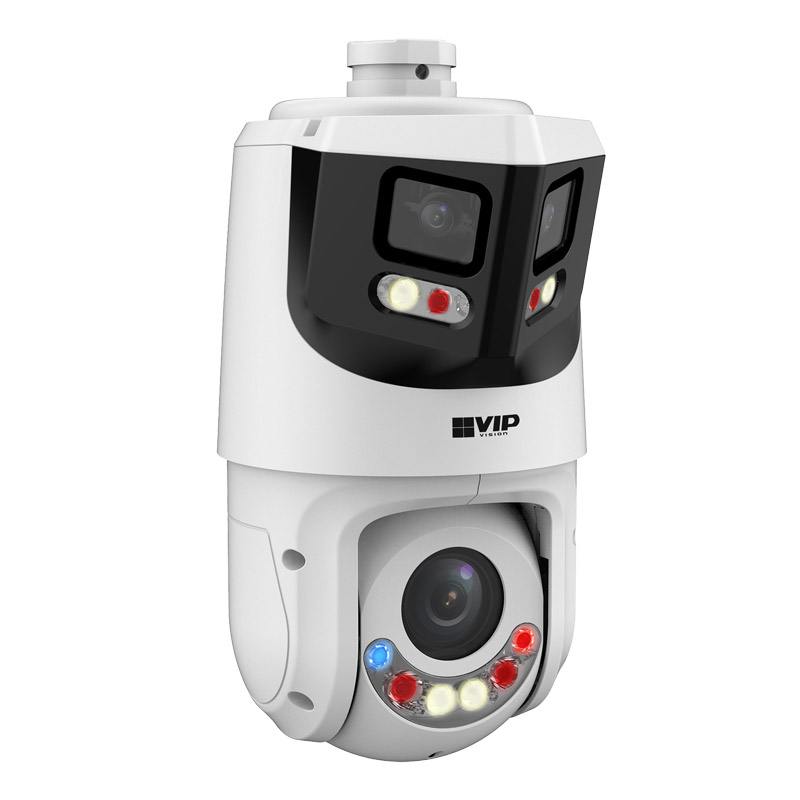

VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X
Sale!
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 2
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 3
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 4
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 5
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 6
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 7
VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) - VSIPPTZ-4P8X - Image 8

VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) – VSIPPTZ-4P8X

Guest Price – Login to see Member Pricing

Original price was: $1,249.00.Current price is: $930.49.

VIP Vision Professional AI Multi-Vision (PTZ + 180º Turret) – CCTV Surveillance Systems > Network Surveillance Cameras

SKU: VSIPPTZ-4P8X Categories: , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Outstanding dual camera for surveillance and detection. With 180 degrees field of view from the top panoramic camera and a fully functional pan-tilt-zoom (PTZ) camera in the lower section you can capture and track unwanted visitors with ease.  The PTZ can identify an intruder out to 250m making this a truly powerful surveillance system.  Equipped with a micro storage slot for 512GB memory card or record on an NVR / NAS.

Deliver comprehensive surveillance for large sites with this two-in-one CCTV unit. Multi-Vision combines the wide-angle coverage of a 180º turret with the long-range zoom of a PTZ while capturing both streams at once. Upon a human or vehicle detection event, this camera can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone, to deter intruders.

Camera features:

Register for Member Pricing

  • Stream up to 8.0MP (4096 x 1860) at 25fps
  • Dual wide angle lenes for complete site coverage and 25x zoom lens for detailed shots
  • Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
  • Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
  • Auto tracking via people/vehicles AI rules
  • 24/7 Colour low light footage as low as 0.005lx
  • IP67 weather rated housing for outdoor use

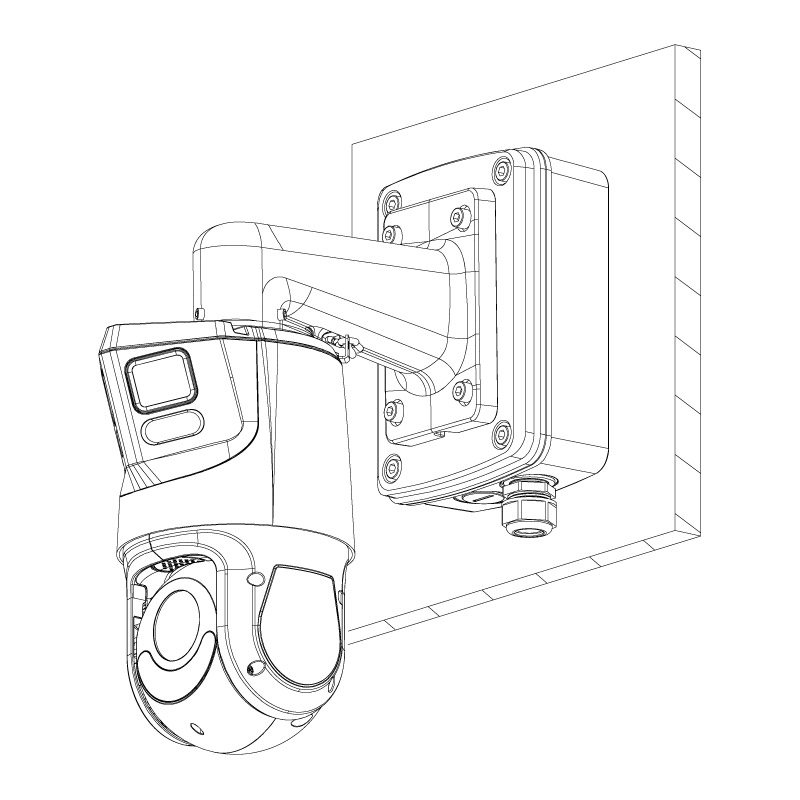

*Wall-mount bracket (VSBKTB305W) included

Specifications

Camera
Image Sensor
Turret: 1/2.7″CMOS / PTZ: 1/2.8″CMOS
Max. Resolution
Turret: 8.0 Megapixel / PTZ: 4.0 Megapixel
Effective Pixels
Turret: 4096 (H) x 1860 (V) / PTZ: 2560 (H) x 1440 (V)
RAM / ROM
Turret: 2GB/4GB / PTZ: 1GB/4GB
Min Illumination
Turret: 0.005 lux/F1.4 (Color, 30 IRE); 0.0005 lux/F1.4 (B/W, 30 IRE); 0 lux (Illuminator) / PTZ: 0.005 lux/F1.6 (Color, 30 IRE); 0.0005 lux/F1.6 (B/W, 30 IRE); 0 lux (Illuminator)
S/N Ratio
N/A
Infrared System
2 x Infrared LED, 30m range by turret, 50m range by PTZ, Auto/manual on/off control
Lens
Lens Type
Turret: Fixed / PTZ: Motorised Varifocal
Lens / Iris
Turret: 2.8mm F1.0 Fixed Lens / PTZ: 5 ~ 125mm F1.6 ~ F3.6 Motorised Lens with Auto Iris
Field of View
Turret: H:180°, V:86° / PTZ: H:52°~3.0°, V:40°~2.2°, D:63°~3.7°
Focus
Turret: Auto Focus / 0.6m Min. Focus Distance / PTZ: Auto/Semi-Auto/Manual Control, 0.1 ~ 0.5m Min. Focus Distance
DORI
Detect (25px/m)
Turret: 56m / PTZ: W: 100m, T; 2500m
Observe (63px/m)
Turret: 22m / PTZ: W: 40m, T: 1000m
Recognise (125px/m)
Turret: 11m / PTZ: W: 20m, T: 500m
Identify (250px/m)
Turret: 6m / PTZ: W: 10m, T: 250m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 0.1°~ 180°/s, Tilt: 0.1°~ 90°/s, Manual: Pan: 0.1°~ 180°/s, Tilt: 0.1°~ 90°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, 5 Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
Turret: 8MP (4096 x 1860) to VGA (640 x 480) / PTZ: 4MP (2560 x 1440) to D1 (704 x 576/704)
Frame Rate (Main)
Turret: 8MP (1 ~ 25fps) / PTZ: 4MP (1 ~ 25fps)
Frame Rate (Sub)
Turret: 1024 x 448 (1 ~ 25fps) / PTZ: D1 (1 ~ 25fps)
Frame Rate (Third)
–
Video Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264B / H.264M / H.264H / MJPEG (Sub Stream 1)
Bit Rate
Turret: H264: 128 ~ 16,384 kbps, H265: 51 ~ 13,312 kbps / PTZ: H264: 96 ~ 16,384 kbps, H265: 38 ~ 10,240 kbps
Bit Rate Control
Constant Bit Rate (CBR) / Variable Bit Rate (VBR)
Day/Night
Auto (ICR) / Color / B&W / Electronic
Lighting Compensation
Turret: BLC / HLC / Digital WDR / PTZ: BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Indoor / Outdoor / Tracking / Manual / Sodium Lamp / Natural / Street Lamp
Gain Control
Auto / Manual / Gain Prio
Noise Reduction
2D / 3D
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
N/A
Perimeter Protection
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm Classification; linkage tracking
Auto Tracking
Auto-tracking 3.0 for Person and Vehicle Tracking
Metadata
Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation (detail only), Privacy Masking (24 zones), Defog
Event Triggers
Filter motion detection alarms, recognises humans and vehicles from other moving objects
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
N/A
Image Stabilisation
Support
Network
Ethernet
RJ-45 (100/1,000 Base-T)
Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjur; NFS
Streaming Method
Unicast / Multicast
Max. User Access
20
Interface
Video Interface
N/A
Audio Interface
1 Audio In/Output / Audio Compression – PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729
Alarm Interface
2 channels in: 0-5VDC / 1 channel out
RS485
N/A
Edge Storage
Micro SD card (512 GB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S & Profile G & Profile T) / CGI / SDK / P2P
Environmental
Power Supply
12VDC / PoE (820.3af)
Power Consumption
<14 W (basic); <25 W (max)
Operating Conditions
-40° ~ +65° C / Less than 95% RH
Ingress Protection
IP66
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret: 180° Turret / PTZ: PTZ Dome
Housing
Metal chassis
Pan/Tilt/Rotation
Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180°
ePoE
N/A

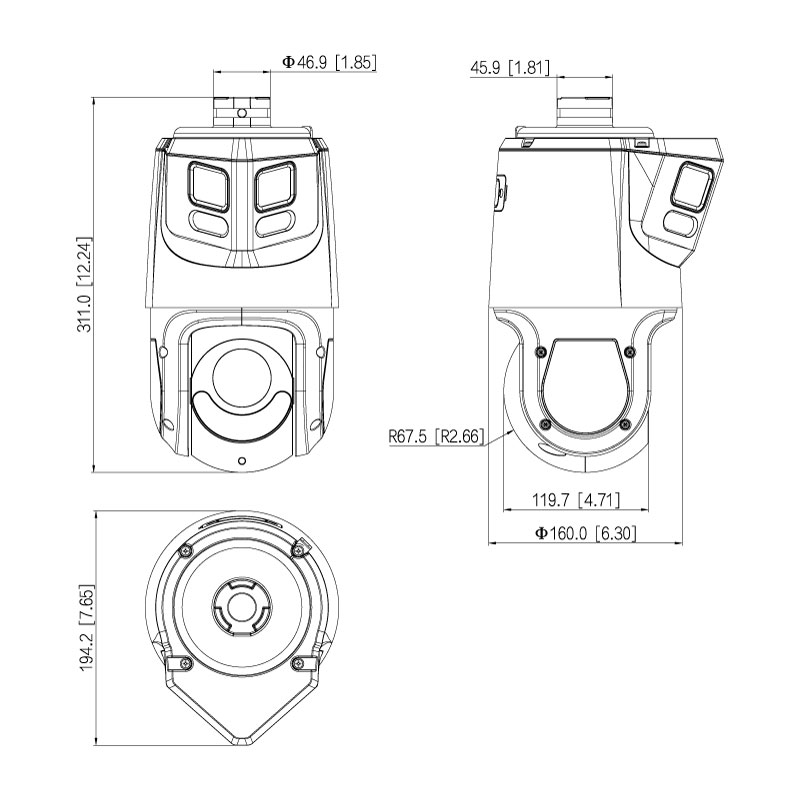

Dimensions
194 mm × 160 mm × 311 mm
Net Weight
3.1kg
Warranty (Years)
4
