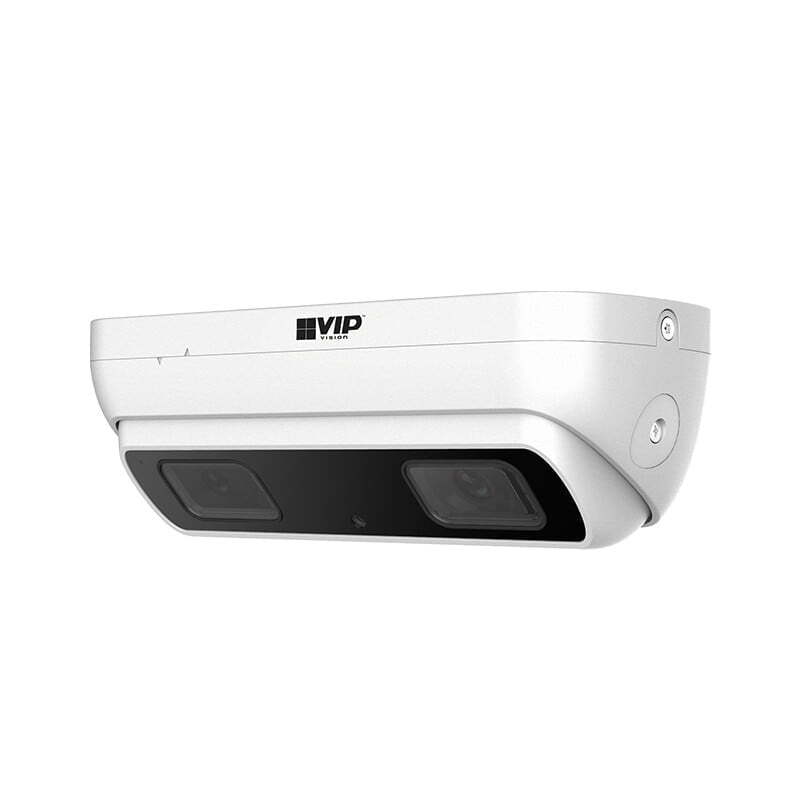

Specialist AI Series 3.0MP People Counting Dual Lens Camera

Name: Specialist AI Series 3.0MP People Counting Dual Lens Camera
Brand: VIP Vision
SKU: VSIPDL-3IR
Price: 744.15 AUD
Availability: InStock

Guest Price – Login to see Member Pricing

Original price was: $879.45.Current price is: $744.15.

SKU: VSIPDL-3IR Categories: Watchguard / VIP Vision AI Network Surveillance, CCTV Cameras Tags: AI, people counting

Free Shipping for orders over $600 (AU Only)*

Brand: VIP Vision

Description

The unique VSIPDL-3IR is a dual lens IP camera that offers AI-powered people counting, capturing and detecting people in real time and gathering data for use in business analytics and statistics. The dual lens combined with AI technology allows the camera to reliably track human movement and count people in real time with increased precision and accuracy

Camera features:

Stream up to 3.0MP (2048 x1536) at 25fps
Up to 10m infrared range; true day/night (auto ICR)
People counting with AI & dual lens technology
Accurately tracks the number of people in a region and/or the number of people who cross a line
Combines dual lens images to capture 3D depth
Back/highlight compensation & true WDR (120dB)
3D digital noise reduction & auto white balance
Built-in microphone, efficient H.265+ compression
IP67 weather rated housing for outdoor use

Specification

Alarm Interface

2 Channel Inputs (5mA 5VDC) / 2 Channels Output (300mA 12VDC)

Audio Interface

2 Channel inputs / 1 Channel Output / Built-in Mic / Audio Compression – G.711a; G.711Mu; G726; AAC

Bit Rate

H.264: 192~ 10240Kbps, H.265: 80~ 6144Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

DORI Distance

Detect (25px/m)
45m

Observe (63px/m)
18m

Recognise (125px/m)
9m

Identify (250px/m)
4m

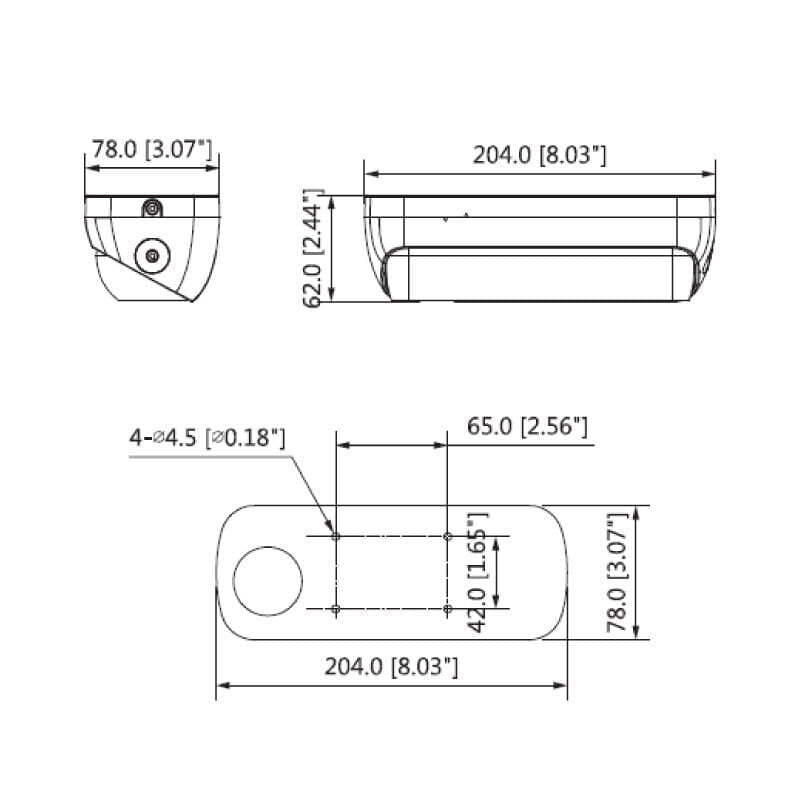

Dimensions

204mm x 78mm x 62mm

Edge Storage

MicroSD Card (up to 128GB) / NAS / Local PC

Effective Pixels

2048 (H) x 1536 (V)

Ethernet

RJ-45 (100/1000Base-T)

Event Trigger

N/A

Face Attributes

N/A

Face Detection

N/A

Field of View

Horizontal: 106°, Vertical: 80°

Focus

Fixed Focus / 0.6m Min. Focus Distance

Frame Rate (Main)

3.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

6.0MP (1 ~ 7fps, debugging only)

Gain Control

Auto / Manual

Heat Map

N/A

Housing

Metal

Image Sensor

2 x 1/2.8’’ 3.0MP Progressive Scan CMOS

Infrared System

1 x Infrared LED, 10m range, Auto/manual on/off control

Ingress Protection

IP67

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map

Intelligent Search

N/A

Interoperability

ONVIF Profile S&G, API

Lens / Iris

2.8mm F1.8 Fixed Focal Lens

Lighting Compensation

BLC / HLC / WDR (120dB)

Max. User Access

10 / 20 Users

Min Illumination

0.009 Lux/F1.8 (colour 1/3s), 0.08 Lux/F1.8 (colour 1/30s), 0 Lux/F1.8 (IR on)

Net Weight

0.80kg

Noise Reduction

3D DNR

Operating Conditions

-30°C to +60°C, ?95% RH

Pan/Tilt/Rotation

Tilt: -10° ~ 70°

People Counting

People Counting (Supports line crossing & region of interest, 98% accuracy), Height Filter, Loitering Filter

Perimeter Protection

N/A

Picture Control

N/A

Power Consumption

<12W

Power Supply

12VDC / PoE (802.3af) (Class 0)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour;IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS

RAM / ROM

512MB / 4096MB

Resolution

3.0MP (2048 x 1536) to CIF (352 x 288)

RS485

N/A

S/N Ratio

>50dB

Series

Specialty AI Series Cameras

Streaming Method

Unicast / Multicast
