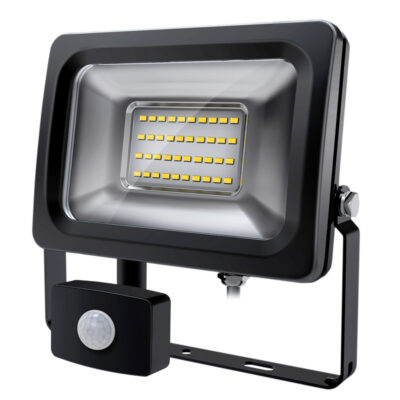

20W LED Floodlight with Adjustable PIR Sensor and IP65 Weather Protection
The LFL-C2 Series combines high-efficiency LED flood lighting with customisable motion detection, delivering reliable illumination while maximising energy savings. Ideal for residential, commercial, or industrial use, the unit features a 20W LED output, delivering 5000K cool white light at 120lm/W, with a wide 120° beam angle for effective area coverage.

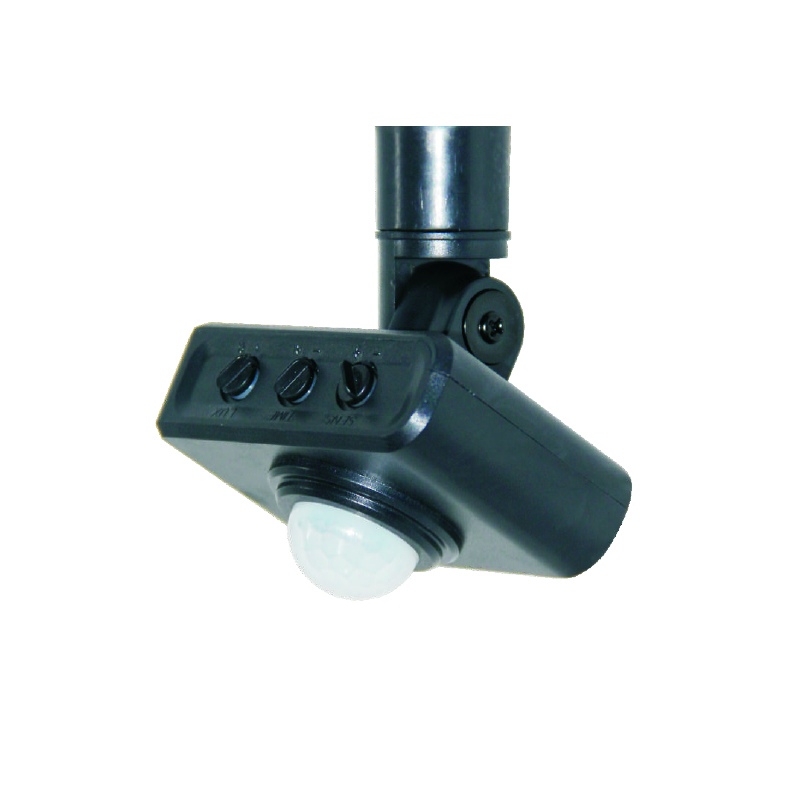

Equipped with an adjustable PIR sensor, it supports motion detection up to 12 metres, a 140° detection arc, and a user-friendly on-time delay setting (5s to 5min). The robust IP65-rated metal enclosure ensures year-round durability, while the adjustable U-mount bracket and pivoting PIR assembly (180° pan, ±90° tilt) offer flexible installation for a wide range of outdoor scenarios.
This is a versatile solution for security lighting, perimeter awareness, and general-purpose illumination, backed by smart sensing features that help reduce energy costs without compromising performance
Specifications
Optical
Light Output
2400lm
Luminous Efficacy
120lm/W
Colour Temperature
5000K
Colour Rendering Index
>80
Beam Angle
120°
Light Decay
L70 at 35,000 hours
Rated Lifespan
35,000 hours
Electrical
Power Consumption
20W
Input Voltage
100 ~ 240VAC 50 / 60Hz
Power Factor
>0.95
Dimmable
N/A
Motion Activated
PIR: 140° arc up to 12m range (horizontally), Ø6m range (ceiling)
General
Ingress Protection
IP65
Plug / Socket / Base
Requires 3-pin AC plugBare wire, unterminated
Reflector / Diffuser
Aluminium reflector / Tempered glass front
Housing Adjustments
+180° angle adjustable U-shape bracket / Fully adjustable PIR sensor stalk Adjustable PIR sensor bracket (180° panning, 90°~-90° tilt)
Commercial 20W 5000K LED Sensor Flood Light – LFL-C20-CS2-5
$75.00Original price was: $75.00.$56.87Current price is: $56.87.20W LED floodlight with PIR motion detection, 120° beam, and IP65 weather rating—ideal for smart, energy-saving outdoor lighting
Description
20W LED Floodlight with Adjustable PIR Sensor and IP65 Weather Protection
The LFL-C2 Series combines high-efficiency LED flood lighting with customisable motion detection, delivering reliable illumination while maximising energy savings. Ideal for residential, commercial, or industrial use, the unit features a 20W LED output, delivering 5000K cool white light at 120lm/W, with a wide 120° beam angle for effective area coverage.
Equipped with an adjustable PIR sensor, it supports motion detection up to 12 metres, a 140° detection arc, and a user-friendly on-time delay setting (5s to 5min). The robust IP65-rated metal enclosure ensures year-round durability, while the adjustable U-mount bracket and pivoting PIR assembly (180° pan, ±90° tilt) offer flexible installation for a wide range of outdoor scenarios.
This is a versatile solution for security lighting, perimeter awareness, and general-purpose illumination, backed by smart sensing features that help reduce energy costs without compromising performance
Specifications
Please download documents from the following links:
LFL-CS2-5_Series_Datasheet_PDF
LFL-C20-CS2 Instruction Manual (PDF)
