ENSA Multi-Adjustable 100W LED Flood Light – LFL-M100-A

Guest Price – Login to see Member Pricing

Original price was: $189.00.Current price is: $150.04.

The ENSA LFL-M100-A is a high-performance, adjustable LED floodlight designed for commercial and industrial applications. With selectable 60W, 80W or 100W output, adjustable 3000K, 4000K or 5000K colour temperature, efficiency up to 170lm/W and a wide asymmetric 55° × 110° beam, one versatile floodlight can be configured to suit a range of installations.

SKU: LFL-M100-A Category: Flood Lighting

Free Shipping for orders over $600 (AU Only)*

Brand: ENSA

Description

Tailor your flood lighting to perfectly match your application requirements with the LFL-M Series from ENSA.

The LFL-M100-A is a high-power LED flood light from ENSA that delivers superb lighting efficiency and quality. Customise your light output and colour with wattage adjustment of 60W, 80W or 100W and colour temperature adjustment of cool, natural or warm white. Choose one model to perform multiple jobs and save time on site by adjusting the light to meet your installation and customer needs.

Experience superior efficiency of up to 170lm/W and lower operation and maintenance costs, with a maximum projected lifespan of 100,000 hours. Fitted with an asymmetric lens with 55° x 110° rectangular light distribution, the LFL-M100-A is ideal for general purpose lighting in commercial and industrial environments including parking lots, building sites, security lighting, sporting fields, in signage illumination and more.

Product features:
• Exceptional light output up to 17,000lm (170lm/W, 100W at 4000K)
• Power output adjustable 60W, 80W or 100W via DIP switch
• Colour temp. adjustable 3000K, 4000K, or 5000K via DIP switch
• Pre-terminated 3-pin AC plug for easy installation
• Wide 55° x 110° beam angle, rectangular light distribution
• IP66 rated for weather resistance and IK08 vandal resistance
• 320° adjustable stainless steel U-bracket for wall mounting
• Heavy die-cast aluminium chassis for superior heat dissipation
• Tempered glass and polycarbonate optic lens
• 5 years warranty

ENSA LFL-M100-A LED Floodlight FAQs

What is the ENSA LFL-M100-A?

The ENSA LFL-M100-A is a high-power LED floodlight designed for
commercial and industrial lighting applications. It features adjustable
power output and colour temperature, allowing one model to be configured
for a range of installation requirements.

What wattage settings are available on the LFL-M100-A?

The LFL-M100-A can be set to 60W, 80W or 100W using its DIP switch,
allowing the power output to be adjusted to suit the application.

Can the colour temperature be adjusted?

Yes. The LFL-M100-A offers selectable 3000K warm white, 4000K natural
white and 5000K cool white colour temperatures via a DIP switch.

How bright is the LFL-M100-A?

The floodlight delivers up to 17,000 lumens, with efficiency of up to
170lm/W at 100W and 4000K.

What beam angle does the LFL-M100-A have?

The LFL-M100-A uses an asymmetric lens with a wide 55° × 110° beam
angle, producing a rectangular light distribution.

Is the LFL-M100-A suitable for outdoor use?

Yes. The floodlight is IP66 rated for weather resistance and IK08 rated
for vandal resistance, making it suitable for demanding outdoor
applications.

Where can the LFL-M100-A LED floodlight be used?

The LFL-M100-A is suitable for general-purpose commercial and industrial
lighting applications, including parking lots, building sites, security
lighting, sporting fields and signage illumination.

How is the LFL-M100-A mounted?

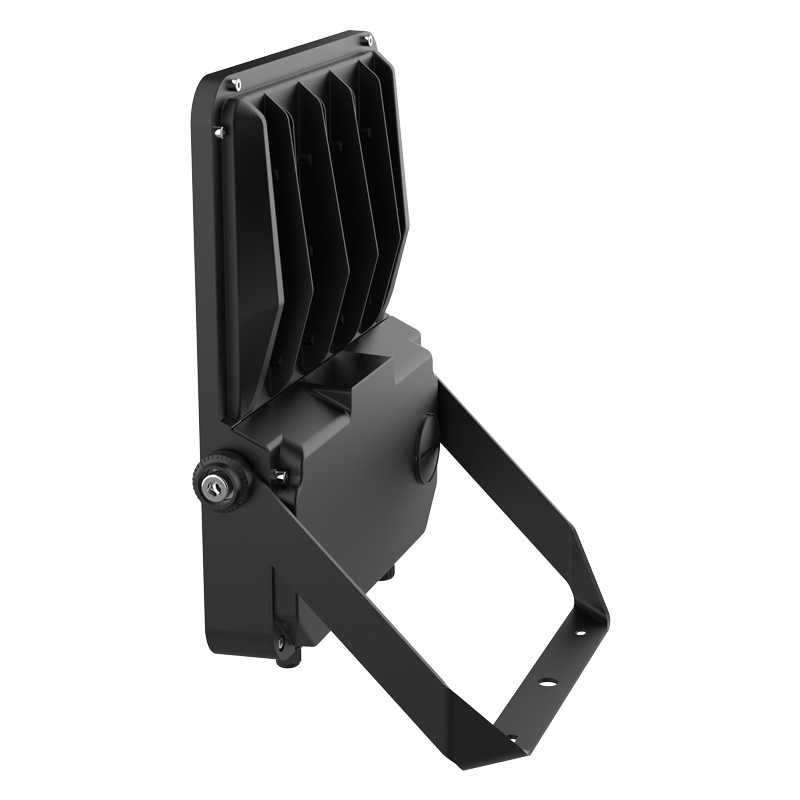

The floodlight features a 320° adjustable stainless steel U-bracket
designed for wall mounting.

What is the expected lifespan of the LFL-M100-A?

The LFL-M100-A has a maximum projected lifespan of up to 100,000 hours,
helping to reduce ongoing operation and maintenance requirements.

What materials are used in the LFL-M100-A?

The floodlight uses a heavy die-cast aluminium chassis for heat
dissipation, together with tempered glass and a polycarbonate optic lens.

Does the LFL-M100-A come pre-terminated?

Yes. The LFL-M100-A is supplied with a pre-terminated 3-pin AC plug for
easy installation.

What warranty does the LFL-M100-A include?

The ENSA LFL-M100-A comes with a 5-year warranty.

Specifications

Optical

Light Output

10,200lm (60W) / 13,600lm (80W) / 17,000lm (100W) at 4000K

Luminous Efficacy

170lm/W at 4000K

Colour Temperature

3000K / 4000K / 5000K (Selectable)

Colour Rendering Index

> 70

Beam Angle

55° x 110°

Light Decay

20% at 100,000 hours (L80 B50)

Rated Lifespan

100,000hrs (TM-21)

Electrical

Power Consumption

60W / 80W / 100W (Selectable)

Input Voltage

100 ~ 240VAC

Power Factor

>0.95

Dimmable

N/A

Motion Activated

General

Ingress Protection

IP66 / IK10

Plug / Socket / Base

3-pin AC plug

Reflector / Diffuser

Polycarbonate Lens with Tempered Glass Diffuser

Housing Adjustments

320° Adjustable Housing

NSW ESS Accepted

Operating Environment

-30° ~ 50°C

Dimensions

274 x 336 x 55mm

Other

Weight

3.50kg

Warranty (Years)

Please download documents from the following links:

LFL-M Series Product Datasheet (PDF)
