VIP Vision Unmanaged 8-Port (100M) PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8U
Sale!

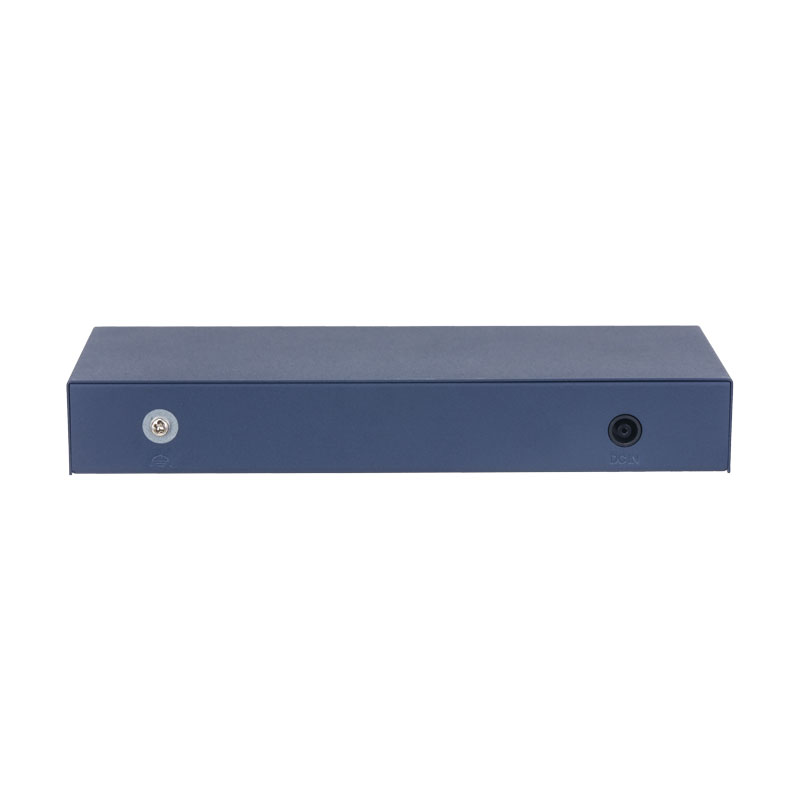

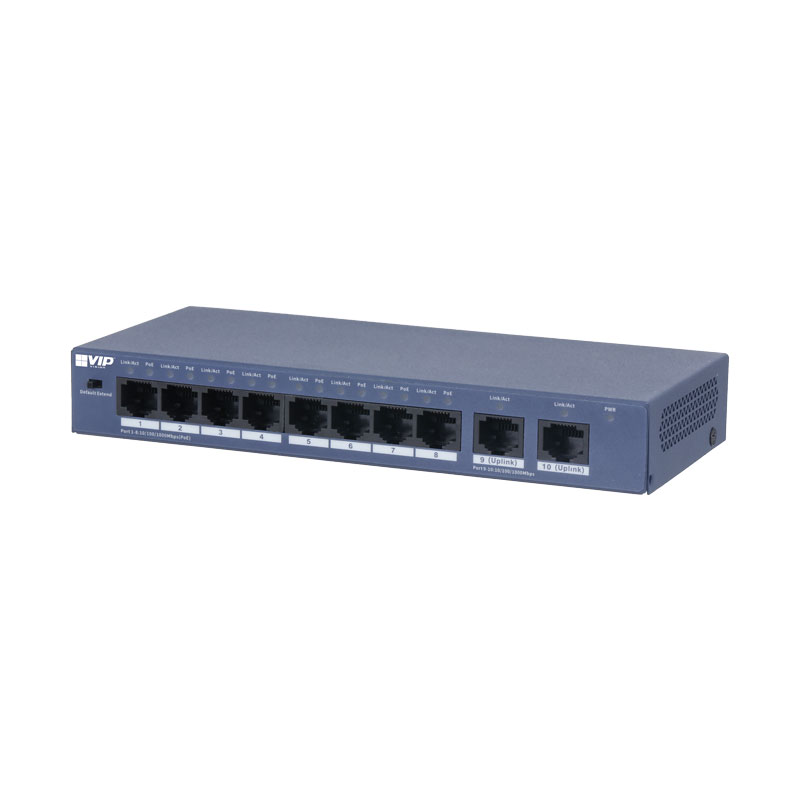

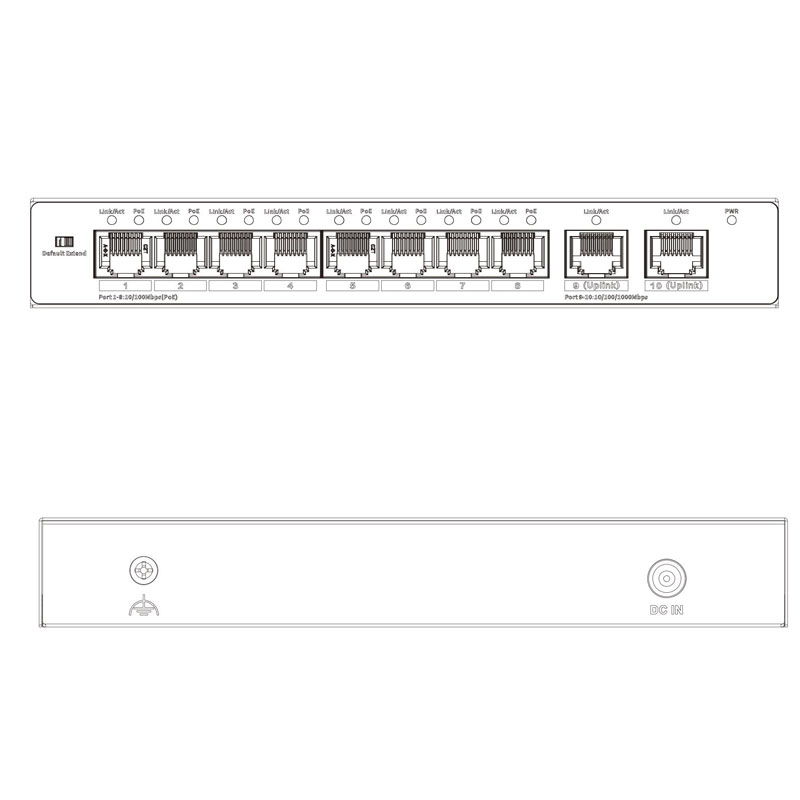

VIP Vision Unmanaged 8-Port (100M) PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8U - Image 2
VIP Vision Unmanaged 8-Port (100M) PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8U - Image 3
VIP Vision Unmanaged 8-Port (100M) PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8U - Image 4

VIP Vision Unmanaged 8-Port (100M) PoE Switch with 2-Port Uplink (1000M) – VSPOE-SWA8U

Original price was: $92.95.Current price is: $78.65.

VIP Vision Unmanaged 8-Port (100M) PoE Switch with 2-Port Uplink (1000M) – Networking and Communication > Network Switches

SKU: VSPOE-SWA8U Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSPOE-SWA8U is a desktop fast (100M) switch with 4 device ports and 2 gigabit uplink ports (1000M). This switch is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Features:

  • 8 x Fast PoE+ 10/100Mbps RJ45 Device Ports
  • 2 x Gigabit 10/100/1000Mbps RJ45 Uplink Ports
  • PoE+ power load up to 30W per port; 90W switch total power load
  • Extend mode via DIP switches for PoE power via Ethernet up to 250m (10Mbps transfer rate only)
  • Unmanaged switch, plug and play for easy deployment
  • Professional appearance full metal enclosure
  • 53VDC power supply included
  • Lightning overvoltage protection up to 6kV

Register for Member Pricing



Specifications

Switch Specification
Ports
8 ports
Speed
Fast 10/100
Management
Unmanaged
Device Ports
8 x 10/100 PoE RJ45
Uplink Ports
2 x 10/100/1000 RJ45
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.168 Mpps
Exchange Mode
–
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at)
Switch Power Load
Port 1-4: ?30W / Total: ?90W
Management
Switch Management
N/A
MAC Address Capacity
2K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range at 10Mbps (via DIP switches)
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
53VDC
Lightning Protection
Common Mode: 6kV / Differential Mode: 1kV
Mounting Options
Rackmount Tabs (1RU) / Desktop Mount
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
0.30kg
Dimensions
184.6 x 77.4 x 27mm
Warranty (Years)
4



Please download documents from the following links:

VSPOE-SWAU_Series_Datasheet_PDF
