Specifications
Ports
24 ports
Speed
Fast 10/100
Device Ports
24 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 10/100/1000 RJ45 Base-T (combo port) / 2 x 1000 SFP Base-X (combo port)
Switching Capacity
8.8Gbps
Packet Forwarding Rate
6.5Mbps
Exchange Mode
Store & forward
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Switch Power Load
Port 1-2: ?90W / Port 3-24: ?30W / Total: ?375W
Switch Management
Cloud Managed
MAC Address Capacity
8K
Virtual LAN
802.1Q Standard VLAN
Network Time Protocol
N/A
Spanning Tree Protocol
STP / RSTP
Port Aggregation
Static link aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Supports
DHCP
DHCP Client
Extend Mode
Up to 250m range at 10Mbps (port configurable via management interface)
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Security Features
IP+MAC binding based on port; IEEE802.1x port authentication
System Maintenance
One-key recovery / Supports updated packet upload / System log
Quality of Service
High and low priority / WRR / 802.1P / DSCP / Support priority according to protocol
Network Management
WEB (HTTP and HTTPS protocol) / Support SNMP V1/V2/V3
PoE Management
PoE setting (real-time port consumption) / PoE event statistics / Green PoE
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Rackmount Tabs (1RU)
Operating Environment
Rackmount Tabs / Desktop mount
Weight
3.62kg

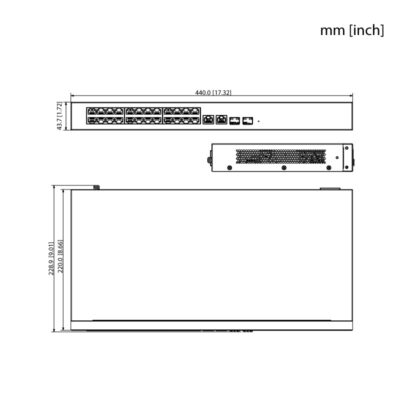

Dimensions
440 x 220 x 44mm
Warranty (Years)
4

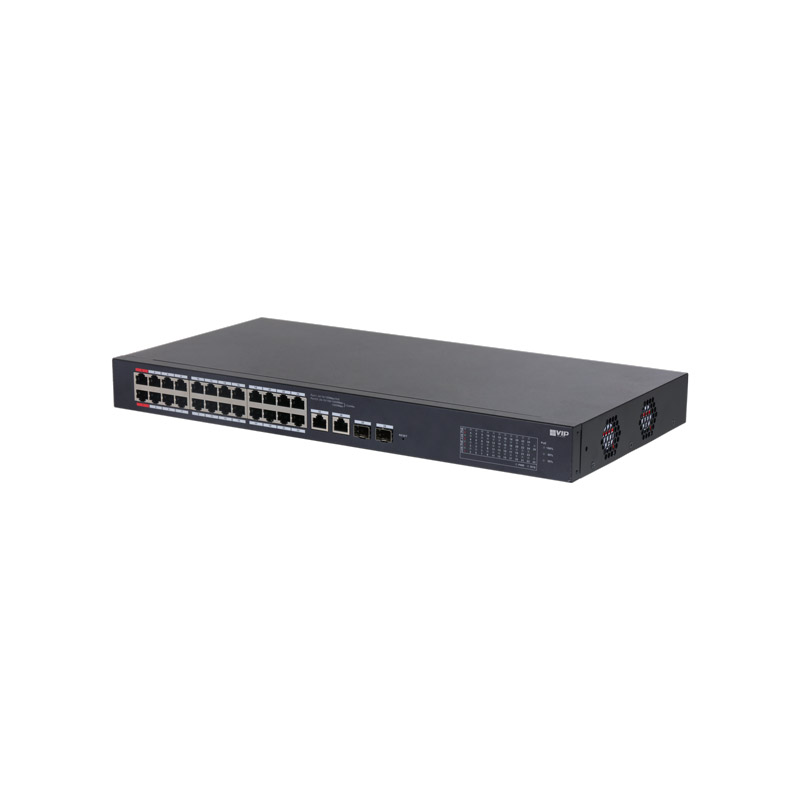

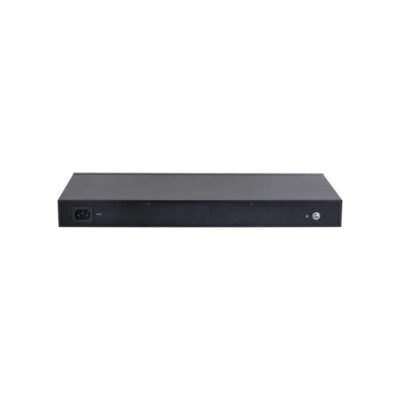

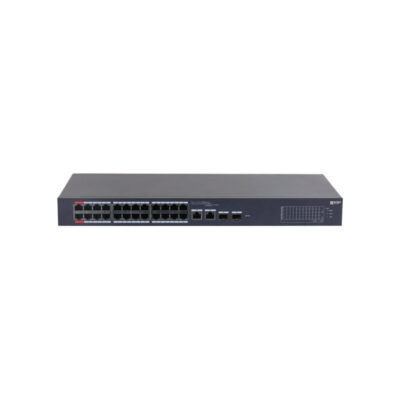

24-port Cloud Managed Fast Hi-PoE Ethernet Switch – VSPOE-SWA24C
$480.67Original price was: $480.67.$421.14Current price is: $421.14.24-port Cloud Managed Fast Hi-PoE Ethernet Switch – Networking and Communication > Network Switches
Description
Introducing the rack mountable, cloud managed, 24 port PoE, PoE+, and Hi-PoE switch with 100Mbps per port. Offering a huge list of features at an affordable price.
The VSPOE-SWA24C is a versatile networking solution with flexibility for a range of high-powered PoE devices & a variety of uplink ports. Monitor your switch in real-time via your phone and be notified when a fault is detected. The switch also offers configuration options for network traffic quality of service, VLAN and a suite of other features.
Features:
Specifications
Please download documents from the following links:
VIP Vision VSPOE-SWA Series Datasheet (PDF)
