Akuvox SIP 7″ touch video intercom monitor – C313S – Silver
Login, Register, or Call for Price

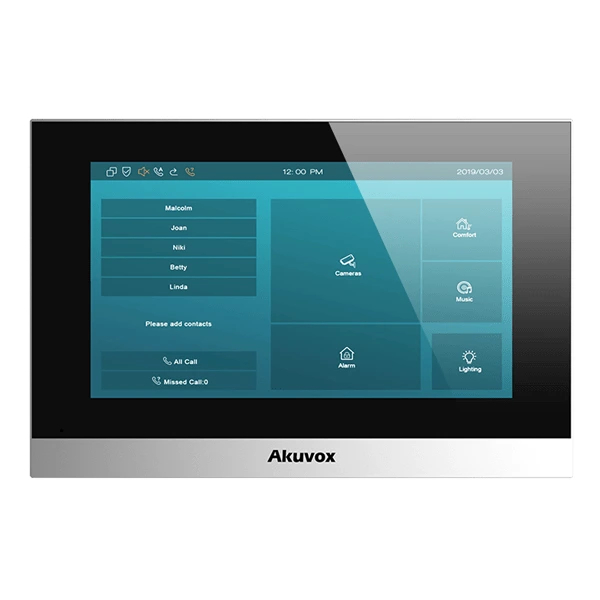

Akuvox C313S 7 inch touch screen display. Works as indoor monitor, provides audio & video communication with Door intercoms via SIP 2.0 Protocol.
Description
The Akuvox C313S is a low cost 7″ Linux based touch screen monitor for use with Akuvox SIP video intercom door stations. It also includes an 8 zone security system for added securty in your home. You can view IP cameras and the door station from the touch interface. Call other intercom monitors for a room to room voice intercom system. Powered by PoE for an easy installation.
The C313S multifunctional communicator, which works as an indoor monitor, provides audio and video communication with Door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display. It also has an energy saving mode
Touch Screen Display
Display Type: Active matrix TFT, transmissive type
Size: 7 inch (176 mm) diagonal
Aspect Ratio: 16:9
Resolution: 800×480
Brightness: 220 (cd/m²)
Contrast: 500:1
Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
Touch Screen: Projected Capacitive
Video
Streaming Formats: H.264
Audio
SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711?, G.729
Broadband audio codec: G.722
DTMF: Out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Memory
RAM: 64MB
Flash: 128MB
Interface
Ethernet: 2×10/100 Mbps ports, adaptive
Relay Out: 1x relay out (NO/COM/NC)
Alarm In: 8x alarm input terminals
Bell In: 1x bell input terminal
RS485: 1x RS485 communication port
Environmental
Temperature: 32° to 113°F (-10° to 45°C)
Humidity: 10% to 90% (non-condensing)
Mechanical parameters
Dimensions (W x H x D): 200 x 132 x 17.5 mm
Application Scenario
Download the brochure from the link below.
Datasheet
Admin Guide
