Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
RJ45 port supports 10/100Mbps adaptive
PoE port automatically activates PoE watchdog mode in VLAN and Extend modes
Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard
Supports automatic port flipping (Auto MDI/MDIX)
The panel indicator lights will monitor the working status and assist in fault analysis
Supports three modes: VLAN, Default, and Extend
Description
Specification
Model
AN42N
Interface
4 *100Mbps PoE ports
2 *100Mbps uplink RJ45 ports
Port Standard
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3x (Flow Control)
Switching Capacity
1.2Gbps
Packet Forwarding Rate
0.8928Mpps
Packet Buffer
768Kbit
MAC Address Table
2K
Transmission Method
Store and Forward
PoE Standard
IEEE802.3af ?15.4W?
IEEE802.3at ?30W?
PoE Port Output Voltage
DC 44-57V
PoE Ports
Port 1-4 PoE power output <30W
PoE Power Budget
60W
Surge Protection
Surge protection: common mode 4KV
Operating Temperature
0~40°C
Storage Temperature
-40 °C to 70 °C
Operation Humidity
10%~90%?non condensing
Storage Humidity
5%~95%?non condensing
Power Supply
AC 100-240V 50/60Hz
DC 52V 1.25A
Mainboard Power Consumption
1.93W
Structure Information
Product Dimensions: 200*118*44mm
Packaging Dimensions: 245*190*60mm
Product Net Weight: 0.60KG
Product Gross Weight: 0.86 KG
Packing Information
Carton Dimensions: 520*320*400mm
Packing Quantity: 20PCS
Packing Weight: 17.4KG
Package Contents
Switch 1pcs, power cord 1pcs, manual 1pcs?certificate of qualification 1pcs
Fan Quantity
0
Installation
Desktop
Surge Protection
Surge protection: common mode 4KV, differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
PWR
On: Powered on
Off: Powered off
SW
On: VLAN
Blinking: Extend
Off: Off
1-6 Green Light
On: Link normal
Off: Link blocked
Blinking: Data transmitting
VLAN/OFF/Extend Modes Buttons
VLAN: Isolation mode, 1-4 ports isolated from each other, communicating with 5-6 ports?and enable PoE watchdog mode on ports;
OFF: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, and port PoE watchdog mode turned off;
Extend: Link extension mode, 1-4 port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps?and enable PoE watchdog mode on ports;
This switch is supplied as an optional power supply and switch for any Fanvil product including VIK-01
Please download documents from the following links:

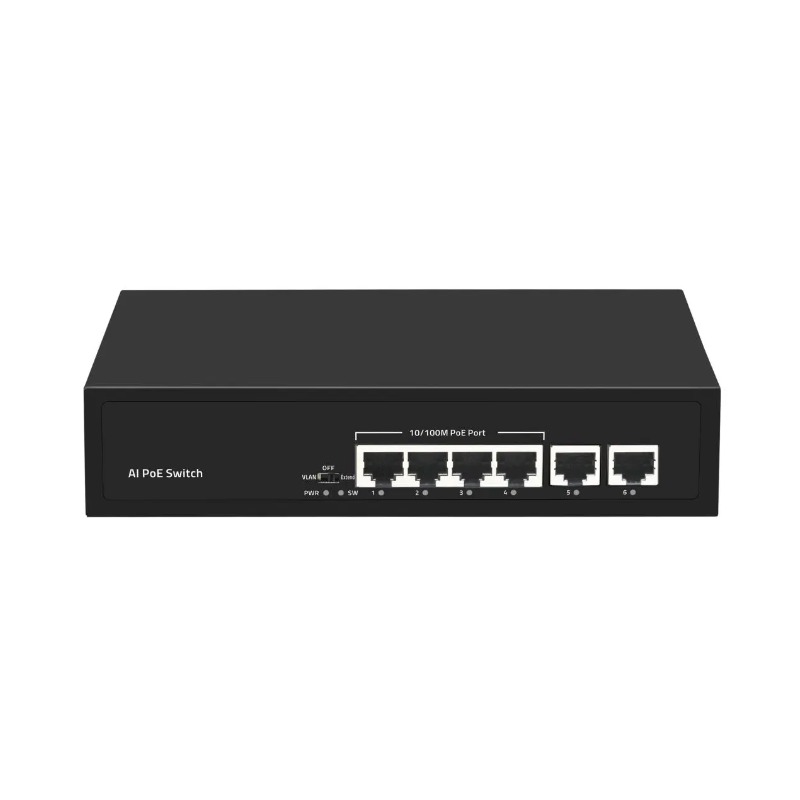

AN42N – 4 Port PoE Switch
Guest Price – Login to see Member Pricing
$72.00Original price was: $72.00.$61.60Current price is: $61.60.AN42N 4 Port PoE Switch
Description
AN42N 4 Port PoE Switch
Highlights:
Please download documents from the following links:
AN42N-ANG82NS-POE-switch-user-manual
