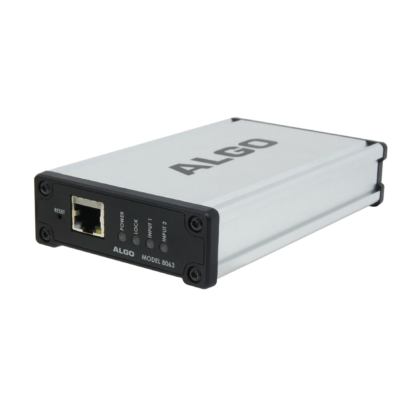

The Algo 8063 IP Door Controller is a compact and capable PoE powered digital IO interface designed specifically for door opening control and IP integration with legacy facility infrastructure
IP Digital IO Module for Door Control & Automation
The Algo 8063 IP Door Controller is a compact and capable PoE powered digital IO interface designed specifically for door opening control and IP integration with legacy facility infrastructure. The 8063 is fully compatible with Algo 8036, 8039, and 8201 intercoms for secure door control.
The 8063 IP Door Controller is UL/CSA FCC and CE certified.
Features
SIP or multicast triggered relay events.
Two relay outputs and two “digital” inputs compatible with dry contact closure.
Configuration via user friendly web interface or auto-provisioning.
Compatible door control relay for Algo 8036 8039 and 8201 intercoms.
PoE IEEE 802.3af.
One relay output for door control NO C NC.
24V output to power door strike or solenoid.
Door & Gate Opening Control

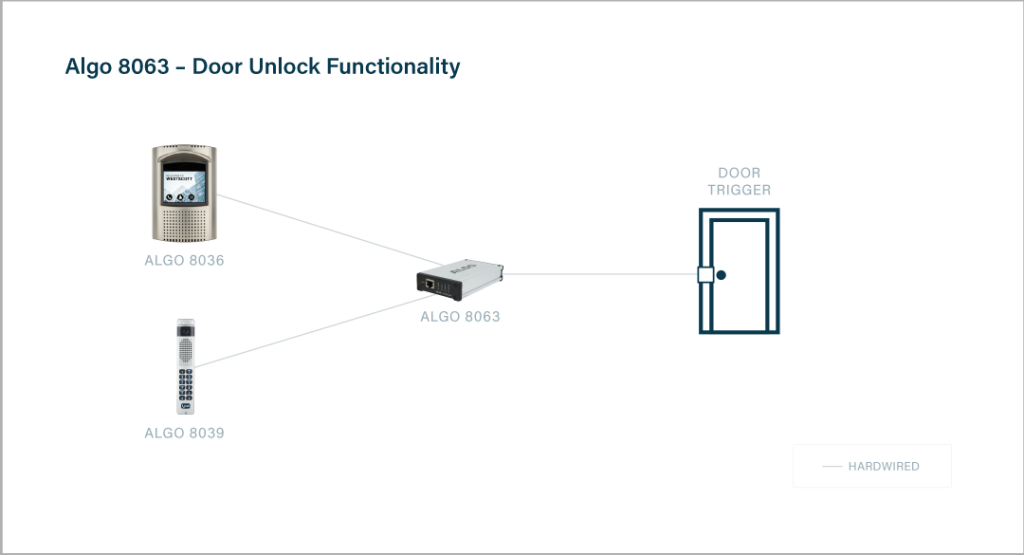

The 8063 IP Door Controller is specifically designed to provide door opening control in combination with Algo 8036, 8039 and 8201 intercoms. The controller provides an interface to peripheral hardware such as door strikes and alarm / access control systems.
Door control functions and configurations are managed via a web interface and include:
Access control by either entering a door open code via the intercom keypad (e.g., 8036 or 8039), or by dialing a code on the telephone / device receiving the intercom call.
The 8063 can be located in a secure location inside the building to prevent access or tampering via the public facing intercom station.
Note: A door control relay located within the intercom itself has the potential to be compromised, and thus presents a significant security issue. To address this concern, the 8063 is located inside a building or in a secure location.
Benefits of the PoE Algo 8063 IP Door Controller
Network managed and supervised IP endpoint.
Seamless relay activation for Algo intercoms / doorphones using telephone or intercom keypad (if equipped) for secure door or gate entry, e.g, unattended lobby, airport, hotels, hospital ward, gated entrance, parking lot, yard.
PoE (IEEE 802.3af/at) for plug-and-play network connectivity.
Specifications
Power
Power Input
PoE / PoE+
Max Power
30W (PoE+ using 24V output at maximum current)
Idle Power
2W
SIP
SIP Extensions
UDP, TCP, RTP, TLS, SRTP
MTLS (Mutual Authentication)
Configuration & Provisioning
Configuration
Web interface or provisioning server
Web Interface
HTTP, HTTPS
Provisioning
TFTP, FTP, HTTP, HTTPS
DHCP Options 66, 150, 160
Reboot via SIP ‘check-sync’
Supervision
Compatible with any third party SNMP monitoring software or the Algo 8300 Controller
Multicast
Receive up to 50 zones for relay activation
Networking
Networking
IPv4, IPv6, DHCP, VLAN, MDNS
QoS
DSCP (SIP, RTP)
NAT
STUN, CRLF Keep Alive
Address Resolution
DNS
Redundancy
Secondary and tertiary SIP server
Time
1 NTP Server
API
RESTful
Input / Output
Input relay
2 Dry contact NO or NC
Door Control Relay
NO, C, NC Max 30V 2A
Auxiliary Relay
NO Max 30V 1A
24Vdc Output
Isolated, Max 200 mA with PoE or Max 500 mA with PoE+
Environmental & Mechanical
Environmental
0 to + 40° C (32 to 104° F); 10-95% RH non-condensing.
Dry indoor locations only
Dimensions (Shipping)
5.5” x 3.0” x 8.5” (14cm x 7.6cm x 22cm)
Weight (Shipping)
1.3 lbs (0.6 kg)
Compliance
IEEE 802.3-2018, RoHS, CE, FCC Class B, CISPR 22 Class A, CISPR 32 Class B, CISPR2 24, CSA/UL (USA & Canada), IEC 62368-1
Please download documents from the following links:
Algo 8063 SIP PoE Door Controller
Guest Price – Login to see Member Pricing
$763.62
The Algo 8063 IP Door Controller is a compact and capable PoE powered digital IO interface designed specifically for door opening control and IP integration with legacy facility infrastructure
Description
8063 IP Door Controller
IP Digital IO Module for Door Control & Automation
The Algo 8063 IP Door Controller is a compact and capable PoE powered digital IO interface designed specifically for door opening control and IP integration with legacy facility infrastructure. The 8063 is fully compatible with Algo 8036, 8039, and 8201 intercoms for secure door control.
The 8063 IP Door Controller is UL/CSA FCC and CE certified.
Features
Door & Gate Opening Control
The 8063 IP Door Controller is specifically designed to provide door opening control in combination with Algo 8036, 8039 and 8201 intercoms. The controller provides an interface to peripheral hardware such as door strikes and alarm / access control systems.
Door control functions and configurations are managed via a web interface and include:
Note: A door control relay located within the intercom itself has the potential to be compromised, and thus presents a significant security issue. To address this concern, the 8063 is located inside a building or in a secure location.
Benefits of the PoE Algo 8063 IP Door Controller
Specifications
Please download documents from the following links:
8063-User-Guide
8063-Product-Sheet
