The NVD-A9 is an IP video decoder that allows for configuration of up to 9 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.
Product features:
• Roaming decoder displays all video feeds on network
• Video wall splicing for up to 36 displays per monitor
• Split screen control with zoom/merge/roam/overlay
• Switch between standard & high definition streams
• Decode up to 12CH 4K, 48CH 1080p or 144CH D1
• Support for audio, alarm, bi-directional talk, RS232, RS485
• Fisheye dewarp & multi-video split display
• Manage via web browser or VIP Vision™ SmartPSS
Specification
Alarm Input
4ch
Alarm Output
4ch relay out (30VDC 1A, 125VAC, 0.5A)
Audio Format
PCM / G.711 / AAC
Bi-directional Talk
1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10K?,2.0V / 16? out)
Collection Resolution
4096 x 2160 @ 24fps / 3840 x 2160 @ 30fps / 1920 x 1080 and lower @ 60fps
Communication Interface

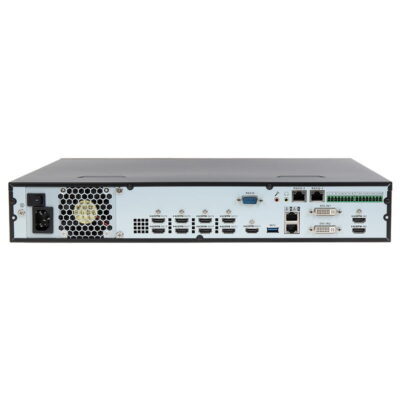

1 RJ45 network port (10M/100M/1000M); 2 RS232; 1 RS485

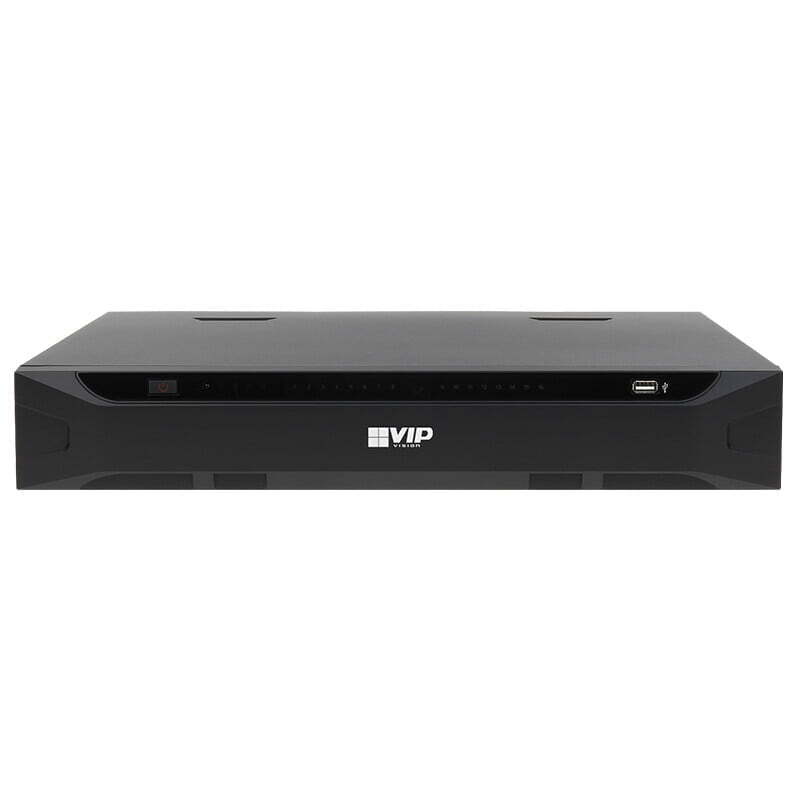

Ultra HD Network Video Decoder (9 x HDMI Out)
$5,179.90$3,696.43Description
The NVD-A9 is an IP video decoder that allows for configuration of up to 9 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.
Product features:
• Roaming decoder displays all video feeds on network
• Video wall splicing for up to 36 displays per monitor
• Split screen control with zoom/merge/roam/overlay
• Switch between standard & high definition streams
• Decode up to 12CH 4K, 48CH 1080p or 144CH D1
• Support for audio, alarm, bi-directional talk, RS232, RS485
• Fisheye dewarp & multi-video split display
• Manage via web browser or VIP Vision™ SmartPSS
Specification
Documents
Download documents from the following links:
VIP Vision NVD-A Series Quick Start Guide (PDF)
VIP Vision NVD-A Series User Manual (PDF)
VIP_Vision_NVD-A_Series_Datasheet_PDF
