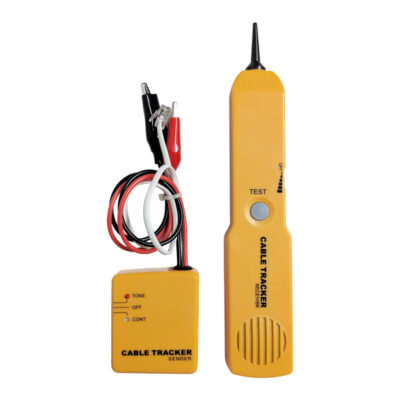

The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation. Work with any Tone Generator to identify wires, volume control for increased sensitivity and adjustable to suit work environment.
Tone Generator is great tool for locating and Identifying cable pairs or individual conductors. This is also function as a continuity and polarity tester. Test results displayed on the three-colored led.
Specifications
Alternating Tone
V
Connection
RJ11 connector, RJ45 connector (optional)
Operating Temperature & Humidity
0°C ~ 40°C, 80% Max
Over Voltage Protection
100V DC
Power Source
Probe 9V battery, Tone Generator 9V battery
Probe Dimensions
270(L) x 50(W) x 25(H)mm
Probe Operating Frequency
1Hz~12kHz
Receiver Distance
<50cm
Sensitivity Control
V
Single Tone
V
Tone Generator Dimensions
64(L) x 58(W) x 34(H)mm
Tone Generator Operating Frequency
1kHz±15%
Waveform
Square wave
Weight
250g
Warranty (Years)
1

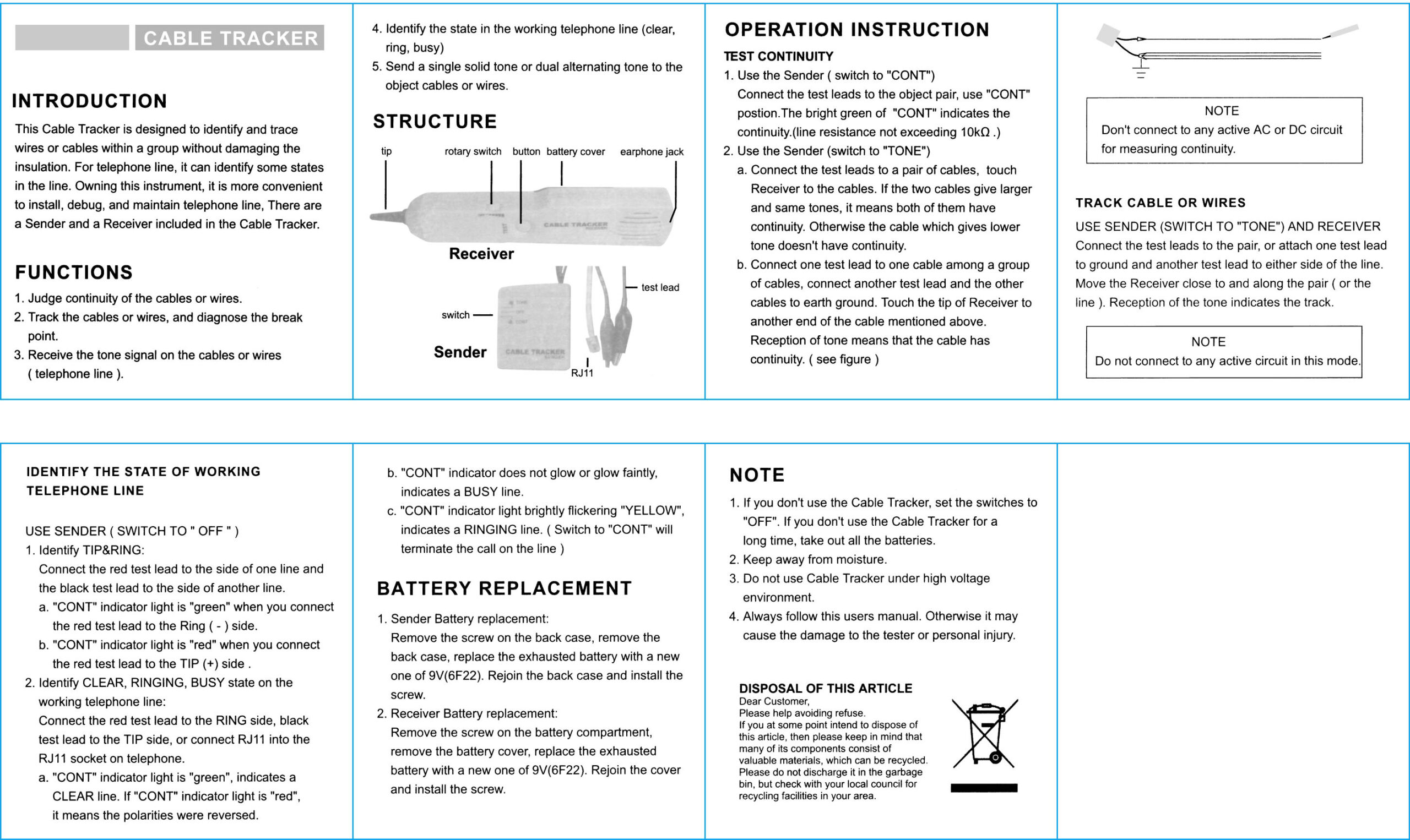

Please download documents from the following links:
Cable Tracer – Tone Generator & Probe – VSCABLETRACER-C
Guest Price – Login to see Member Pricing
$159.00Original price was: $159.00.$117.61Current price is: $117.61.Cable Tracer – Tone Generator & Probe – Tools and Test Equipment > Cabling Tools
Description
The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation. Work with any Tone Generator to identify wires, volume control for increased sensitivity and adjustable to suit work environment.
Tone Generator is great tool for locating and Identifying cable pairs or individual conductors. This is also function as a continuity and polarity tester. Test results displayed on the three-colored led.
Specifications
Please download documents from the following links:
Please ask your product question below:
