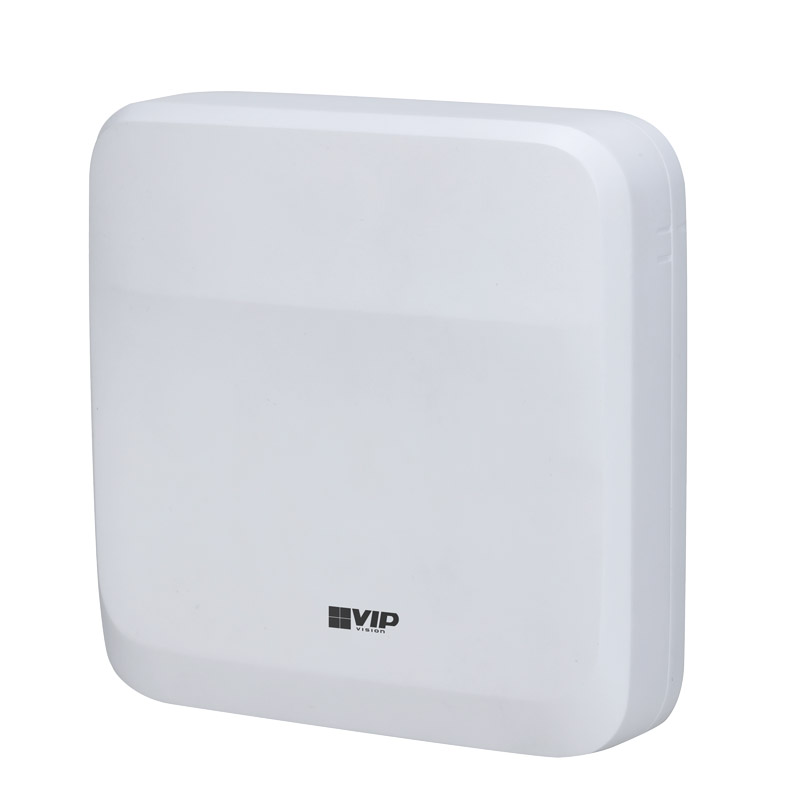

VIP Vision 2-Door Web Access Controller Module – AC-WCM

Name: VIP Vision 2-Door Web Access Controller Module - AC-WCM
Brand: VIP Vision
SKU: AC-WCM
Price: 301.29 AUD
Availability: InStock

Guest Price – Login to see Member Pricing

Original price was: $369.00.Current price is: $301.29.

VIP Vision 2-Door Web Access Controller Module – Access Control > Professional Access Control

SKU: AC-WCM Category: VIP Vision Access Control

Free Shipping for orders over $600 (AU Only)*

Brand: VIP Vision

Description

The AC-W Series comprises powerful and flexible access control systems designed to deliver secure and scalable access management for commercial applications.

The AC-WCM web control module acts as central command for your access control system, managed simply via your network within your web browser. Cascade web control modules to grow your system to manage up to 40 doors, perfect for securing small to medium enterprises. To scale further, combine multiple systems via Access Management Platform software, built for large enterprise deployments.

Features:

Built-in web server for master and sub configuration
Power via PoE and output 12VDC 1A to door locks
Access features incl. first-person unlock, global anti-passback and more
Combine up to 20 modules to control up to 40 doors
Web control module supports up to 1000 users
Manage users, roles, keys, codes via web browser
Accesses readers via Wiegand & RS-485 protocols

Specifications

System

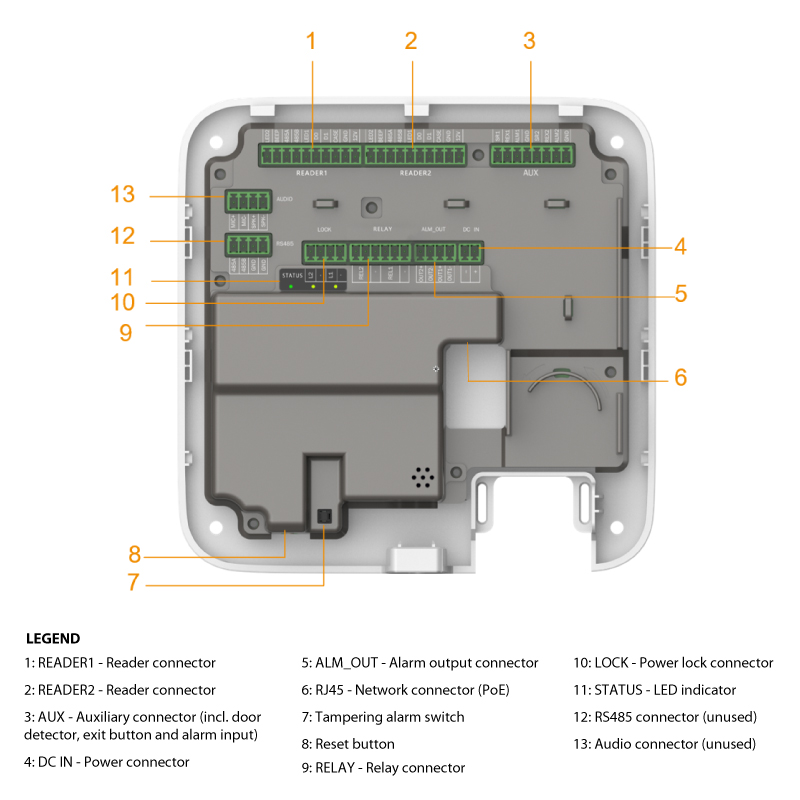

Input Ports

2 x Door Status, 2 x Lock Control, 2 x Exit Button, 2 x Alarm Input/Output, 1 x RJ-45, 2 x Wiegand, 3 x RS-485

Output Ports

2 x Door lock, 2 x Alarm output

Main Processor

Embedded Processor

Memory

Embedded

Reader Ports

Card Memory

5,000 (as Main Controller), 50,000 (as Sub Controller)

Event Memory

Up to 300,000 Events

Function

Access Control

First-Person Unlock, Multi-Person Unlock, Multi-Door Interlock, Global Anti-Passback, Global External Alarm, Blocklist/Allowlist, Real-time Monitoring, Multi-Factor Authentication, Web Configuration, Network Software Updates, Multi-User Authentication (via Management Platform only)

User Management

General, VIP, Guest, Patrol, Blocklist, Other

Alarm Function

Door Sensor Timeout, Tamper Alarm, Duress Alarm via Card or Fingerprint, Intrusion Alarm, Illegal Card

Period

Schedule up to 128 General Purpose Periods and up to 128 Holiday Periods

Network

Ethernet

RJ-45 (10/100Base-T)

Reader Interface

RS485 / Wiegand 34

Environmental
