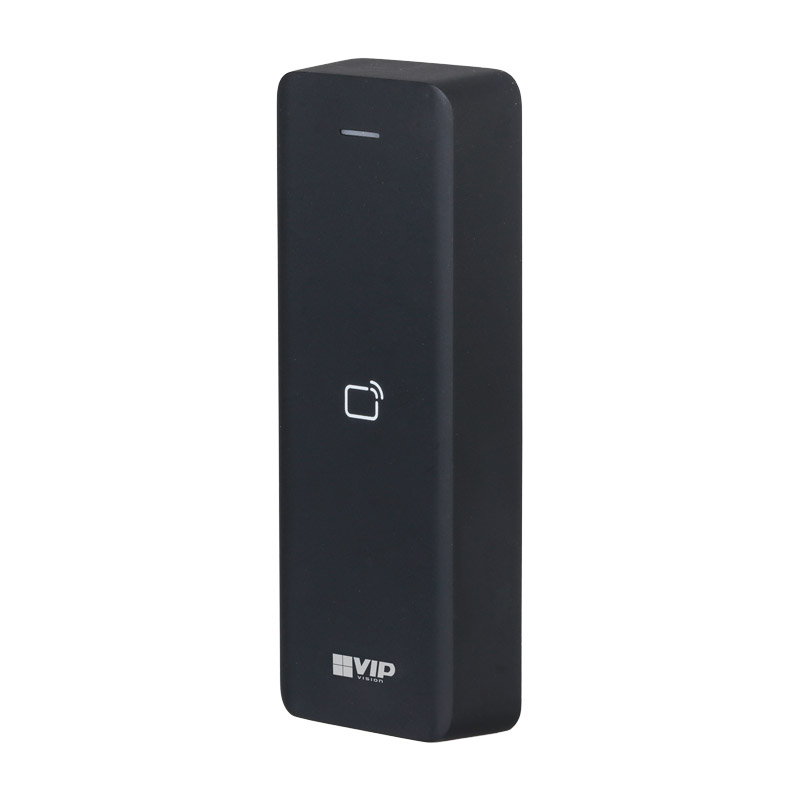

VIP Vision Access Control Card Reader - Slimline 2 - AC-WRC-C
Sale!
VIP Vision Access Control Card Reader - Slimline 2 - AC-WRC-C - Image 2
VIP Vision Access Control Card Reader - Slimline 2 - AC-WRC-C - Image 3

VIP Vision Access Control Card Reader – Slimline 2 – AC-WRC-C

Guest Price – Login to see Member Pricing

Original price was: $55.00.Current price is: $42.35.

VIP Vision Access Control Card Reader – Slimline 2 – Access Control > Professional Access Control

SKU: AC-WRC-C Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The AC-WRC-C reader in the AC-W Series is a slimline, surface mount card authentication reader, with durable design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.

Features:

  • Card reader authentication
  • Web management via controller and web browser
  • RS-485 or Wiegand protocol via 13.56MHz RFID
  • Reader can enroll new access cards or keyfobs
  • RGB LED and chime for user audio/visual prompts
  • Polycarbonate housing with anti-tamper alarm
  • IP66 weather rated (fitted as per install guidelines)

Register for Member Pricing



Specifications

Access
Product
Card Reader
Communication
RS-485 / Wiegand 34
RFID Format
13.56MHz (Mifare)
RFID Read Range
?8cm
RFID Read Time
0.1s
Fingerprint Scan
–
Keypad
–
Function
Audio
Buzzer
Light
RGB LED Indicator Light
Tamper Switch
Yes
Environment
Ingress Protection
IP66 (when fitted as per product installation guidelines)
Vandal Protection
–
Power Supply
12VDC 0.5A, Consumption: ?0.5W (Standby), ?1.7W
Operating Conditions
-30°~+70° C / <95% RH

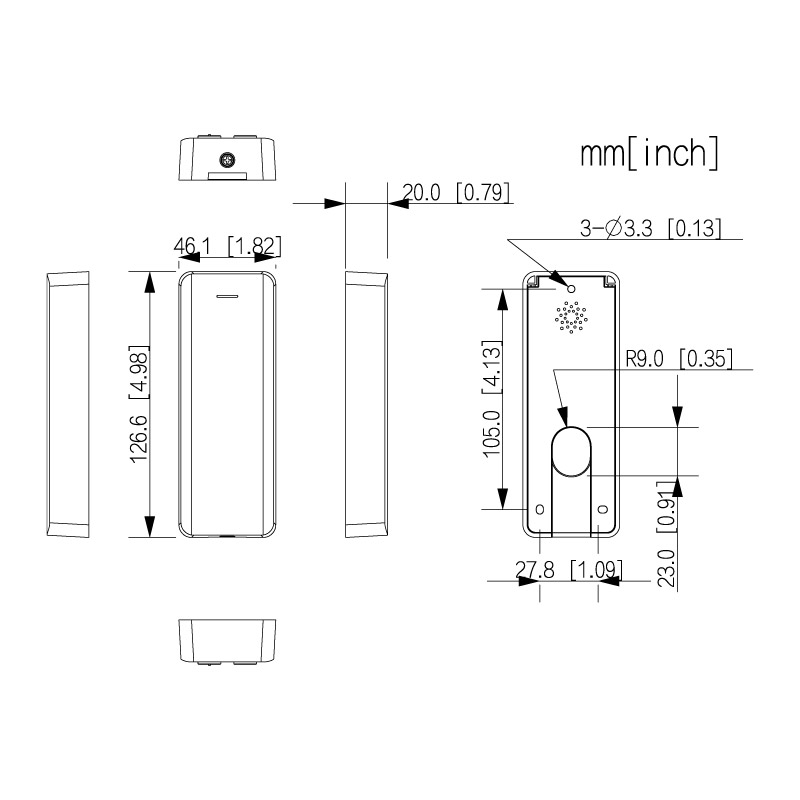

Dimensions
127 x 46 x 20mm
Net Weight
0.10kg
Warranty (Years)
4
