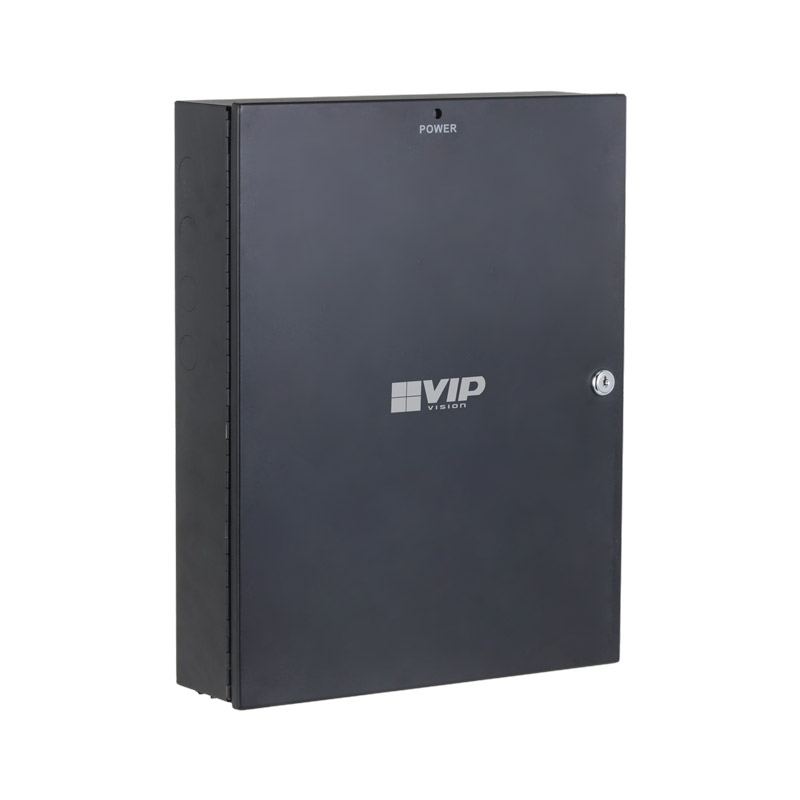

VIP Vision Access Control Battery Backup Cabinet - AC-WSB
Sale!
VIP Vision Access Control Battery Backup Cabinet - AC-WSB - Image 2
VIP Vision Access Control Battery Backup Cabinet - AC-WSB - Image 3
VIP Vision Access Control Battery Backup Cabinet - AC-WSB - Image 4

VIP Vision Access Control Battery Backup Cabinet – AC-WSB

Guest Price – Login to see Member Pricing

Original price was: $298.85.Current price is: $248.05.

VIP Vision Access Control Battery Backup Cabinet – Access Control > Professional Access Control

SKU: AC-WSB Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VIP Vision Access Control Battery Backup Cabinet is a durable enclosure designed to securely house, monitor and provide backup power to the AC-WCM web controller in AC-W Series Professional Access Control.

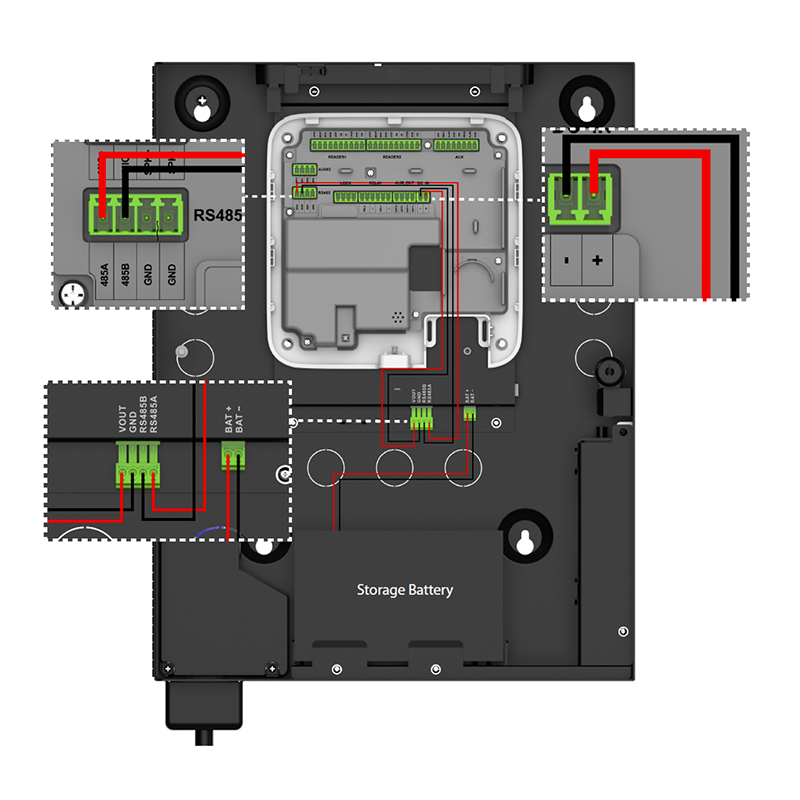

The cabinet connects to the controller via RS-485 to report monitored events of the cabinet, including mains power loss, mains power recovery and tamper events. The cabinet also features an air circuit breaker for overload and short circuit protection.

Features:

Register for Member Pricing

  • Galvanised steel cabinet construction with door lock
  • Supports standard 12VDC 7A battery* for backup power
  • Monitoring of main power loss, main power recovery, tamper (via RS-485 extension)
  • Built-in air circuit breaker for overload and short-circuit protection
  • 240VAC power input with 15VDC 4A output
  • Surface-mount design with simple wall installation
  • *12VDC 7A backup battery not included

Specifications

Battery Backup
12VDC 7Ah
Dimensions

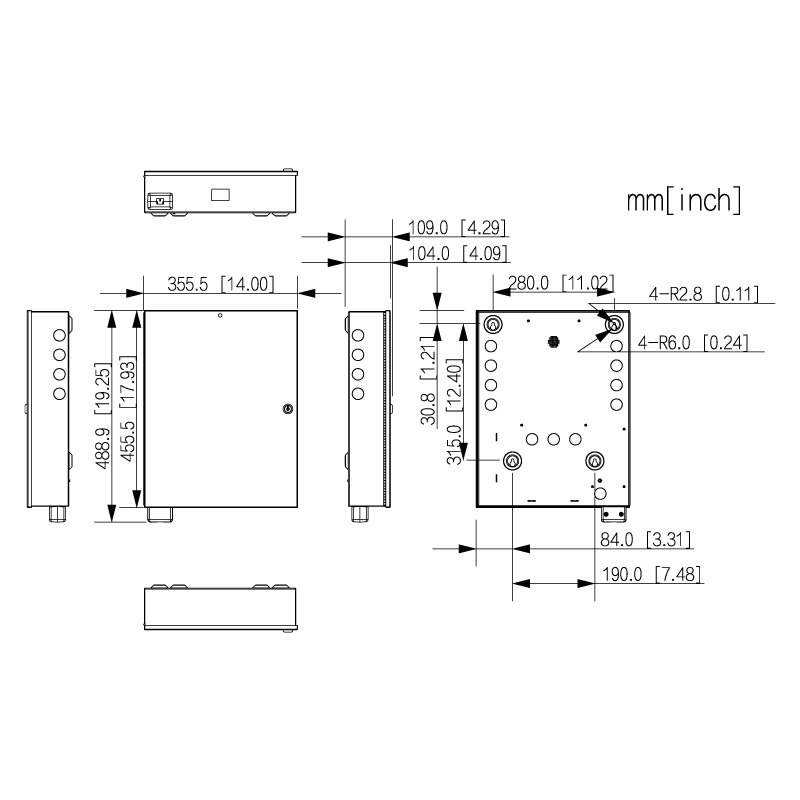

456 x 356 x 109mm
Event Reporting
Via RS-485 Extension: Main Power Failure, Main Power Recovery, Tamper
Features
12V7Ah Backup Battery Enclosure, Air Circuit Breaker, Firmware Update, Event Reporting, Anti-Tamper Output
Housing
Galvanised steel plate
Operating Conditions
Less than 95% RH / Indoors only
Power Input
100~240VAC 1.5A
Power Output
15VDC 4A
Weight
9.00kg
Warranty (Years)
4



Please download documents from the following links:
