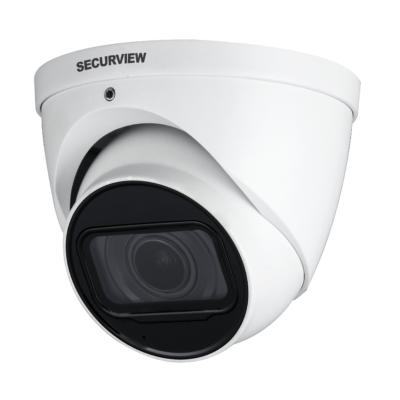

Professional Series 5.0MP Motorised HDCVI Turret
Sale!
Professional Series 5.0MP Motorised HDCVI Turret
Professional Series 5.0MP Motorised HDCVI Turret
Professional Series 5.0MP Motorised HDCVI Turret
Professional Series 5.0MP Motorised HDCVI Turret
Professional Series 5.0MP Motorised HDCVI Turret

Professional Series 5.0MP Motorised HDCVI Turret – VSCVI-5DIRMG2

Original price was: $229.00.Current price is: $152.46.

Professional Series 5.0MP Motorised HDCVI Turret

SKU: VSCVI-5DIRMG2 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

With high resolution image quality up to 5.0MP and a compact, weather resistant metal casing body, the VSCVI-5DIRMG2 captures excellent video footage, ultra-low light performance, long range infrared, and zero image distortion with its flat lens cover.

Camera features:
• Stream up to 5.0MP (2880 × 1620) at 25fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 31.4° ~ 113° horizontal viewing angles
• Superb colour image performance in low light at 0.001lx
• Smart infrared illumination, up to 60m range
• CVI / TVI / AHD / CVBS / Analog switchable (DIP switch)
• True WDR (120dB) and 3D noise reduction
• IP67 rated weather resistant metal housing
• Dual power input 12VDC/24VAC
• Switch modes via DIP switches

Specifications

General
Image Sensor
1/2.7” 5.0 Megapixel CMOS
Max. Resolution
5.0 Megapixel
Effective Pixels
2880 (H) × 1620 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.7mm ~ 13.5mm F1.6 Motorised Lens, fixed iris
Lens Type
Motorised Varifocal
Angle of View
31.4° ~ 113° (H) / 17.6° ~ 58° (W)
Focus
Fixed / 0.8m Min. Focus Distance
Minimum Illumination
0.001 Lux at F1.8 (Colour) / 0 Lux IR Active
Electronic Shutter
1/3s ~ 1/100,000s
Day/Night
Auto (ICR) / Color / B&W
Infrared Range
60m
White Balance
Auto / Manual
Noise Reduction
3D
Gain Control
Auto / Manual
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m
Observe (63px/m)
26m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
5.0MP (2880 × 1620) to CIF (352 x 288)
Frame Rate
25fps (5.0MP and lower)
Transmission Distance
Rated for up to 700m via coaxial cable (performed in ideal test conditions)
Interface
Audio Input
1 channel in Built-in Mic
Alarm Interface
N/A
Video Output
1 x CVI / TVI / AHD / CVBS / Composite Video Output (DIP switch)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
DIP Switches
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Metal casing
Camera Type
Dome
Tri-Axis Mounting
No
Power Input
12VAC/12VDC
Power Consumption
< 9.5W

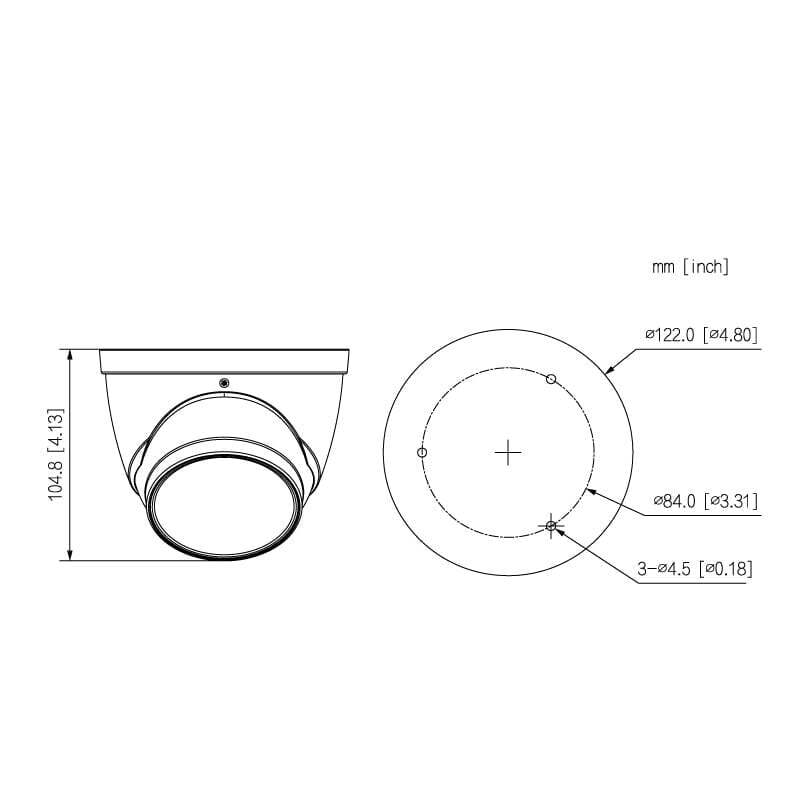

Dimensions
Ø122mm x 107mm
Weight
0.64kg
Operating Environment
-30° to 60°C / RH90% (max)
Warranty (Years)
4



Register for Member Pricing

Download documents from the following links:

Secureview Victory VSCVI-5DIRMG2 (pdf)
