The VSCVI8MPVDIRM features an auto iris motorised lens, dual voltage, true WDR and alarm/audio inputs. Experience incredible Ultra HD resolution footage for HDCVI recorders.
Camera features:
• Stream up to Ultra HD 8.0MP (3840 x 2160)
• Motorised varifocal lens with auto-iris (DC)
• Smart infrared illumination, up to 100m range
• Up to 700m 8.0MP video transmission over coaxial cable (performed under ideal test conditions)
• Dual BNC outputs for HD and composite video
• Dual voltage compatible: 12VDC and 24VAC
• True WDR (120dB) and 2D/3D noise reduction
• IP67/IK10, metal weather rated camera housing
Backwards compatible: HDCVI/Analogue dual BNC video outputs.
Analogue mode configuration via on-camera buttons, OSD or tester.
Specification
Alarm Interface
2 channel in / 1 channel out
Analogue Support
Yes (Dual output)
Angle of View
112° (wide) ~ 46° (tele)
Audio Input
1 channel in
Camera Type
Dome
Day/Night
Auto (ICR) / Colour / B&W
Detect (25px/m)
83m (wide) / 190m (tele)

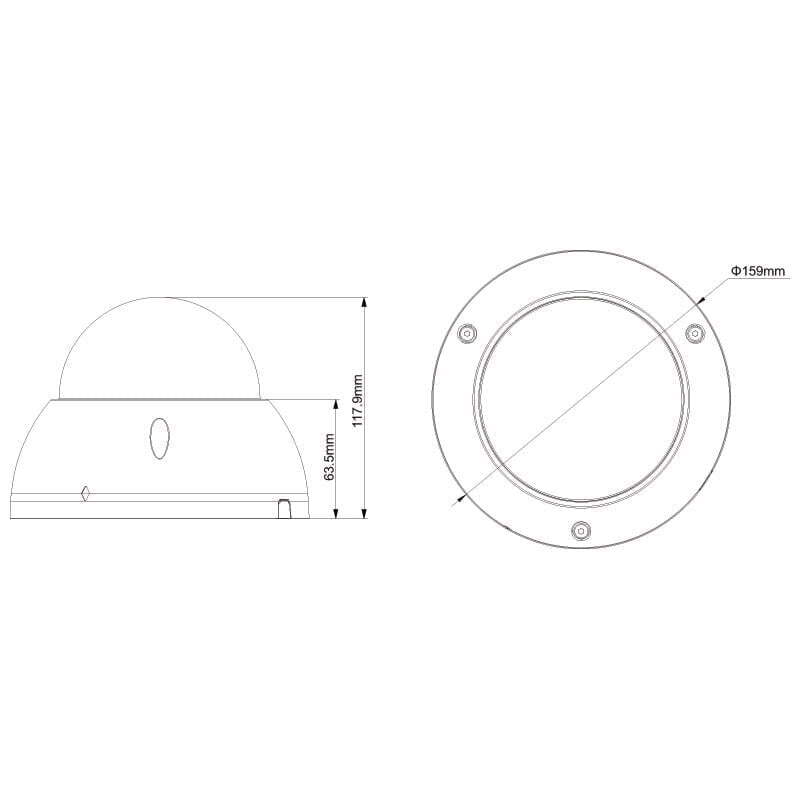

Dimensions
Ø159 x 118mm
Effective Pixels
3840 (H) x 2160 (V)
Electronic Shutter
1/3 ~ 1/100,000s
Focus
Auto/Manual Focus / 0.2m Min. Focus Distance
Frame Rate
12fps (8.0MP) / 25fps (4.0MP and lower)
Gain Control
Auto
Housing
Metal, Polycarbonate
Identify (250px/m)
8m (wide) / 19m (tele)
Image Sensor
1/2” 8.0 Megapixel CMOS
Infrared Range
50m
Ingress Protection
IP67
Lens
3.7 ~ 11mm F1.5 Motorised Lens; Auto Iris
Lens Type
Motorised Varifocal
Lighting Compensation
BLC / HLC / WDR (120dB)
Max. Resolution
8.0 Megapixel
Minimum Illumination
0.01 Lux at F1.5 (Colour) / 0 Lux IR Active
Noise Reduction
2D / 3D
Observe (63px/m)
33m (wide) / 6m (tele)
Operating Environment
-30° to 60°C / RH95% (max)
OSD Menu
Support
Power Consumption
< 12.4W
Power Input
12VDC / 24VAC
Recognise (125px/m)
17m (wide) / 38m (tele)
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Signal Noise Ratio
> 65dB
Synchronisation
Internal
Transmission Distance
Over 500m via 75-3 coaxial cable
Tri-Axis Mounting
Yes
Vandal Resistant
IK10
Video Compression
H.264 / MJPEG
Video Output
2 x BNC video output (1 x HD / 1 x SD)
Weight
0.90kg
White Balance
Auto
Please download documents from the following links:
Ultimate Series 8.0MP WDR Motorised HDCVI Dome – VSCVI8MPVDIRM
Guest Price – Login to see Member Pricing
$393.25Original price was: $393.25.$332.75Current price is: $332.75.Description
The VSCVI8MPVDIRM features an auto iris motorised lens, dual voltage, true WDR and alarm/audio inputs. Experience incredible Ultra HD resolution footage for HDCVI recorders.
Camera features:
• Stream up to Ultra HD 8.0MP (3840 x 2160)
• Motorised varifocal lens with auto-iris (DC)
• Smart infrared illumination, up to 100m range
• Up to 700m 8.0MP video transmission over coaxial cable (performed under ideal test conditions)
• Dual BNC outputs for HD and composite video
• Dual voltage compatible: 12VDC and 24VAC
• True WDR (120dB) and 2D/3D noise reduction
• IP67/IK10, metal weather rated camera housing
Backwards compatible: HDCVI/Analogue dual BNC video outputs.
Analogue mode configuration via on-camera buttons, OSD or tester.
Specification
Please download documents from the following links:
