Hybrid Provision-ISR IP Camera
20M IR 2MP Fixed Lens Dome - DH-320IPSN-28 - Image 2
20M IR 2MP Fixed Lens Dome - DH-320IPSN-28 - Image 3

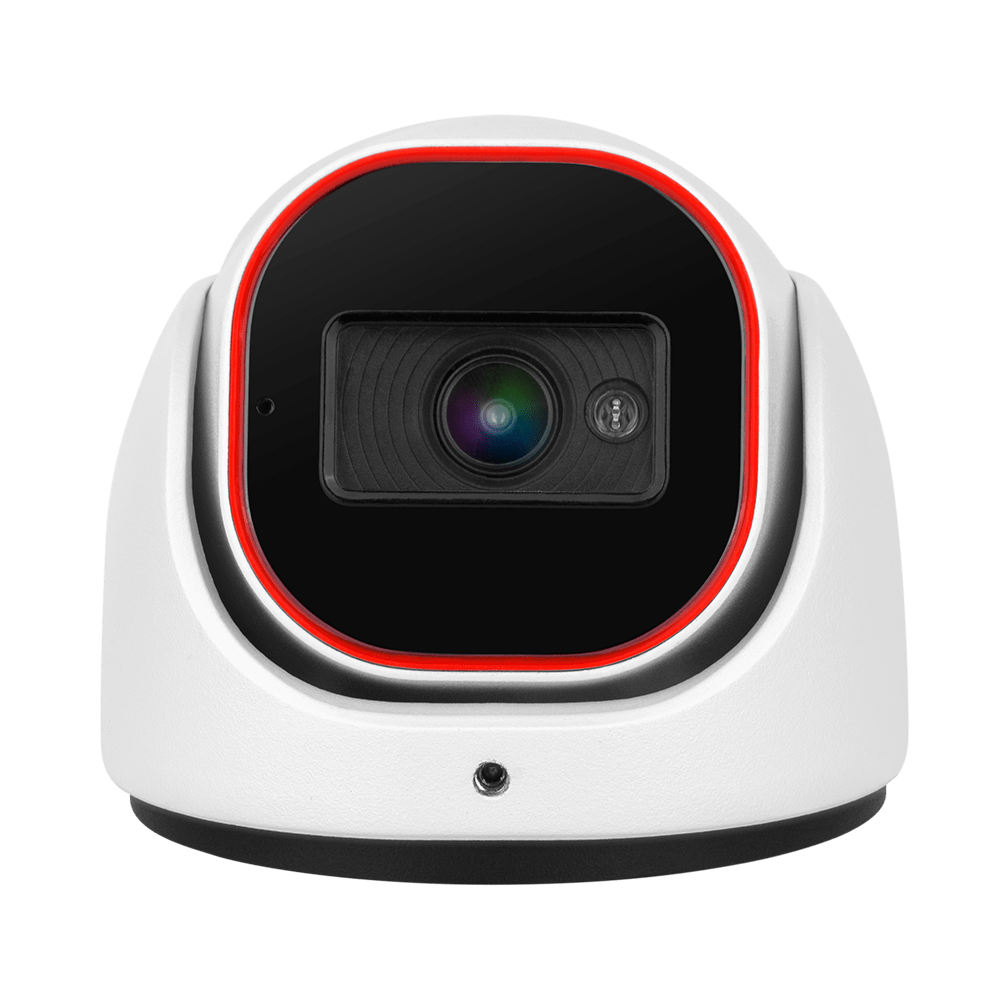

20M IR 2MP Fixed Lens Dome – DH-320IPSN-28

Login, Register, or Call for Price

2MP Fixed Lens Dome/Turret Camera with Hybrid LED and DDA1 Analytics
SKU: DH-320IPSN-28 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP Fixed Lens Dome/Turret Camera with Hybrid LED and DDA1 Analytics

Equipped with a 2.8mm fixed lens, this 2MP Dome camera is designed for short-distance surveillance (up to 20m) in indoor and outdoor scenarios.

With its hybrid capability, the white LED will enlighten the scene when humans being detected for full color image even in dark scenarios. The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform human and vehicle recognition. With various detection rules and triggers.

This model complies with NDAA demands and ensures your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime. With its outstanding performance, reliability, and affordable price, the DH-320IPSN-28 camera is the perfect solution for any simple IP installation.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

8mp-hybrid-fixed-cpe-features

DH-320IPS-28 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.008lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / D1 (704×576) / VGA (640×480), QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Sub-Stream: VGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (104°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
41m(133ft)
Recognize
8m(27ft)
Identify
4m(13ft)

Network

User Access
Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply
DC12V/~400mA / PoE/~7W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~550g
Hard Reset Button
Yes


Documents

DH-320IPSN-28

Software:

Register for Member Pricing

Latest CMS Version

Latest CMS for MAC

Latest IP Tool

2MP Fixed Lens Dome/Turret Camera with Hybrid LED and DDA1 Analytics

Register for Member Pricing

Equipped with a 2.8mm fixed lens, this 2MP Dome camera is designed for short-distance surveillance (up to 20m) in indoor and outdoor scenarios.

With its hybrid capability, the white LED will enlighten the scene when humans being detected for full color image even in dark scenarios. The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform human and vehicle recognition. With various detection rules and triggers.

This model complies with NDAA demands and ensures your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime. With its outstanding performance, reliability, and affordable price, the DH-320IPSN-28 camera is the perfect solution for any simple IP installation.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

8mp-hybrid-fixed-cpe-features

DH-320IPS-28 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/3s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.008lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Item Monitoring, Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP (1920×1080) / D1 (704×576) / VGA (640×480), QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Sub-Stream: VGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (104°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
41m(133ft)
Recognize
8m(27ft)
Identify
4m(13ft)

Network

User Access
Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile M/T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power Supply
DC12V/~400mA / PoE/~7W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~550g
Hard Reset Button
Yes


DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DH-320IPSN-28

Detect (25px/m)
41m

Observe (63px/m)
16m

Recognise (125px/m)
8m

Identify (250px/m)
4.1m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
