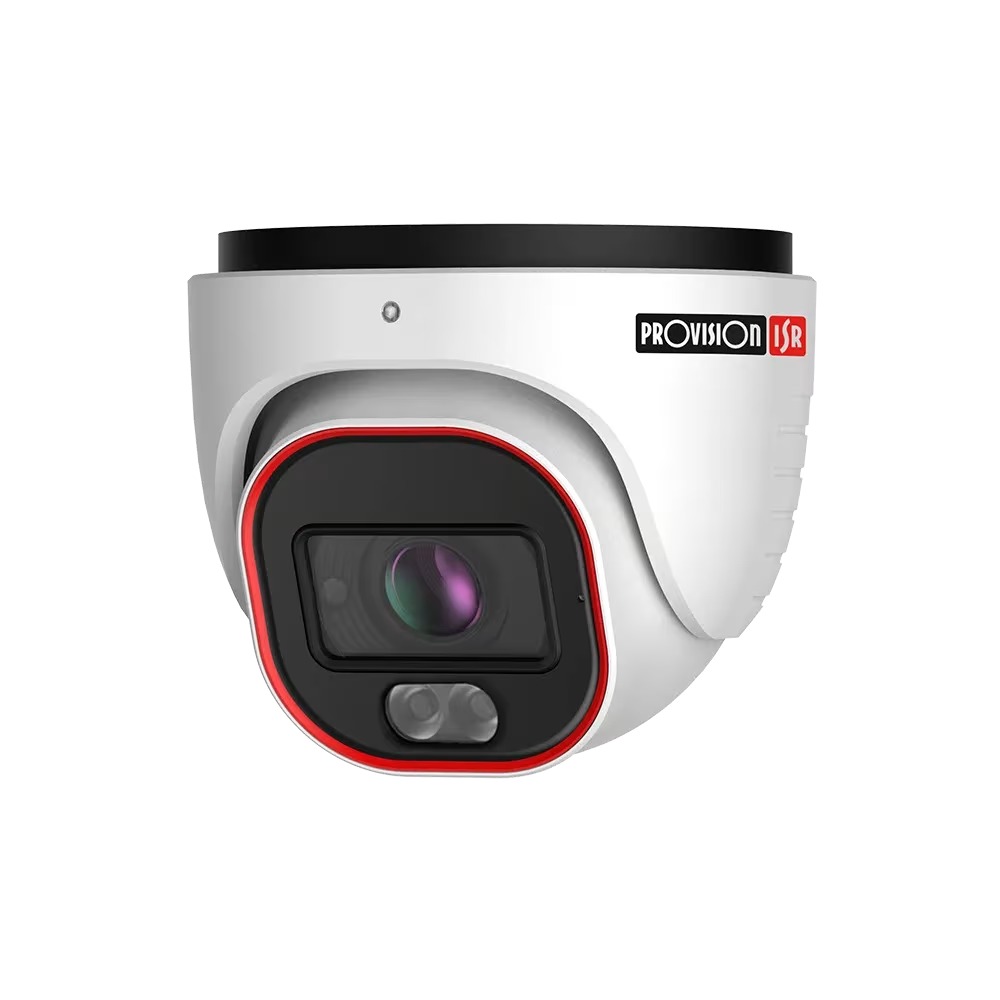

2MP Rainbow MVF Lens Turret Cam, Hybrid LED - DH-320SRN-MVF
2MP Rainbow MVF Lens Turret Cam, Hybrid LED - DH-320SRN-MVF - Image 2
2MP Rainbow MVF Lens Turret Cam, Hybrid LED - DH-320SRN-MVF - Image 3

2MP Rainbow MVF Lens Turret Cam, Hybrid LED – DH-320SRN-MVF

Login, Register, or Call for Price

The rainbow camera series is equipped with super light-sensitive sensors that allow the camera to provide a color image throughout the day. When the ambient light is insufficient, the camera will turn on the integral lighting, allowing it to continue providing a full-color image.
SKU: DH-320SRN-MVF Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP Rainbow MVF Lens Dome/Turret Camera with Hybrid LED


The DH-320SRN-MVF is a 2MP dome/turret camera from the Rainbow Series, featuring ultra light-sensitive sensors that deliver full-colour imaging throughout the day. When ambient light is insufficient, its integrated lighting ensures continued high-quality colour visuals.

The Hybrid LED solution allows users to switch between standard IR mode for black-and-white imaging and white LED mode for full-colour visibility, offering flexibility in various lighting conditions. Equipped with DDA Analytics (Detect, Distinguish, Alert), the camera enables precise human and vehicle recognition, enhancing security and situational awareness.

Register for Member Pricing

With its exceptional performance, reliability, and affordability, the DH-320SRN-MVF is an ideal surveillance solution for both indoor and outdoor installations

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

s-sight-2mp-features

DH-320SRN-MVF Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.002lux (@F1.0, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (105.4°-34°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 41.67m(136.71ft) – 2.8~12mm(T):128.38m(421.19ft)
Recognize
2.8~12mm(W): 8.33m(27.32ft) – 2.8~12mm(T): 25.67m(84.21ft)
Identify
2.8~12mm(W): 4.16m(13.64ft) – 2.8~12mm(T): 12.83m(42.09ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (1 High-Power IR LED) 40m (2 High-Power White LED)
Power Supply
DC12V/~780mA / PoE/~7.4W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~640g
Hard Reset Button
Yes

Documents

DH-320SRN-MVF Datasheet

320IPSR 340IPSR Rainbow S-Series v2 Manual (All Models)

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

2MP Rainbow MVF Lens Dome/Turret Camera with Hybrid LED


The DH-320SRN-MVF is a 2MP dome/turret camera from the Rainbow Series, featuring ultra light-sensitive sensors that deliver full-colour imaging throughout the day. When ambient light is insufficient, its integrated lighting ensures continued high-quality colour visuals.

Register for Member Pricing

The Hybrid LED solution allows users to switch between standard IR mode for black-and-white imaging and white LED mode for full-colour visibility, offering flexibility in various lighting conditions. Equipped with DDA Analytics (Detect, Distinguish, Alert), the camera enables precise human and vehicle recognition, enhancing security and situational awareness.

With its exceptional performance, reliability, and affordability, the DH-320SRN-MVF is an ideal surveillance solution for both indoor and outdoor installations

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

s-sight-2mp-features

DH-320SRN-MVF Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR + 24/7 Full-Color Day Mode
Min. Illumination
Day: 0.1lux / Night: 0.002lux (@F1.0, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (105.4°-34°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W): 41.67m(136.71ft) – 2.8~12mm(T):128.38m(421.19ft)
Recognize
2.8~12mm(W): 8.33m(27.32ft) – 2.8~12mm(T): 25.67m(84.21ft)
Identify
2.8~12mm(W): 4.16m(13.64ft) – 2.8~12mm(T): 12.83m(42.09ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (1 High-Power IR LED) 40m (2 High-Power White LED)
Power Supply
DC12V/~780mA / PoE/~7.4W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~640g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DH-320SRN-MVF

Detect (25px/m)
42m (Wide)
129m (Tele)

Observe (63px/m)
16m (Wide)
51m (Tele)

Recognise (125px/m)
8m (Wide)
26m (Tele)

Identify (250px/m)
4.2m (Wide)
12.9m (Tele)

Register for Member Pricing

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.
