VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS
Sale!
VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS - Image 2
VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS - Image 3
VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS - Image 4
VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS - Image 5
VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS - Image 6

VIP Vision Triple-Sight AI Perimeter Protection Camera – VSIPU-2TS

Guest Price – Login to see Member Pricing

Original price was: $999.00.Current price is: $834.90.

VIP Vision Triple-Sight AI Perimeter Protection Camera

Three streams with wide, mid and far lenses for long distance surveillance.

Perfect for driveways, warehouse or shop aisles, long pathways or roads, fence lines, anywhere that long medium and short range detection is required along the same sight line.

SKU: VSIPU-2TS Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPU-2TS Triple-Sight AI Perimeter Protection Camera from VIP Vision is engineered for high-accuracy, long-range perimeter surveillance in demanding environments. Using three integrated 2MP sensors with different focal lengths, the camera delivers multi-channel detection to accurately identify people and vehicles across short, medium, and long distances, significantly reducing false alarms.

Advanced AI analytics support human and vehicle classification with perimeter protection features such as tripwire and intrusion detection. Micro-PTZ and Illumination by Area technologies provide precise control of monitoring zones and lighting, ensuring clear, actionable images even in challenging conditions. Built-in IR illumination delivers visibility up to 100 metres, while efficient H.265 compression reduces bandwidth and storage requirements without compromising image quality.

Designed for outdoor and critical infrastructure applications, the VSIPU-2TS features a rugged metal housing rated to IP67 and IK10 for weather and vandal resistance. Additional features including two-way audio, edge recording via Micro SD, and PoE/ePoE support make this camera a versatile and reliable solution for perimeter security across industrial, commercial, and high-risk sites.

Register for Member Pricing

Camera features:

  • Multi-sensor, multi-focal length surveillance system
  • 3 x 2.0MP (1920 x 1080) sensors, recording at 25fps
  • 3.6mm, 12mm and 25mm focal lengths across 3 video channels
  • Multi-zone infrared for night illumination across 3 focal lengths
  • MicroSD slot for recording at the edge up to 1TB
  • Fine chassis and micro PTZ adjustment for accuracy
  • Intelligent AI detection, create 1 tripwire/intrusion rule across 3 channels
  • Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
  • IP67 weather and IK10 vandal rated housing for outdoor use

Sample Night Vision with VSIPU-2TS

Sample Day Vison with VSIPU-2TS

Specifications

Camera
Image Sensor
Channel 1–3: 1/2.8″ CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) × 1080 (V)
RAM / ROM
2GB / 4MB
Min Illumination
0.0004lux @ F1.6 (B/W, 30 IRE)
S/N Ratio
>56 dB
Infrared System
Built-in IR illumination, up to 100m
Lens
Lens Type
Fixed
Lens / Iris
Channel 1: 3.6mm F1.6, Channel 2: 12mm F2.0, Channel 3: 25mm F2.8, Iris: Fixed (Channel 1–3)
Field of View
Channel 1: H 85.9°, V 46.7°, Channel 2: H 25.7°, V 14.4°, Channel 3: H 13°, V 7.4°
Focus
Fixed focus
DORI
Detect (25px/m)
Ch 1: 53.7m, Ch 2: 172.4m, Ch 3: 331.0m
Observe (63px/m)
Ch 1: 21.5m, Ch 2: 69.0m, Ch 3: 132.4 m
Recognise (125px/m)
Ch 1: 10.7m, Ch 2: 34.5m, Ch 3: 66.2m
Identify (250px/m)
Ch 1: 5.4m, Ch 2: 17.2,m Ch 3: 33.1m
Video
Resolution
Channel 1–3: 1080p (1920 × 1080)
Frame Rate (Main)
1920 × 1080 @ 1–25 fps
Frame Rate (Sub)
704 × 576 @ 1–25 fps
Frame Rate (Third)
N/A
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG (MJPEG sub-stream only)
Bit Rate
3 kbps – 8192 kbps
Bit Rate Control
VBR / CBR
Day/Night
Auto (ICR) / Colour / B/W
Lighting Compensation
BLC / HLC / Digital WDR / SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip / Rotation (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart IR, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Human & Vehicle classification supported)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Change, Network Disconnection, IP Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Smart search via NVR, search tripwire & intrusion events by human or vehicle
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ONVIF (S/G/T), CGI, SDK
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Interface
Video Interface
No additional video output
Audio Interface
Built in dual mic, Built-in loudspeaker, 1 channel RCA input/output, / Audio Compression: G.711a; G.711Mu; G726; PCM
Alarm Interface
2 channels input (5mA 3~5VDC, wet contact), 2 channels output (300mA 12VDC, wet contact)
RS485
1 x RS485 Port (1200~115,200bps)
Edge Storage
MicroSD Card (up to 1TB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profle S & Profle G & Profle T & Profle M); CGI
Environmental
Power Supply
12VDC / PoE+ (802.3at) / ePoE, Dual power backup (simultaneous PoE and 12VDC)
Power Consumption
4.3W (12VDC), 5.5W (PoE), Max Consumption (infrared + loudspeaker + IVS): 22.1W (12VDC), 23.6W (PoE)
Operating Conditions
Temperature: –40 °C to +60 °C, Humidity: ?95% RH (non-condensing)
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Tri-axial Adjustment: Pan: 0~360° Tilt: 0~70° Rotation: 0~360° / Micro PTZ: Tilt: -5~10° / Built-in level
ePoE
Yes

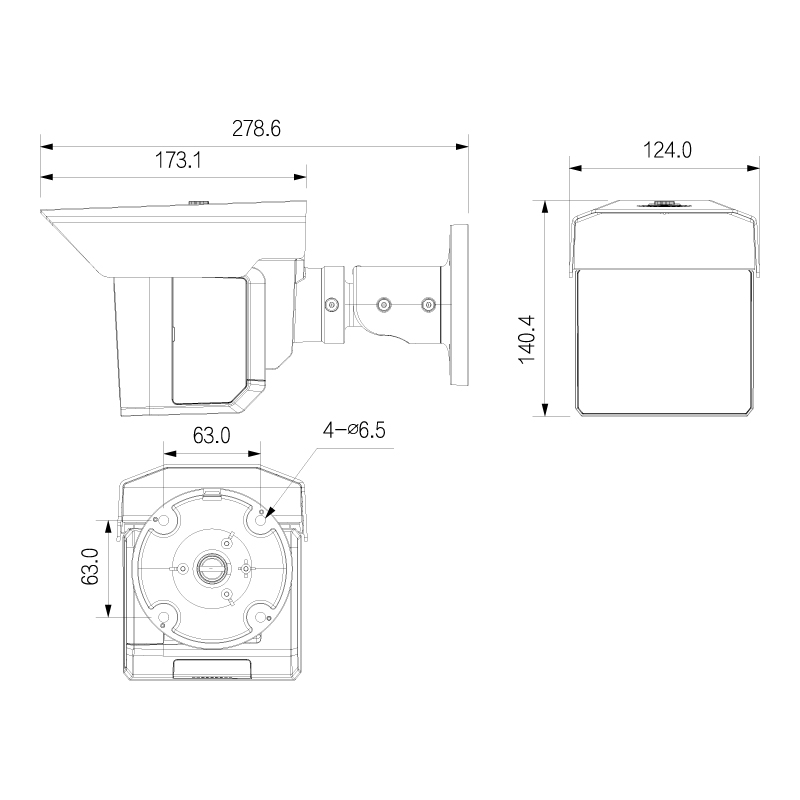

Dimensions
278.6 x 124.0 x 140.4 mm (L × W × H)
Net Weight
2.40kg
Warranty (Years)
4
Register for Member Pricing
