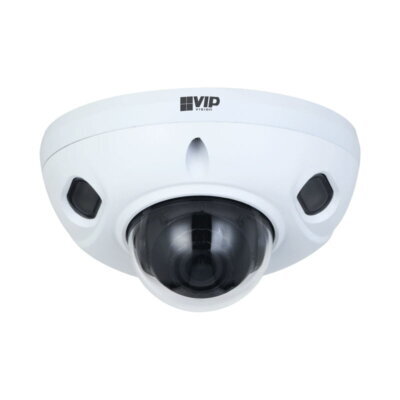

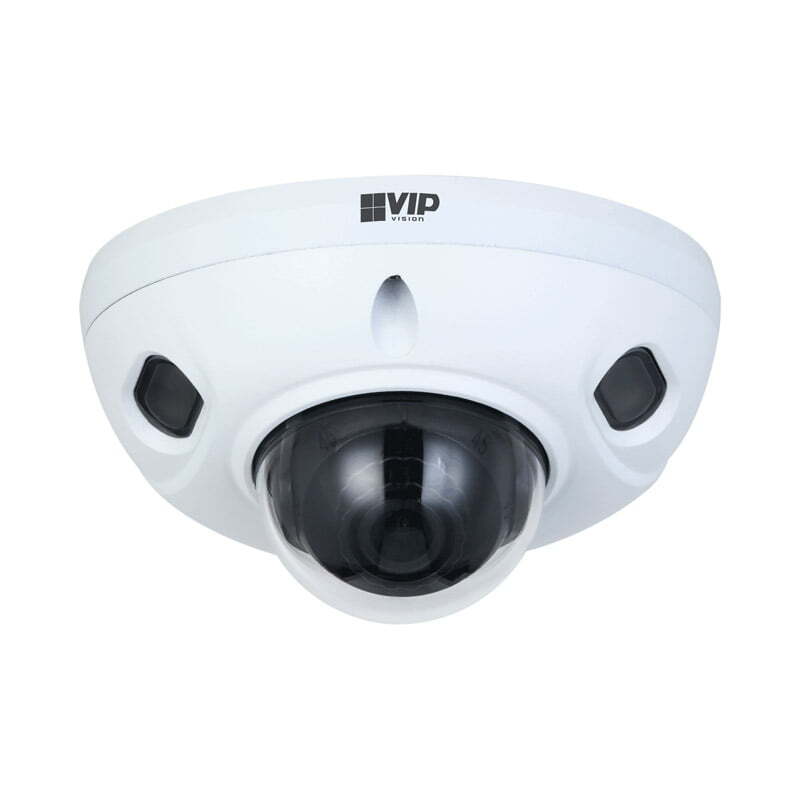

Professional AI Series 4.0MP Fixed Wedge Dome
Sale!
Professional AI Series 4.0MP Fixed Wedge Dome - Image 2
Professional AI Series 4.0MP Fixed Wedge Dome - Image 3
Professional AI Series 4.0MP Fixed Wedge Dome - Image 4
Professional AI Series 4.0MP Fixed Wedge Dome - Image 5
Professional AI Series 4.0MP Fixed Wedge Dome - Image 6
Professional AI Series 4.0MP Fixed Wedge Dome - Image 7
Professional AI Series 4.0MP Fixed Wedge Dome - Image 8

Professional AI Series 4.0MP Fixed Wedge Dome

Original price was: $231.00.Current price is: $177.73.

Register for Member Pricing

4 Interest Free Payments of $44.43

Professional AI Series 4.0MP Fixed Wedge Dome – CCTV Surveillance Systems > Network Surveillance Cameras

SKU: VSIPP-4DIRF-I2 Category: Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 102° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 30m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing

Specifications

Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.6 (Color)
S/N Ratio
N/A
Infrared System
2 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 102°, Vertical: 54°
Focus
Auto Focus / 0.9m Min. Focus Distance
DORI
Detect (25px/m)
64m
Observe (63px/m)
25m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression – G.711a; G.711Mu; G726; PCM
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2W
Operating Conditions
-40°C ~ +60°C / ?95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
Wedge Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: -30° ~ 35°, Tilt: 0° ~ 70°, Rotation: 0° ~ 355°
ePoE
No

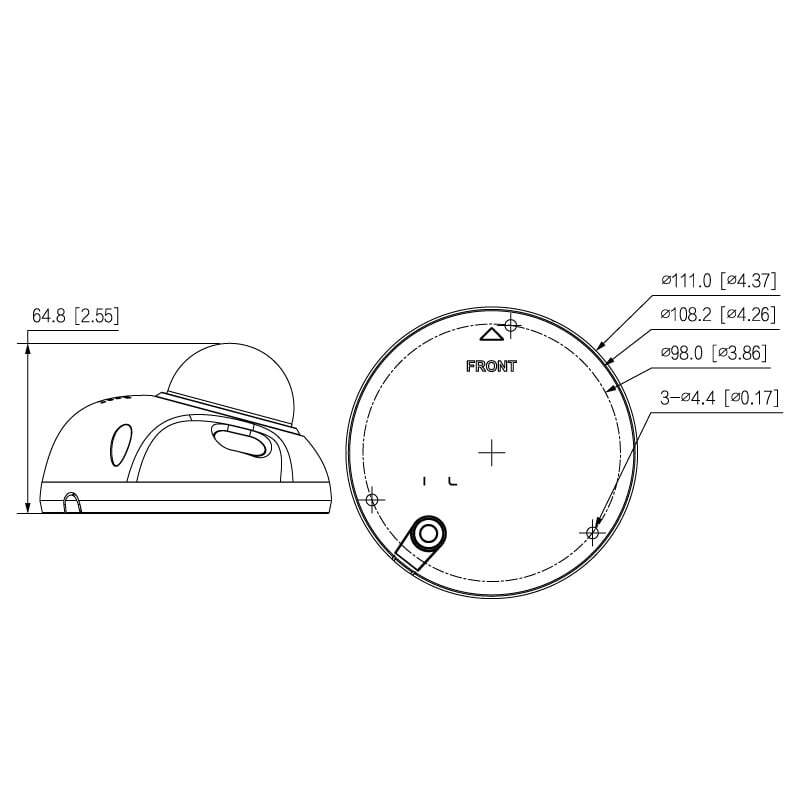

Dimensions
Ø111.0mm x 64.8mm
Net Weight
0.42kg
Warranty (Years)
4



Register for Member Pricing

Download documents from the following links:

VIP Vision Professional AI Fixed Wedge Dome I2 Datasheet
