4.0m Octagonal Hinged Pole – POL-A4S

Name: 4.0m Octagonal Hinged Pole - POL-A4S
Brand: VIP Vision
SKU: POL-A4S
Price: 1506.45 AUD
Availability: InStock

Guest Price – Login to see Member Pricing

Original price was: $1,795.00.Current price is: $1,506.45.

4.0m heavy-duty octagonal hinged pole designed for CCTV surveillance, solar-powered systems and outdoor lighting. Heavy-Duty Integrated Anchor for attaching the pole to a compatible precast concrete base. Includes template and J-bolts.

SKU: POL-A4S Categories: Solar, Solar Lighting and Power Brand: VIP Vision

Description

4.0m heavy-duty octagonal hinged pole designed for CCTV surveillance, solar-powered systems and outdoor lighting. Manufactured from Q355 steel with a hot-dipped galvanised finish, the hinged design allows the upper section to be lowered for easier equipment access and maintenance.

Specifications:
– 4.0m overall height
– Ø60mm top outside diameter
– Ø164mm bottom outside diameter
– 2930mm hinge height
– Q355 steel construction
– Hot-dipped galvanised finish

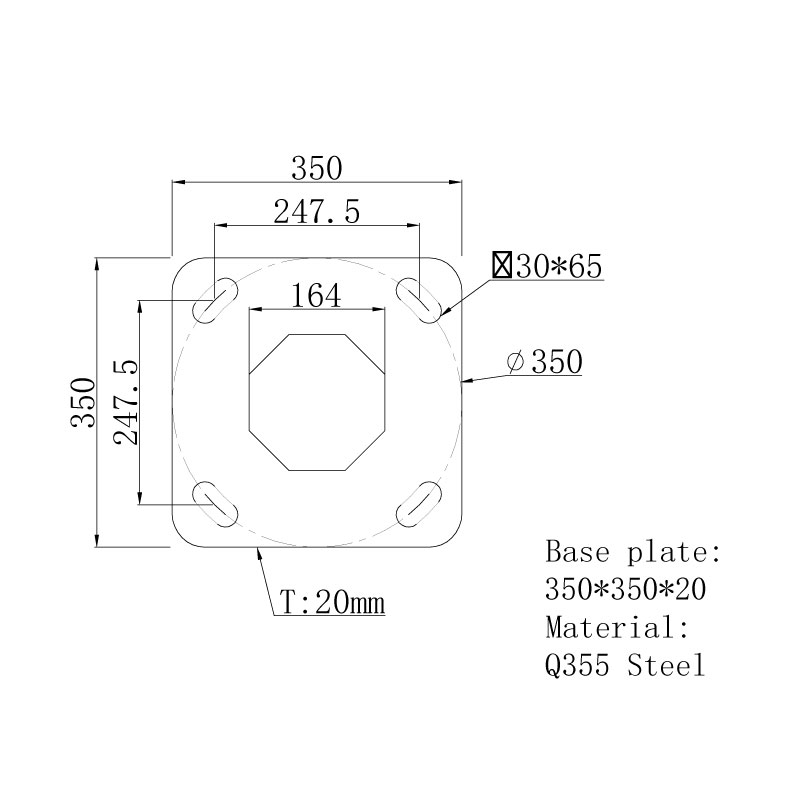

– 350 × 350 × 20mm base plate

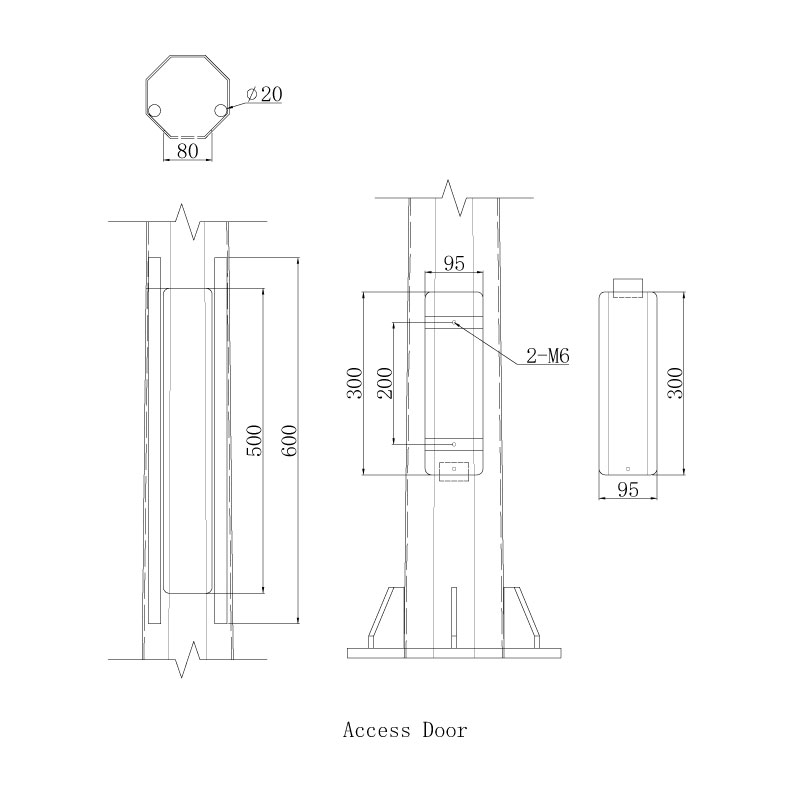

– Integrated access panel
– Compatible with M24 anchor bolt assemblies
– Suitable for permanent or portable installations with compatible mounting options

Inclusions:

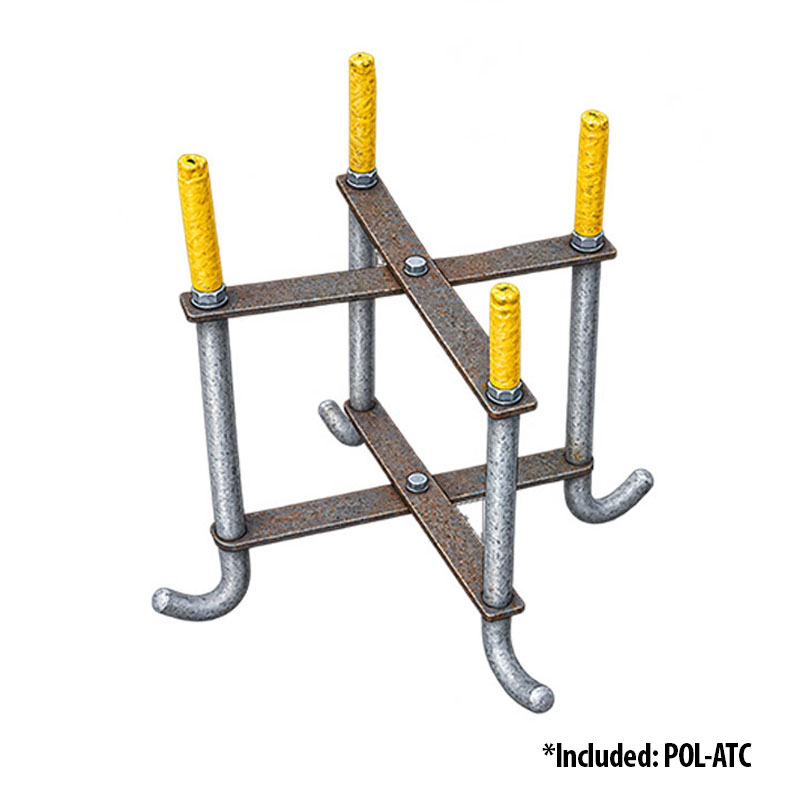

– POL-ATC: Heavy-Duty Integrated Anchor for attaching the pole to a compatible precast concrete base. Includes template and J-bolts.
*Please Note: Concrete bases are sold separately.

Add-ons:

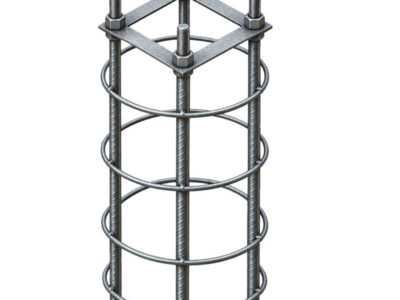

– POL-ATG: In-Ground Anchor Cage: Optional add-on for permanent in-ground installation. Includes anchor cage, bolt template and J-bolts.

Delivery quotation available on request or pick-up from McGraths Hill NSW.

Please download documents from the following links:

POL-A4S_Product_Drawing
