6.0m Octagonal Hinged Pole – POL-A6S

Name: 6.0m Octagonal Hinged Pole - POL-A6S
Brand: VIP Vision
SKU: POL-A6S
Price: 1808.95 AUD
Availability: InStock

Guest Price – Login to see Member Pricing

Original price was: $2,145.00.Current price is: $1,808.95.

6.0m heavy-duty octagonal hinged pole designed for CCTV surveillance, solar-powered systems and outdoor lighting. Heavy-Duty Integrated Anchor for attaching the pole to a compatible precast concrete base.

SKU: POL-A6S Categories: Solar, Solar Lighting and Power Brand: VIP Vision

Description

6.0m heavy-duty octagonal hinged pole designed for CCTV surveillance, solar-powered systems and outdoor lighting. Manufactured from Q355 steel with a hot-dipped galvanised finish, the hinged design allows the upper section to be lowered for easier equipment access and maintenance.

Specifications:
– 6.0m overall height
– Ø60mm top outside diameter
– Ø170mm bottom outside diameter
– 3400mm hinge height
– Q355 steel construction
– Hot-dipped galvanised finish

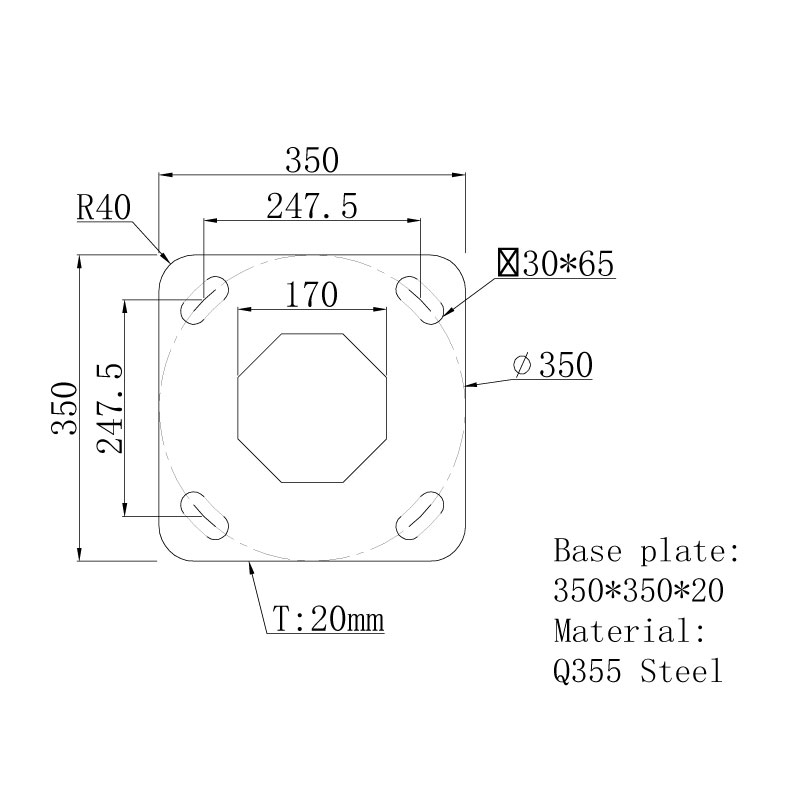

– 350 × 350 × 20mm base plate

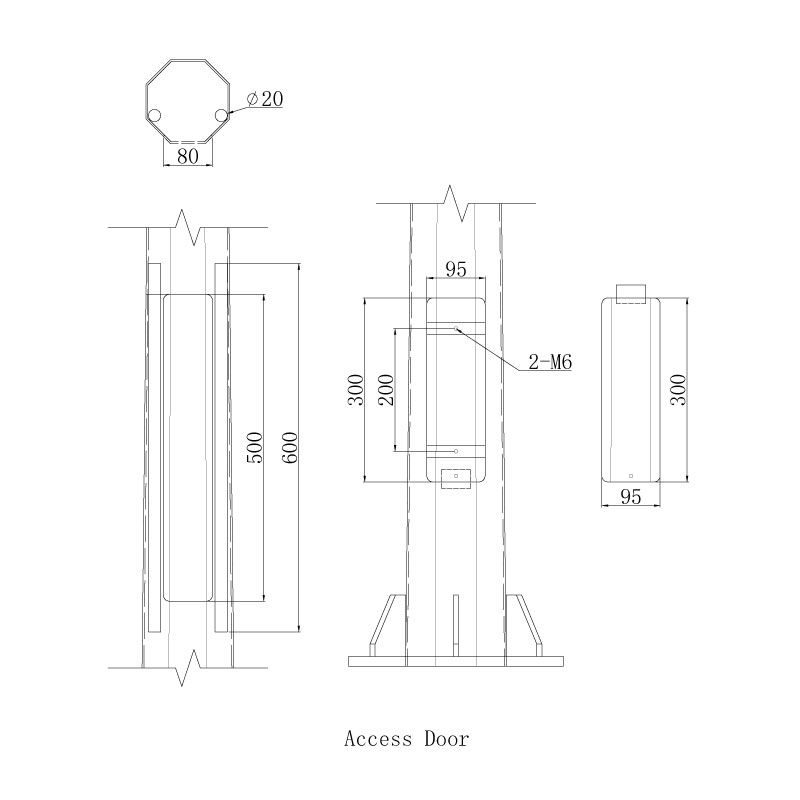

– Integrated access panel
– Compatible with M24 anchor bolt assemblies
– Suitable for permanent or portable installations with compatible mounting options

Inclusions:

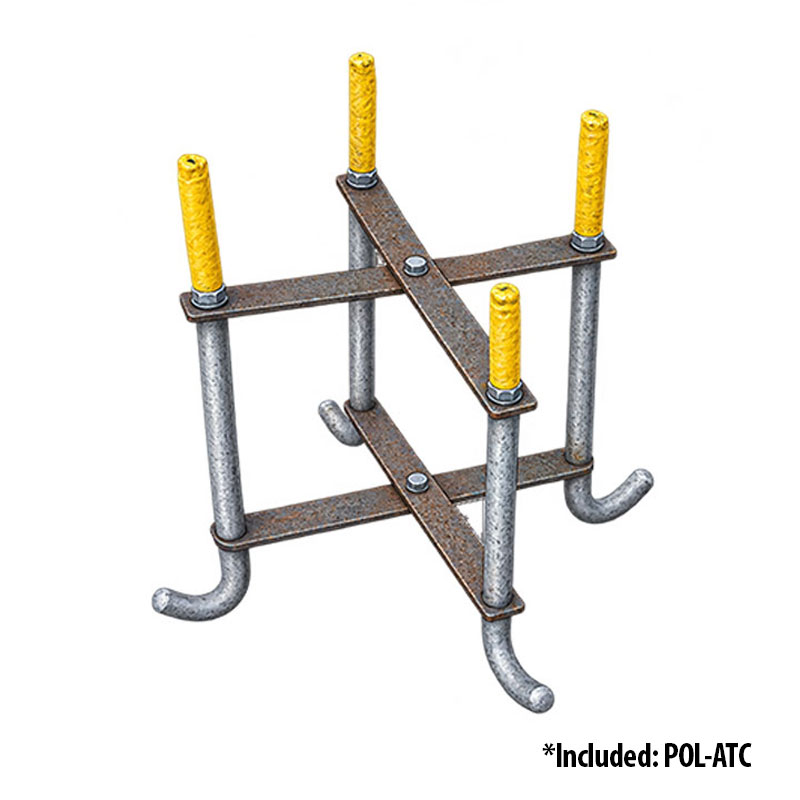

– POL-ATC: Heavy-Duty Integrated Anchor for attaching the pole to a compatible precast concrete base.
*Please Note: Concrete bases are sold separately.

Add-ons:
– POL-ATG: In-Ground Anchor Cage: Optional add-on for permanent in-ground installation. Includes anchor cage, bolt template and J-bolts.

Delivery quotation available on request or pick-up from McGraths Hill NSW.

Please download documents from the following links:

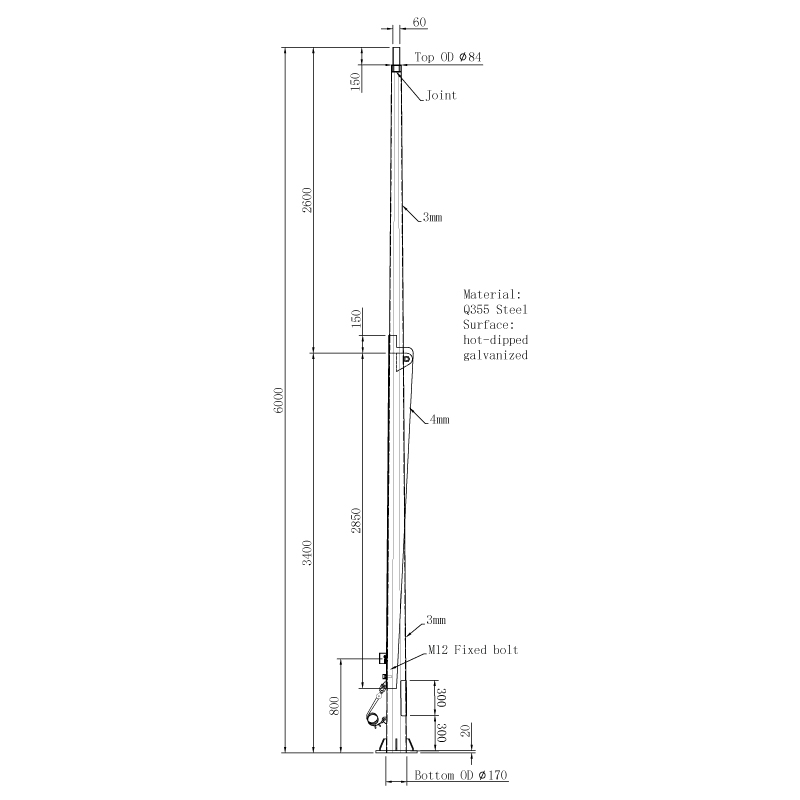

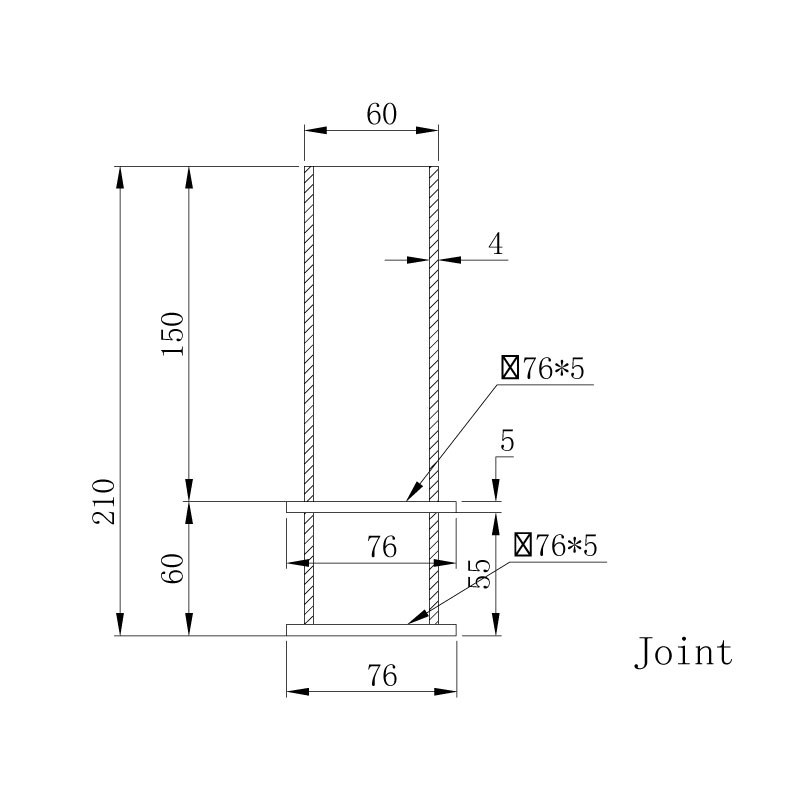

POL-A6S_Product_Drawing
