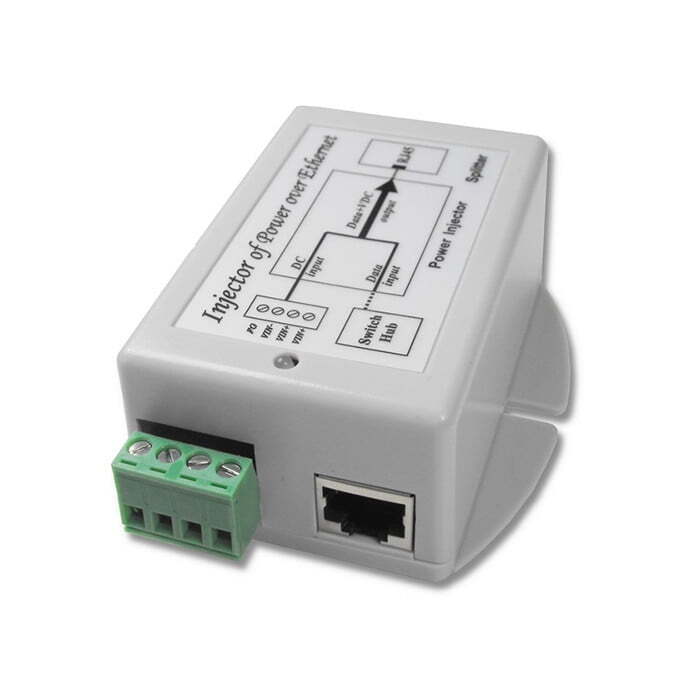

9~36VDC to 48VDC PoE Injector/Converter
Sale!

9~36VDC to 48VDC PoE Injector/Converter – VSPOEINJDCV2

Guest Price – Login to see Member Pricing

Original price was: $229.00.Current price is: $193.60.

9~36VDC to 48VDC PoE Injector/Converter

SKU: VSPOEINJDCV2 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSPOEINJDCV2 is the PoE solution for high-power cameras, converting any voltage from 9~36VDC and outputting at 48VDC.

Product features:

  • Input Voltage 9-36VDC; Output 48VDC
  • 24W power output
  • Integrated Gigabit PoE inserter
  • Integrated PoE injector
  • Short circuit, overcurrent & overvoltage protection
  • High operating temperature
  • Removable wire terminal input for up to 12AWG wires

Specification

Register for Member Pricing

DC Input Voltage
9VDC ~ 36VDC

DC Output Voltage (+/-2.5%)
48VDC

Dimensions
85 x 76 x 36mm

Efficiency (min)
75%

EMC Standards
FCC Class B NE55022 Class B

Input Connector
Removeable Screw Type Compression Wire Terminal (12 AWG Max)

Line Regulation
1%

Load Regulation
5%

Noise
1%

Operating Environment
-30 to +60°C / 90%RH (Max)

Output Connector
RJ45 (Shielded)

Output Current (max)
0.35A

Output Power (max)
24W

Ripple
1%

Safety Standards
UL1950, CSA 22.2 &TUV EN60950

Self Consumption Power
1W

Storage Temperature
-40 to +80°C

Weight
0.13kg
