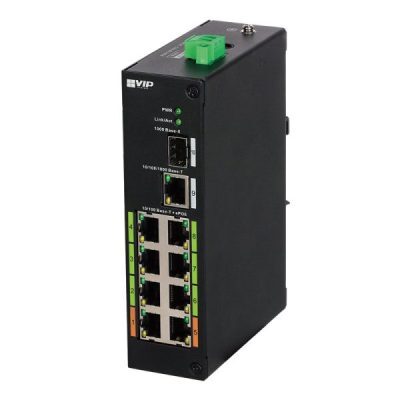

VIP Vision 8-port Unmanaged Fast Extended PoE DIN Rail Ethernet Switch - VSPOE-SW8E
Sale!
VIP Vision 8-port Unmanaged Fast Extended PoE DIN Rail Ethernet Switch - VSPOE-SW8E - Image 2
VIP Vision 8-port Unmanaged Fast Extended PoE DIN Rail Ethernet Switch - VSPOE-SW8E - Image 3

VIP Vision 8-port Unmanaged Fast Extended PoE DIN Rail Ethernet Switch – VSPOE-SW8E

Guest Price – Login to see Member Pricing

Original price was: $325.00.Current price is: $254.10.

8-port Unmanaged Fast Extended PoE Ethernet Switch

Available on back-order

SKU: VSPOE-SW8E Categories: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSPOE-SW8E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW8E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting.

Features:

8 x PoE+ device ports with 100Mbps per port (ePoE capable)
1 x Hi-PoE device port with 100Mbps per port (ePoE capable)
1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
Total PoE power load up to 120W
Extend up to 300m@100Mbps and 800m@10Mbps
Unmanaged switch for plug and play applications
DIN rail mountable for neat rackmount installations
Professional appearance full metal enclosure

Register for Member Pricing

* Refer to datasheet for ePoE transmission performance tables

Specification

Device Ports
8 x 10/100 Base-T (PoE power supply ports)

DHCP
N/A

Dimensions
150 x 100 x 42mm

Exchange Mode
Store & forward

Extend Mode
N/A

Flow Control
Enabled

Input Power
48 ~ 57VDC

Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV

LLDP
N/A

MAC Address Capacity
8K

Mounting Options
DIN rail

Network Management
N/A

Network Time Protocol
N/A

Operating Environment
-30°C~65°C / RH10%~90%

Packet Forwarding Rate
4.17Mpps

PoE
Yes

PoE Management
N/A

PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Port Aggregation
N/A

Port Mirroring
N/A

Ports
8 ports

Quality of Service
N/A

Security Features
N/A

Spanning Tree Protocol
N/A

Speed
Fast 10/100

Switch Management
Unmanaged

Switch Power Load
Ports 1, 5: ?60W / Port 2, 3, 4, 6, 7, 8: ?30W (Total: ?120W)

Switching Capacity
8.8Gbps

System Maintenance
N/A

Uplink Ports
1 x 1000 Base-X / 1 x 10/100/1000 Base-T

Virtual LAN
N/A

Weight
0.59kg

Warranty (years)
4

Register for Member Pricing

Please download documents from the following links:
