VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA4C
Sale!
VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA4C - Image 2
VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA4C - Image 3
VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA4C - Image 4
VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA4C - Image 5

VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) – VSPOE-SWA4C

Original price was: $84.37.Current price is: $62.92.

4-port Hi-PoE switch with 60W per port, 250m extend mode, and lightning protection—ideal for powering edge devices in secure networks.

SKU: VSPOE-SWA4C Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

4-Port Fast Hi-PoE Network Switch with 250m Extend Mode – VSPOE-SWA4C

The VSPOE-SWA4C is a compact, high-performance 4-port Hi-PoE switch designed for edge network deployments. Ideal for powering and connecting CCTV cameras, wireless access points, IP phones, and access control systems, it delivers up to 60W per port with support for PoE, PoE+, and Hi-PoE standards.

Each port offers 100Mbps data throughput, and the Extend mode allows Ethernet cable runs up to 250m, making it perfect for long-distance installations. Housed in a durable full-metal enclosure, the switch supports wall or desktop mounting and includes 6kV lightning overvoltage protection for enhanced reliability in outdoor or industrial environments.

Specifications

Switch Specification
Ports
4 ports
Speed
Fast 10/100
Device Ports
4 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 10/100/1000 Base-T
Switching Capacity
4.8 Gbps
Packet Forwarding Rate
3.57 Mpps
Exchange Mode
–
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Switch Power Load
Port 1: ?60W / Port 2-4: ?30W / Total: ?60W
Management
Switch Management
N/A
MAC Address Capacity
2K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range at 10Mbps
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
53VDC
Lightning Protection
Common Mode: 6kV / Differential Mode: 0kV
Mounting Options
Rackmount Tabs (1RU) / Desktop Mount
Operating Environment
-10° ~ 55°C / RH95% (max)
Weight
0.20kg

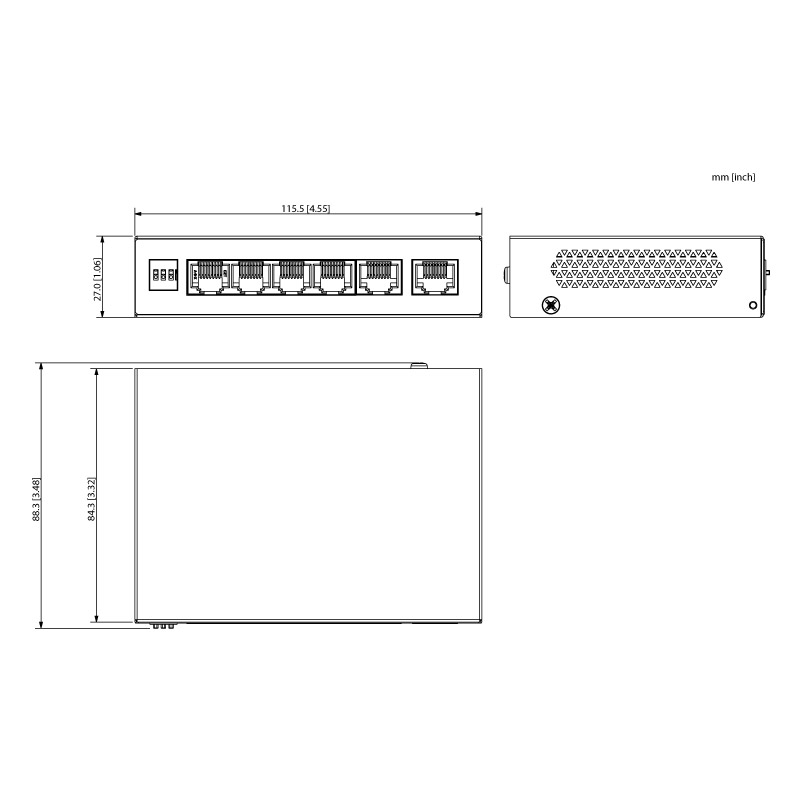

Dimensions
115 x 84 x 27mm
Warranty (Years)
4



Register for Member Pricing

Please download documents from the following links:

VIP Vision VSPOE-SWA C Series Datasheet (PDF)
