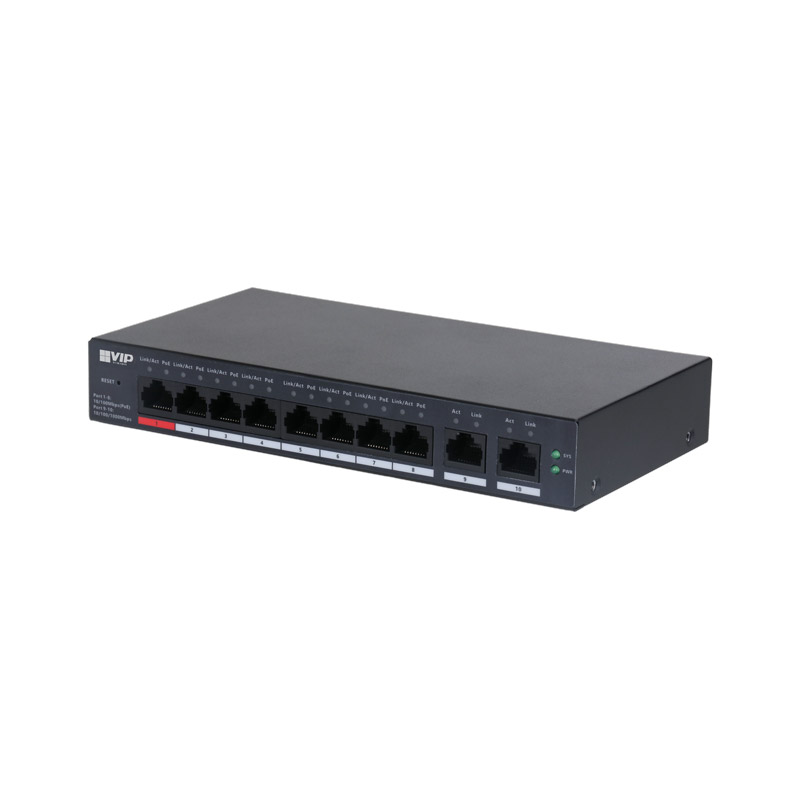

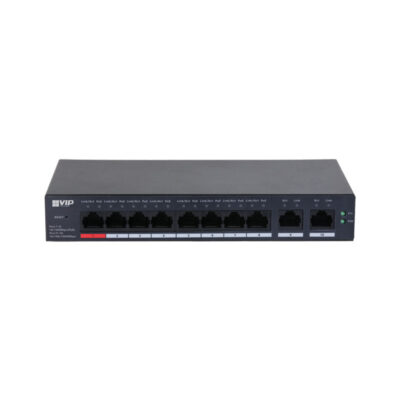

VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8C
Sale!
VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8C - Image 2
VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8C - Image 3
VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8C - Image 4
VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8C - Image 5
VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) - VSPOE-SWA8C - Image 6

VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M) – VSPOE-SWA8C

Original price was: $168.74.Current price is: $128.26.

8-port Hi-PoE switch with 90W per port, 250m extend mode, and lightning protection—built for powering edge devices in secure networks.

Available on back-order

SKU: VSPOE-SWA8C Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

8-Port Fast Hi-PoE Network Switch with 250m Extend Mode – VSPOE-SWA8C

The VSPOE-SWA8C is a robust 8-port Hi-PoE switch designed for powering and connecting edge network devices such as CCTV cameras, wireless access points, IP phones, and access control systems. Each port supports PoE, PoE+, and Hi-PoE standards, delivering up to 90W per port, with a total PoE budget of 110W.

With 100Mbps data throughput per port and Extend mode for Ethernet runs up to 250m, this switch is ideal for long-distance installations. Its full metal enclosure offers a professional appearance and supports both wall and desktop mounting. Built-in 4kV lightning overvoltage protection ensures reliable performance in demanding environments.

Specifications

Switch Specification

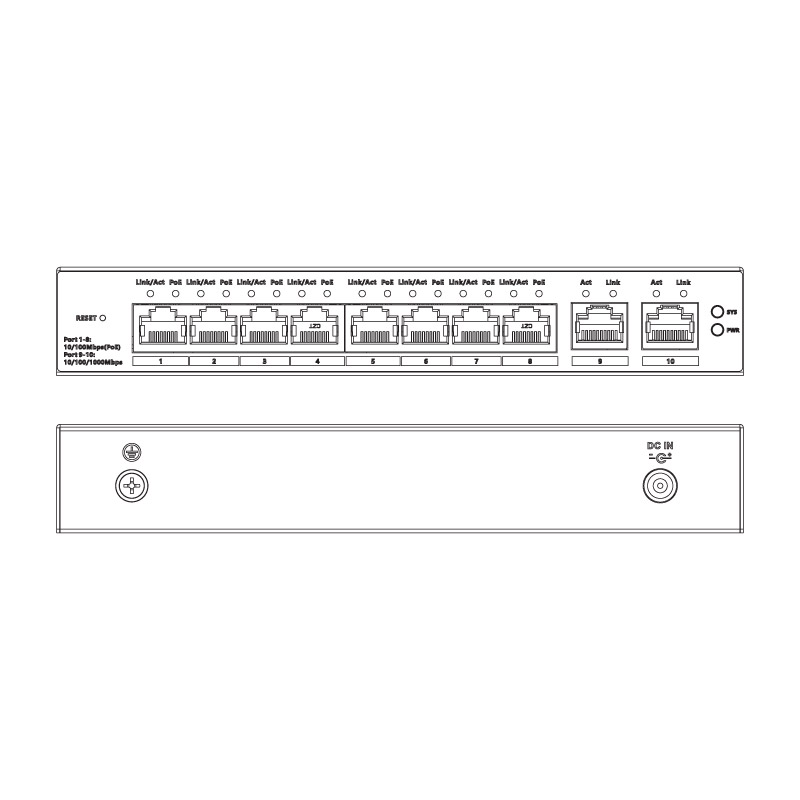

Ports
8 ports
Speed
Fast 10/100
Device Ports
8 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 10/100/1000 Base-T
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.17 Mpps
Exchange Mode
–
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Switch Power Load
Port 1: ?90W / Port 2-8: ?30W / Total: ?110W
Management
Switch Management
N/A
MAC Address Capacity
8K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range at 10Mbps
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental

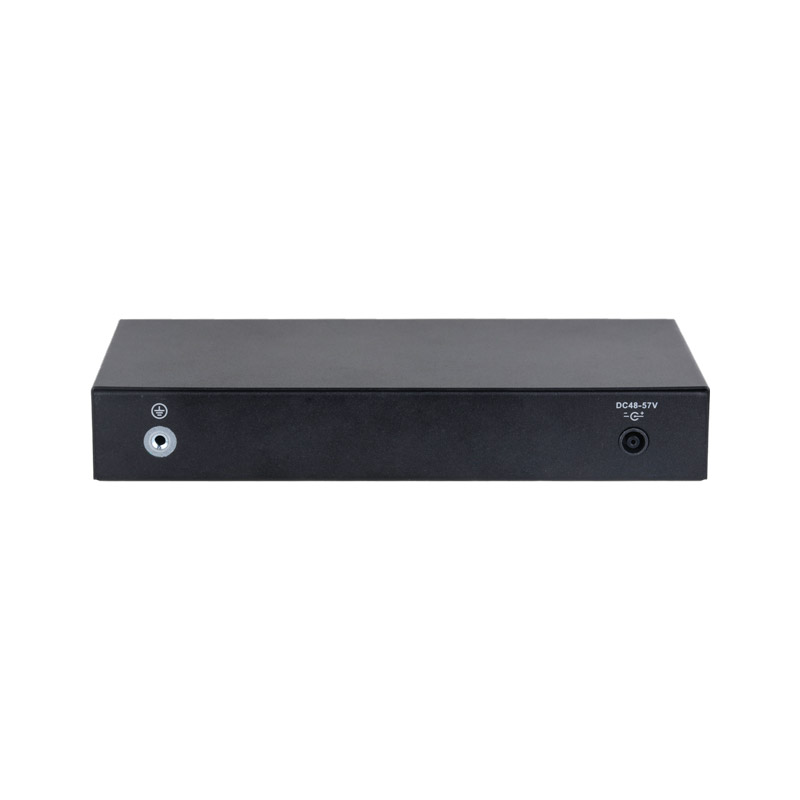

Input Power
54VDC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV

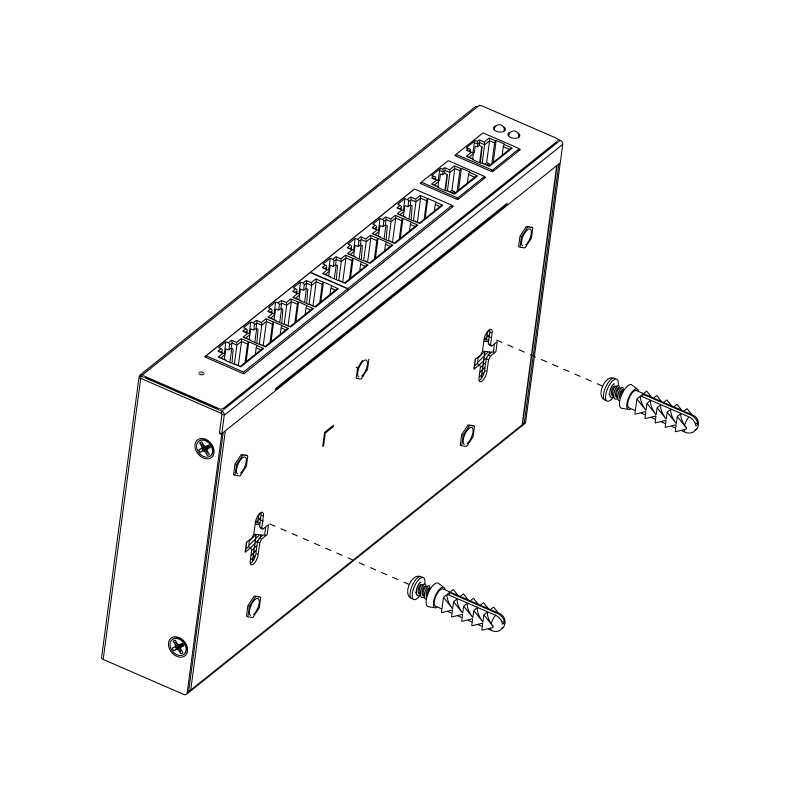

Mounting Options
Wall and Desktop mount
Operating Environment
-10° ~ 55°C / RH95% (max)
Weight
0.50 kg

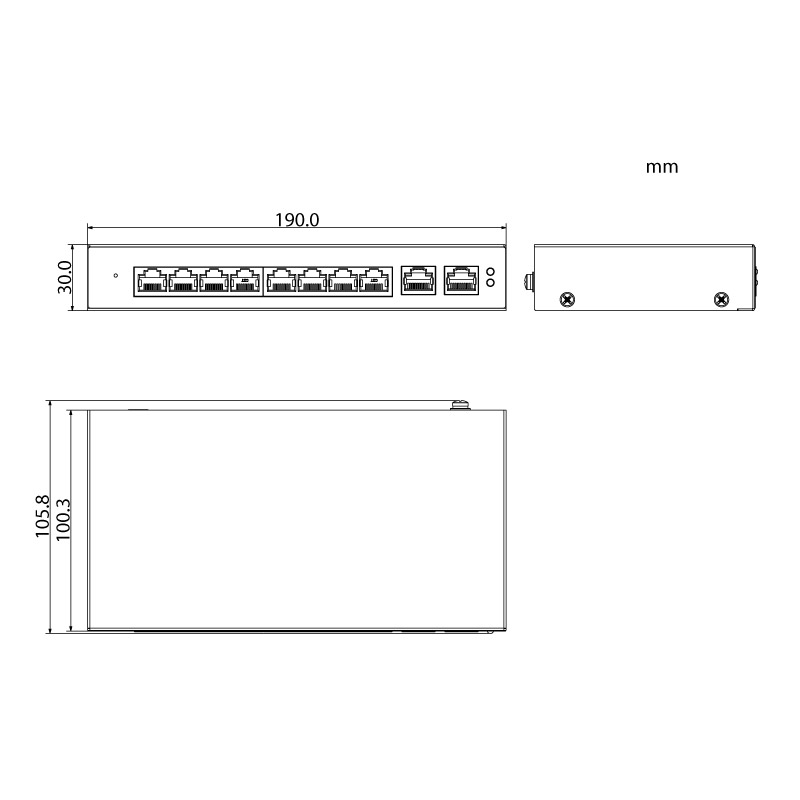

Dimensions
190 x 106 x 30mm
Warranty (Years)
4
