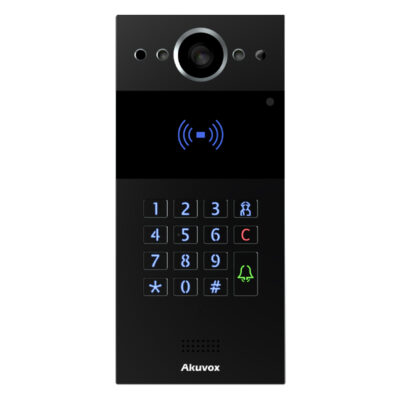

Akuvox R20K Doorphone with Keypad, LTE (4G) – BLACK

Guest Price – Login to see Member Pricing

Login, Register, or Call for Price

Video SIP door intercom with:

Keypad
Card Reader
2MP camera
110° FOV
2 output relays
IP65
4G (LTE)

SKU: AK-R20K-BLACK-L Categories: Akuvox, Akuvox Apartment

Free Shipping for orders over $600 (AU Only)*

Brand: Akuvox

Description

R20K – Compact VoIP (SIP) Video Door Station with 2MP Camera, Card Reader, 2 relays, Keypad, IP65, LTE (4G) with Surface Mount, Black – Flush Mount kit extra.

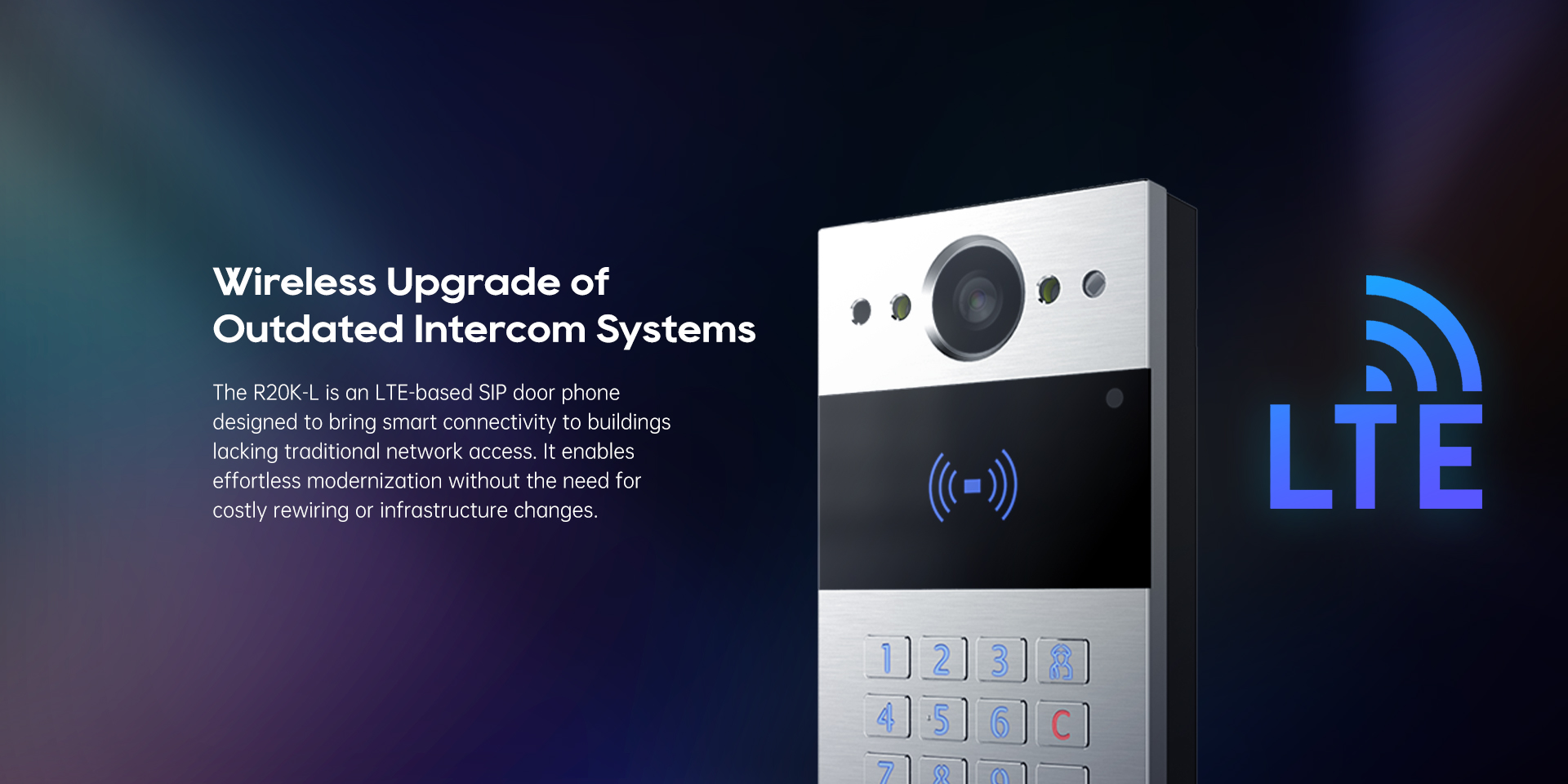

Akuvox R20K-L 4G LTE in a sleek all metal design almost the size of an iPhone is specially designed for narrow spaces and is available in both On wall and In wall mountable versions. Akuvox R20K-L 4G LTE Video Intercom also supports RFID reader and Keypad for key-less entry for enhanced user convenience and peace of mind. The R20K also comes with PoE for easy and cost effective installation.

Please select flush mount kit mount when ordering if required

Features

Full metal Aluminum vandal resistant body
3 MP 120º Wide-angle camera
Supports Video Preview and Visitor Snapshot to email
PoE IEEE802.3af Power-over-Ethernet
High intensity LEDs for night viewing
13.56 MHz RFID Card Reader
Keypad supports pincode for keyless entry
IP 65 water and dust resistance rating – ideal for Australian Conditions
2 x Integrated door lock control relays
Two-way audio communication over IP networks with Echo Cancel feature
Complies with SIP standard for easy integration with SIP based PBX Systems
Supports visitor snapshot to email
Supports ONVIF standard for easy integration with NVR

This device is 4G Capable and can be used on remote sites with internet, either through a mobile router, Starlink, or NBN. See our post on Standalone Access Control with Remote Monitoring

This door station is also available without the 4G (LTE) option here

Akuvox Video Integration

The R20K seamlessly integrates with Akuvox products, and its camera is ideal for working with Akuvox monitors. The real time video is streamed and can be viewed at any time. There is no need for any 3rd party software or IP PBX support to view the video stream.

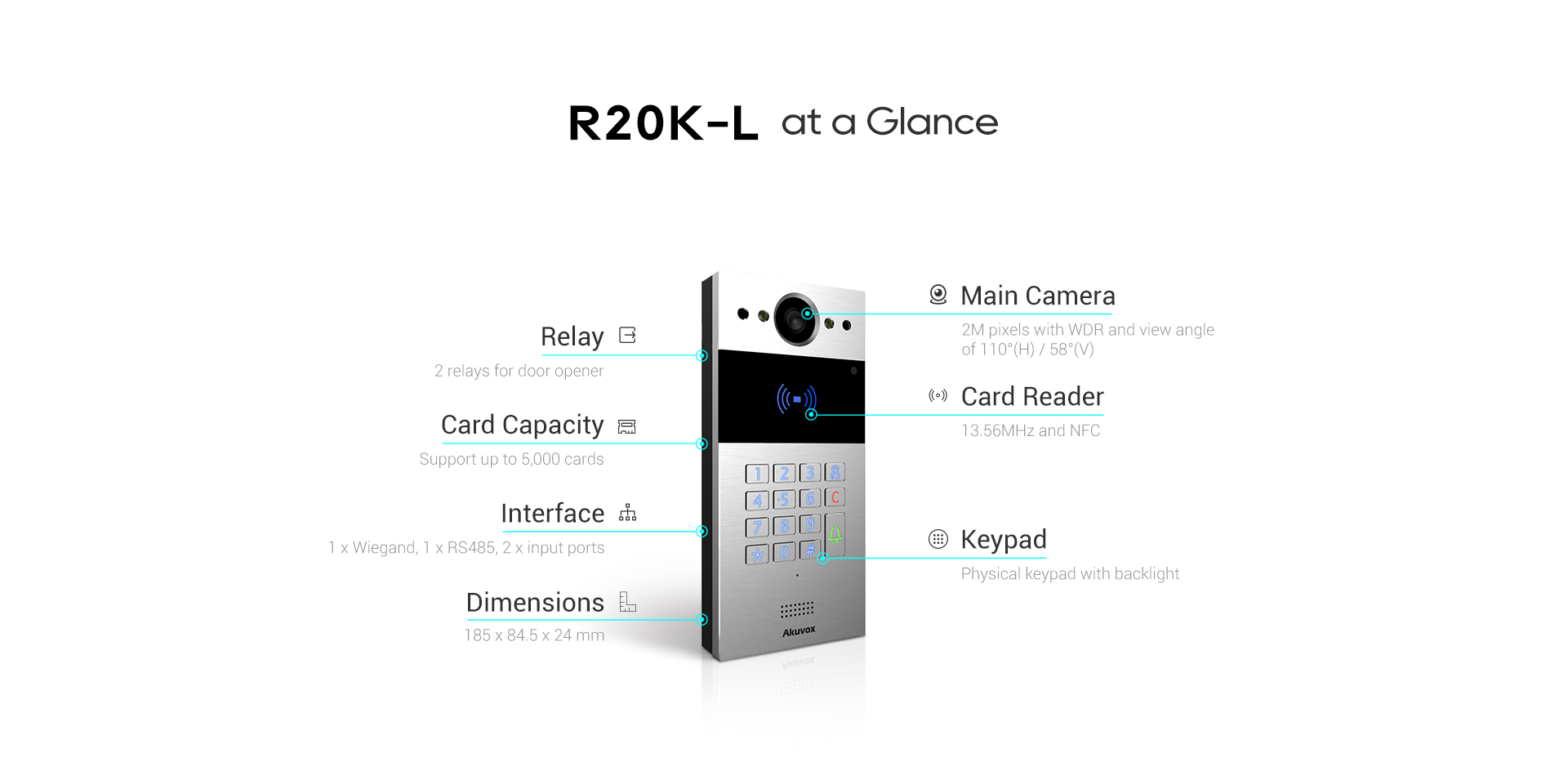

Specifications

Physical & Power

Body material

Aluminum alloy

Camera

2MP, auto lighting

Button

Numeric Keypad with extra buttons

Relays

2 out

Inputs

Power

12VDC if not using PoE

Ports

RS485 & Weigand

Water-proof & Dust-proof

IP65

Installation

Flush and surface mounting

Dimension

Flush: 226x108x52mm Surface: 185x85x24mm

Card Reader

13.56MHz & 125KHz

IR Sensor

Yes

Motion Sensor

Yes

Networking

LTE-FDD

B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/ B26/B28

LTE-TDD

B38/B39/B40/B41

WCDMA

B1/B2/B4/B5/B6/B8/B19

SIP Endpoint

SIP Version

SIP v1(RFC2543), SIP v2(RFC3261)

Audio codecs

G.711a, G.711u, G.722

Video codecs

H.264

Other Features:

Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Door opener via DTMF post-dial

Application Scenarios:

Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment / Residential intercom with door access control

Video

Resolution

up to 1080p

Maximum image transfer rate

1080p – 30fps

IR Light

High intensity LEDs for picture lighting during dark hours

Door Entry Features

Relays controlled individually by DTMF tones or messages
Multi-way Unlock: IC Card, and PassNumber;
Camera permanently operational, not just during calls
Viewing angle: 110 °
Auto-night mode with LED illumination

Application Scenarios

Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment / flat intercom with door access control

Please download documents from the following links:

Akuvox R20K-L Black Datasheet
