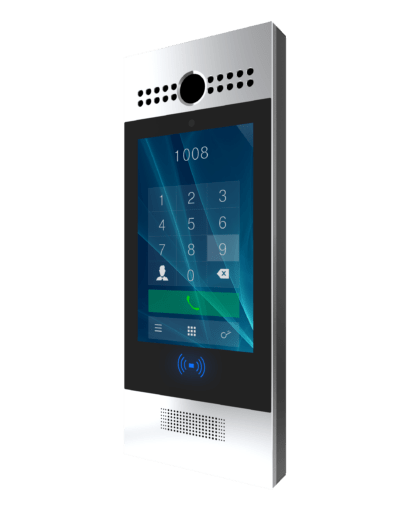

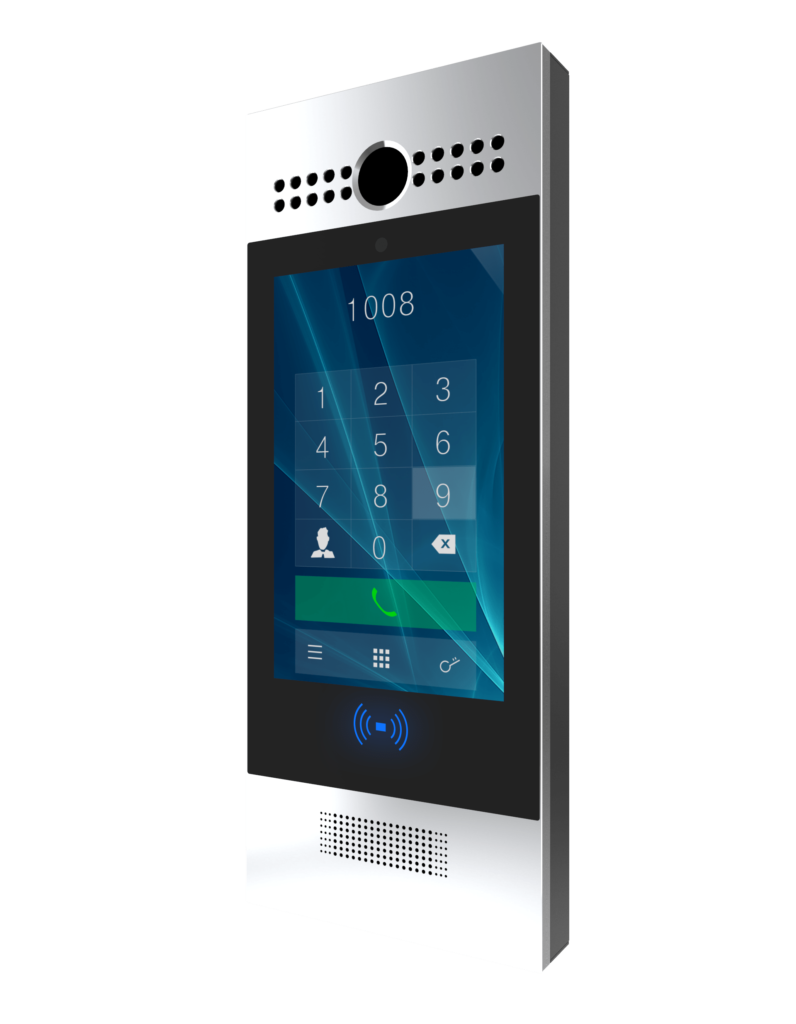

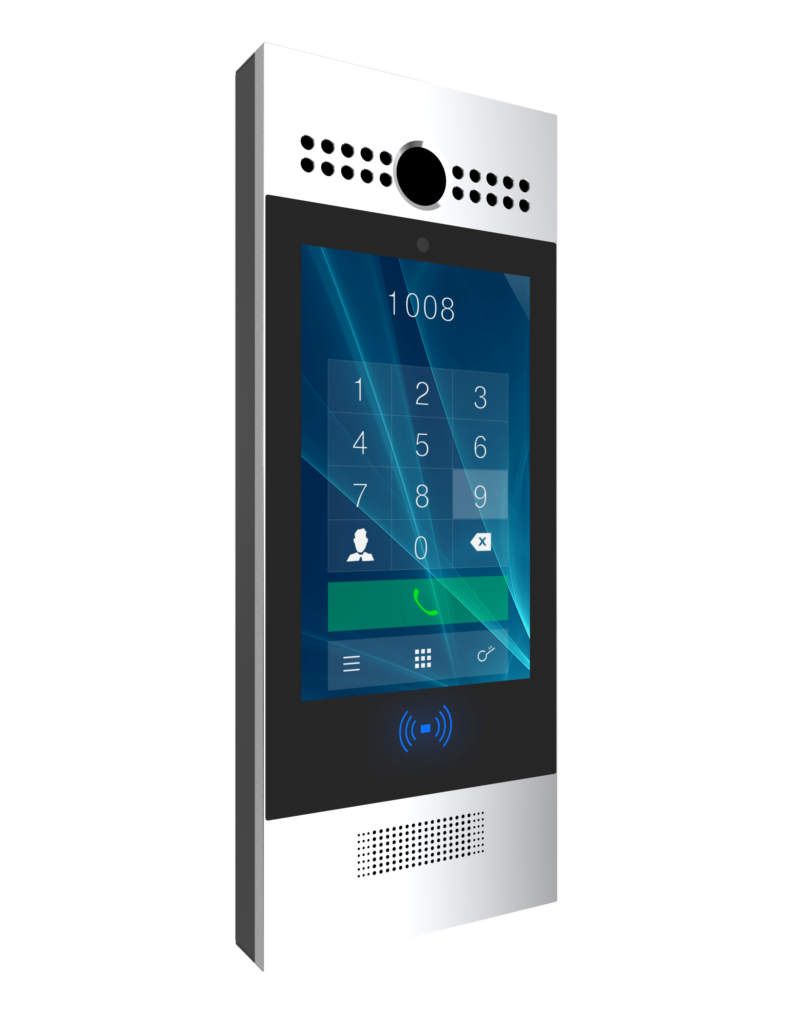

Akuvox R29C Smart Video intercom, with Facial Recognition

Akuvox R29C Smart SIP Video intercom, with Facial Recognition – includes mount

Guest Price – Login to see Member Pricing

Login, Register, or Call for Price

Touch screen Video SIP door intercom with:

2 SIP accounts
Card Reader
7″ Colour Touch Screen
3MP + 5MP camera for facial recognition
120° FOV
3 input / output relays
IP65

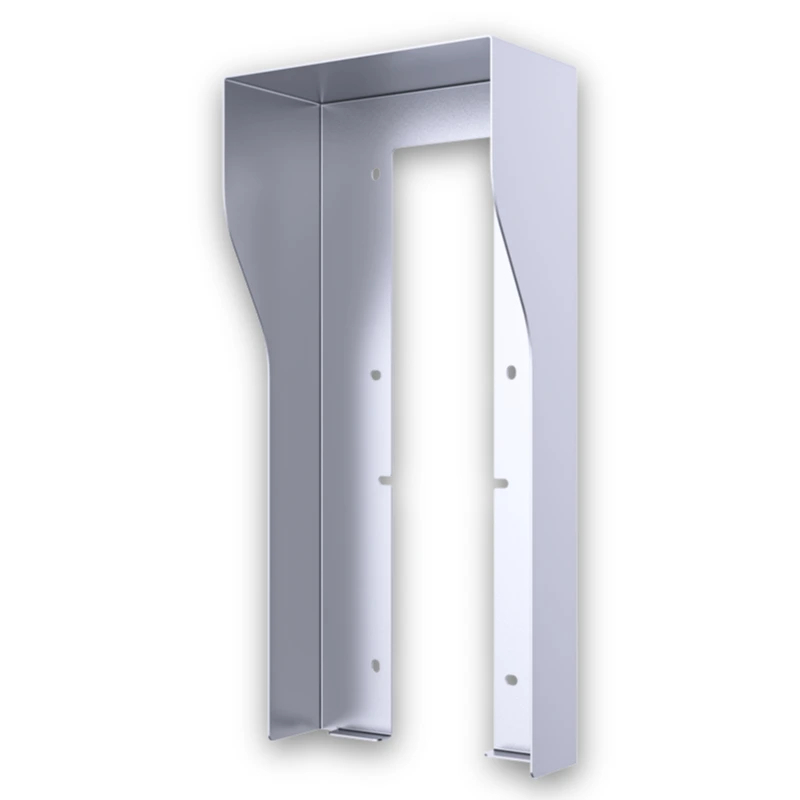

Includes mounts.

Description

R29C – VoIP (SIP) Smart Video Door Station with 3MP + 5MP Camera, Facial recognition, Card Reader, 3 relays, 7″ touchscreen, IP65, with Surface Mount or Flush Mount kits included.

R29C is a fashionable, SIP-enabled IP video door phone with dual cameras for facial recognition (detect fraudulent attempts), touch screen and card reader. It enables easy monitoring of an entrance area and convenient entry control.

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox’s Video Doorphone R29C enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

At a Glance

Enables audio and visual monitoring of doors/gates which increases security on residential or commercial premises;
Uses the latest H.264 video and G.722 audio codec to provide you with the highest quality video image and audio clarity;
Allows both audio and video communication to an IP phone, mobile client, or softphone;
PoE (IEEE802.3af, Power-over-Ethernet);
Presents information and user navigation options unique to your business;
Eliminates the need for personnel to be physically stationed at the door/gate which improves productivity and frees them up to work on other things;
Speeds response time to visitors, delivery and service personnel that require access;
7-inch large touch screen
Anti-spoofing face liveness detection with dual cameras
Premium audio and video quality
Real-time entrance monitoring
Remote door opening
Multiple access methods
Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65

Akuvox Video Integration

The R29C seamlessly integrates with Akuvox products, and its camera is ideal for working with Akuvox VP-R4X & IT8X series. The real time video is streamed to the 7” TFT LCD of VP-R4X & IT8X and can be viewed at any time. There is no need for any 3rd party software or IP PBX support to view the video stream.

Specifications

Physical & Power

Body material

all-aluminum

RAM / ROM

2GB / 16GB

Display

7″ IPS LCD

Screen

7″ capacitive touch screen

Camera

3MP, auto lighting

Button

1 call button

Relays

3 in / 3 out

Power

12VDC

Ports

RS485 & Weigand

Water-proof & Dust-proof

IP65

Installation

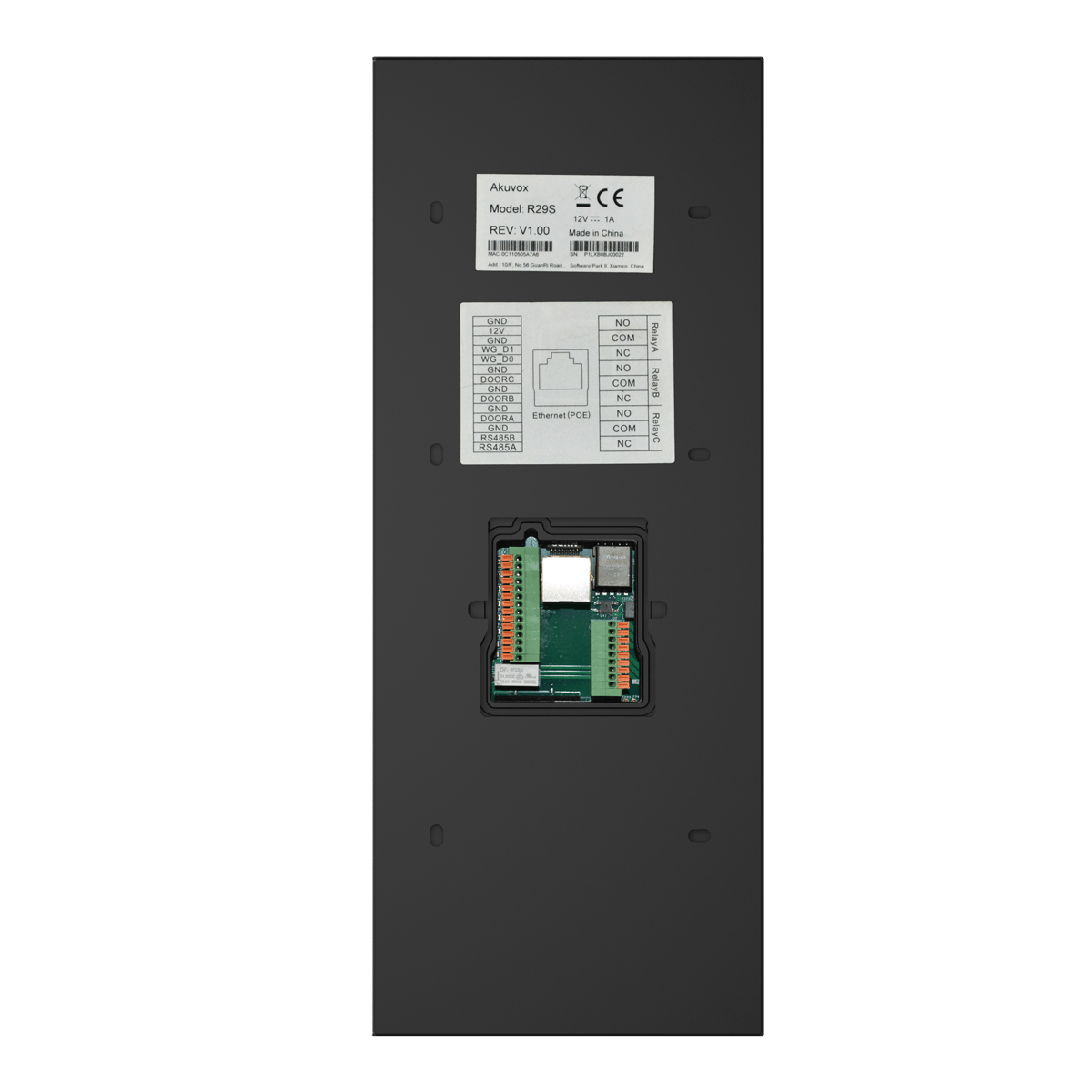

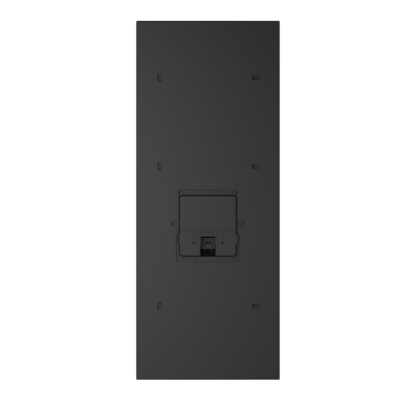

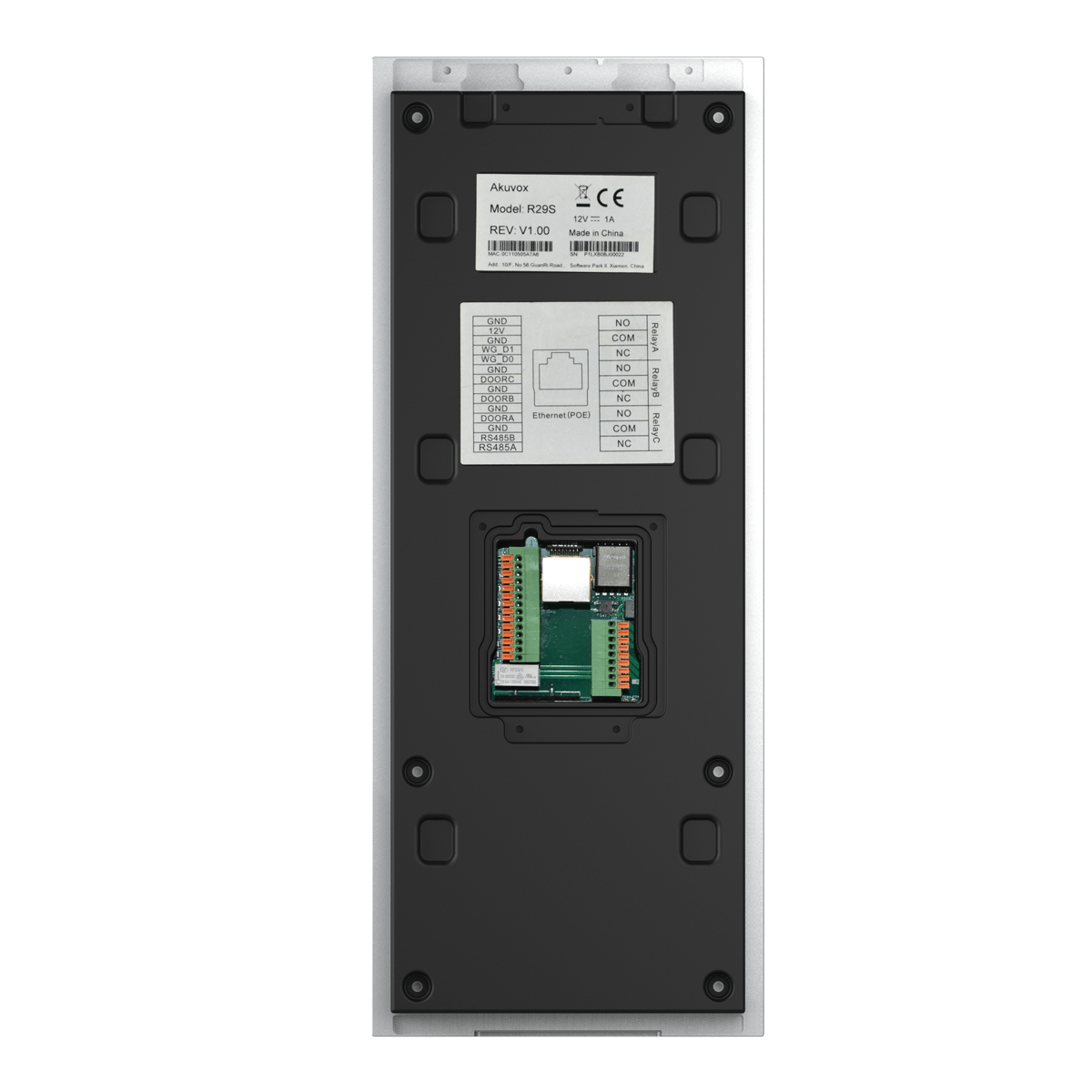

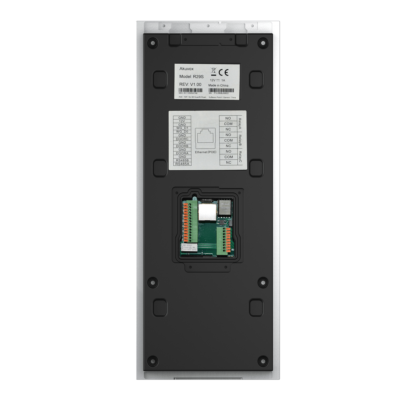

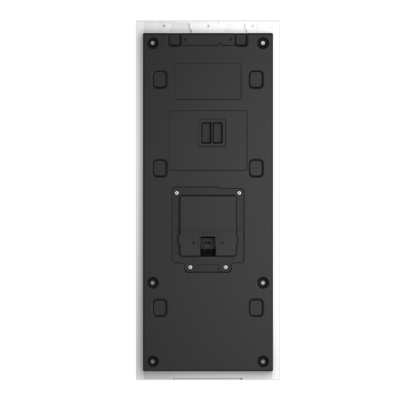

Flush and surface mounting

Dimension

324x130x27mm

Card Reader

13.56MHz & 125KHz

IR Sensor

Yes

Networking

Ports

1×10/100 Mbps Ethernet port

DHCP or Static IP

Time

Network Time Protocol

SIP Endpoint

SIP Version

SIP v1(RFC2543), SIP v2(RFC3261)

Lines

2 SIP Accounts

Audio codecs

G.711a, G.711u, G.722

Video codecs

H.264

Other Features:

Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Door opener via DTMF post-dial

Application Scenarios:

Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Residential intercom with door access control

Video

Resolution

up to 1080p

Maximum image transfer rate

1080p – 30fps

IR Light

High intensity LEDs for picture lighting during dark hours

Door Entry Features

Android OS for any 3rd party software or customization
Internal DPDT relay for controlling a door opener
Relays controlled individually by DTMF tones or messages
Multi-way Unlock: IC Card, and PassNumber;
G-sensor for self-defence alarm
Volume control for speaker
Gain control for microphone
Camera permanently operational, not just during calls
White balance: auto
Viewing angle: 120 °
Auto-night mode with LED illumination
Minimum illumination: 1LUX (without LED illumination)
Max call length setting

Application Scenarios

Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment / flat intercom with door access control
Business information or a welcome experience for guests

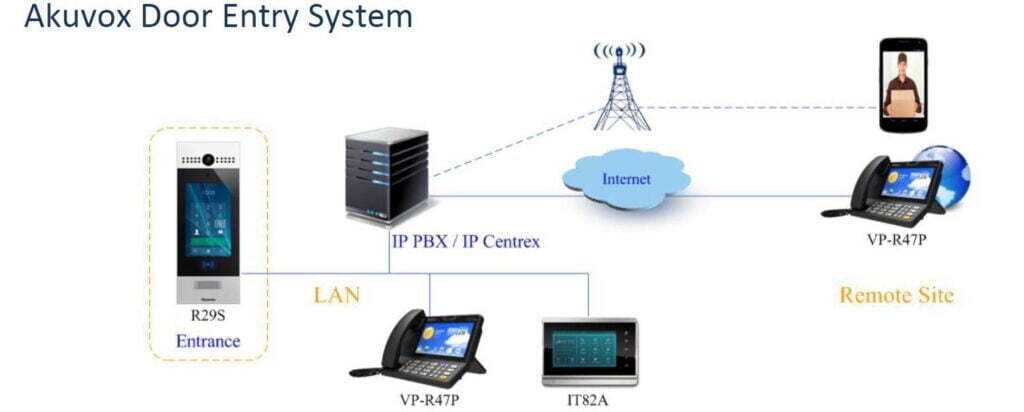

Connection diagram for Akuvox R29 intercom

Download the Data Sheet from the link below.

Brochure

Download the user manual from the link below.

User’s Manual
