Akuvox S565W 10-Inch Linux SIP Video Indoor Monitor

AK-S565W – 10-Inch Linux SIP Video Indoor Monitor

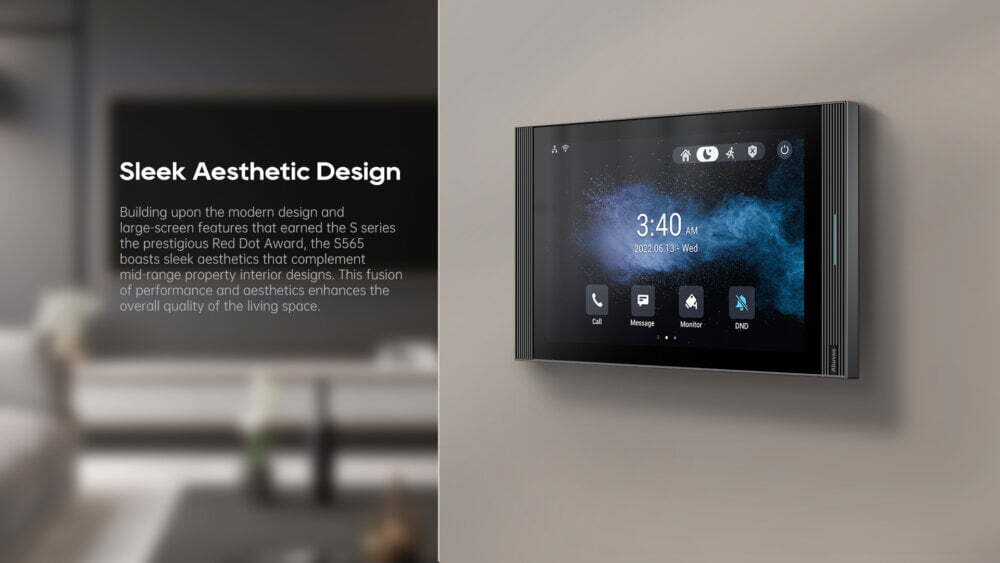

The Akuvox S565W is a 10-inch SIP video indoor monitor that runs on the Linux OS. It features a stylish industrial design and a high-resolution touchscreen display supporting high-quality video & audio communication and is suitable for mid-range housing markets.

Premium touch screen for your home

The Akuvox S565W multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol.

It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 10-inch capacitive touch screen display.

At a Glance

• Ultra-clear, stylish appearance
• 10-inch capacitive touch screen with energy saving mode
• Two-way audio communication with other units in the network
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Powered by PoE or external source
• Support US or European electrical wall box mounting

Specifications

Physical & Power

• Microphone: Dual microphones
• Speaker: One speaker
• Ethernet Ports: 2xRJ45,10/100Mbps adaptive
• POE: 802.3af Power-over-Ethernet
• Power: 12V DC Connector
• Installation: Wall-mounted &Desktop
• Dimension: 278x164x22.8 mm
• Working Humidity: 10~90%
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C ~ +70°C
• Front panel: Plastic
• RAM / ROM: 128MB / 256MB
• Display: 10 Inch IPS LCD 1280×800 resolution
• Screen: 10 Inch capacitive touch screen
• Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
• RS485 port: Support
• Relay out: 1
• Bell in: 1
• I/O: 8

Touch Screen & Display

• Display Mode: Normally white, Transmissive
• LCD Size: 10inch (Diagonal)
• Resolution: 1280×800
• Contrast ratio: 900:1
• Luminance: 350 cd/m²
• Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
• Touch Screen: Projected capacitive

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711?, G.729
• Broadband audio codec: G.722
• DTMF: Out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation

Video

• Streaming formats: H.264

Networking

• Protocols support: IPv4, HTTP, HTTPS,FTP,TFTP,SNMP, DNS, SNTP, RTSP, SRTP, RTP,TCP,UDP,TLS, ICMP, DHCP, ARP

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• System logs (including door access logs)

Application Scenario

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors
