Active Online Security » Shop » Products » Residential Intercom » VoIP (SIP) based » Akuvox » Akuvox S567G SIP 10″ Touch Screen (Android 12). WiFi 6, BT, Google, White

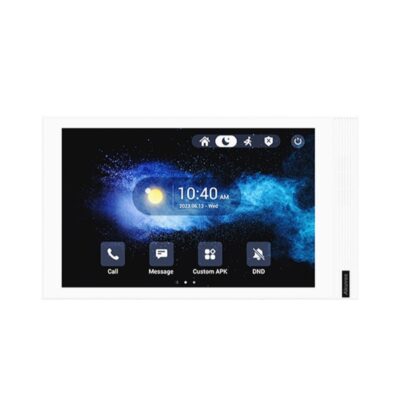

Akuvox S567G SIP 10″ Touch Screen (Android 12). WiFi 6, BT, Google, White

Guest Price – Login to see Member Pricing

Login, Register, or Call for Price

Akuvox S567G High Performance Luxury Smart 10″ Indoor Monitor with Quad Speaker audio, Google GMS Certification, WiFi, Bluetooth, and Android 12.

10 inch Android 12 touch screen display. Works as indoor monitor, provides audio & video communication with Door intercoms via SIP 2.0 Protocol.

Android 12 OS
Completely solve the stability problem of Wi-Fi with Wi-Fi 6
Two-way video communication with other units in the network
Complies with SIP standard for easy integration in every SIP capable PBXes
Powered by PoE or external source
Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
Support Voice Changer to protect the children and women living alone
Support US or European electrical wall box mounting
Built-in smart voice assistant

SKU: AK-S567G-WHITE Categories: Akuvox, Akuvox Apartment Tags: Akuvox Akuvox, Receiving Unit, S567

Free Shipping for orders over $600 (AU Only)*

Brand: Akuvox

Description

AK-S567G-WHITE – High Performance Version (4GB RAM +16GB ROM + Wi-Fi 6 + Bluetooth + Google GMS Certification)

Akuvox S567 10 indoor monitor runs on the industry-leading Android 12 OS and is equipped with Wi-Fi 6 communication technology. The dual mics and quad speakers together provides superior audio quality. With the minimalist design S567 blends well into any modern interior design.

Akuvox S567G At a Glance:

Strong compatibility with Android 12 OS
Two-way audio communication with other units in the network
Excellent audio-visual intercom experience with four high level speakers
Complies with SIP standard for easy integration in every SIP capable PBXes
Powered by PoE or external source
Integrated Wi-Fi 6 available on S567W only
Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
Support Voice Changer to protect the children and women living alone
Support US or European electrical wall box mounting
Built-in smart voice assistant
Standard Version&65288;2GB RAM4GB ROM&65289;
High Performance Version 4GB RAM 16GB ROM Wi-Fi 6 Bluetooth Google GMS Certification

Physical & Power

Front panel: Plastic

RAM / ROM: 4GB / 16GB

Display: 10 Inch IPS LCD

Screen: 10 Inch capacitive touch screen

RS485 Port: Support

Relays Out: 1

Bell in: 1

Alarm Input: 8

Camera: 5MP

Microphone: Dual microphones,-26dB

Speaker: Quad speakers, 8? / 2W

Ethernet Ports: 1xRJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC Connector (if not using PoE)

Tamper Resistant: Support

Installation: Wall-mounted & Desktop

Dimension: 278×165.1×22.8 mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C

Touch Screen Display

Display Mode: Normally black, Transmissive

LCD Size: 10inch (Diagonal)

Aspect Ratio: 16:10

Resolution: 1280×800

Contrast ratio: 900:1

Luminance: 290 cd/m²

Viewing Angle: 80° Left, 80° Right,

80° Upper, 80° Lower

Touch Screen: Projected capacitive

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711?, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Automatic Gain Control

Video

Streaming formats: H.263 & H.264

Networking

Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)

Voice Assistant

Voice pickup distance up to 5 meters

Voice recognition accuracy up to 95%

Privacy protection with native voice data

Support English

Application Scenario

Villas

Apartment complexes

Home automation systems

Modern interiors

Please download documents from the following links:

Akuvox S567G Datasheet V3.0
