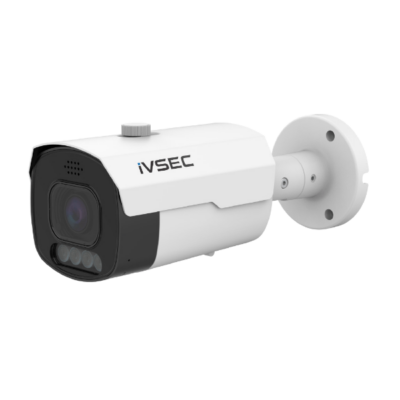

NC317ADX Security Camera
Superior to a fixed wide-angle lens the motorised lens optimises field of view. Includes Advanced Deterrent features -red/blue strobing lights and siren Speak to talk through the mobile app or set off the siren full colour at night. Robust metal housing – best installed out of reach. Quality AI for Human and Vehicle Detection -a step-up from standard Smart Motion Detection with greater range of detection and reduced false notifications.
Camera Type
Bullet
Image Sensor
1/2.7? Progressive CMOS
Maximum Video Resolution Megapixels
5
Maximum Video Resolution
2880 x 1620
Lens
2.8-12 mm H.FOV 113 to 35°
Lens Type
Motorised Zoom
Maximum Night IR Distance M
30
Video Compression
H.265 H.265 H.264 H.264 MJPEG
ONVIF depends on firmware version
ONVIF Profile S/G/T 21.12 or greater Http API
IP Rating
IP66
Operating Environment
-35ºC to 60ºC -31ºF-140ºF Humidity 20-95 RH
Dimensions
Ø151 X 113mm
Weight Net
0.9
Accessories
IV2422X IV2477X IV2433X IV2490X
Power Supply
Power over Ethernet IEEE 802.3af DC12V
Power Consumption
<10.5W
Connectors
RJ-45 DC Power Input Reset Button
Outdoor Use
Yes
Vandal Resistant
Yes
Frame Rate at Resolution
25
Day/Night Mode
Schedule Time Based Full colour white LEDS or Day/Night IR LEDS
LED Types
IR Warm White Red and Blue
Image Enhancement
SMART IR Flip mode Brightness Contrast Saturation Sharpness Hue Mirror Angle Flip Corridor Mode Back Light White Balance Shutter Time Exposure Defog 3D Noise Reduction
Edge Recording microSD/SDHC Card
Micro SD/SDHC Card
Multiple Streams encode format
3 Streams
Audio Streaming
Two-way audio microphone with a distance up to 8m and speaker included
Protocols
TCP/IP UDP HTTP HTTPS DHCP FTP RTP/RTSP DNS DDNS NTP PPPOE UPNP SMTP SNMP P2P QR code
Intelligent Video IVS
Face Detection Human&Vehicle Detection Perimeter Intrusion Detection Line Crossing Detection Cross Counting Stationary Object Detection Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare Sound Detection
Cloud option camera only
Dropbox
Software
Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code
Power Over Ethernet
Yes
Ethernet
Ethernet 10/100 Base-T
In The Box
Free Software available ivsecurity.com.au/support/software Printed quick user guide installation template mounting screws and plugs
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
IVSEC Bullet IP CAM 5MP 25fps Motorised Lens
$396.00Original price was: $396.00.$344.08Current price is: $344.08.IVSEC BULLET IP CAM 5MP 25FPS MOTORISED 2.8-12MM LENS FULL COLOUR ADV DET
Description
NC317ADX Security Camera
Superior to a fixed wide-angle lens the motorised lens optimises field of view. Includes Advanced Deterrent features -red/blue strobing lights and siren Speak to talk through the mobile app or set off the siren full colour at night. Robust metal housing – best installed out of reach. Quality AI for Human and Vehicle Detection -a step-up from standard Smart Motion Detection with greater range of detection and reduced false notifications.
DORI Distance
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Note: Wide is for minimum zoom and Tele is for Maximum Zoom
For more information on selecting a CCTV camera please see this post:
Choosing the right CCTV camera for your application.
Download documents from the following links:
IVNC317ADX-datasheet
