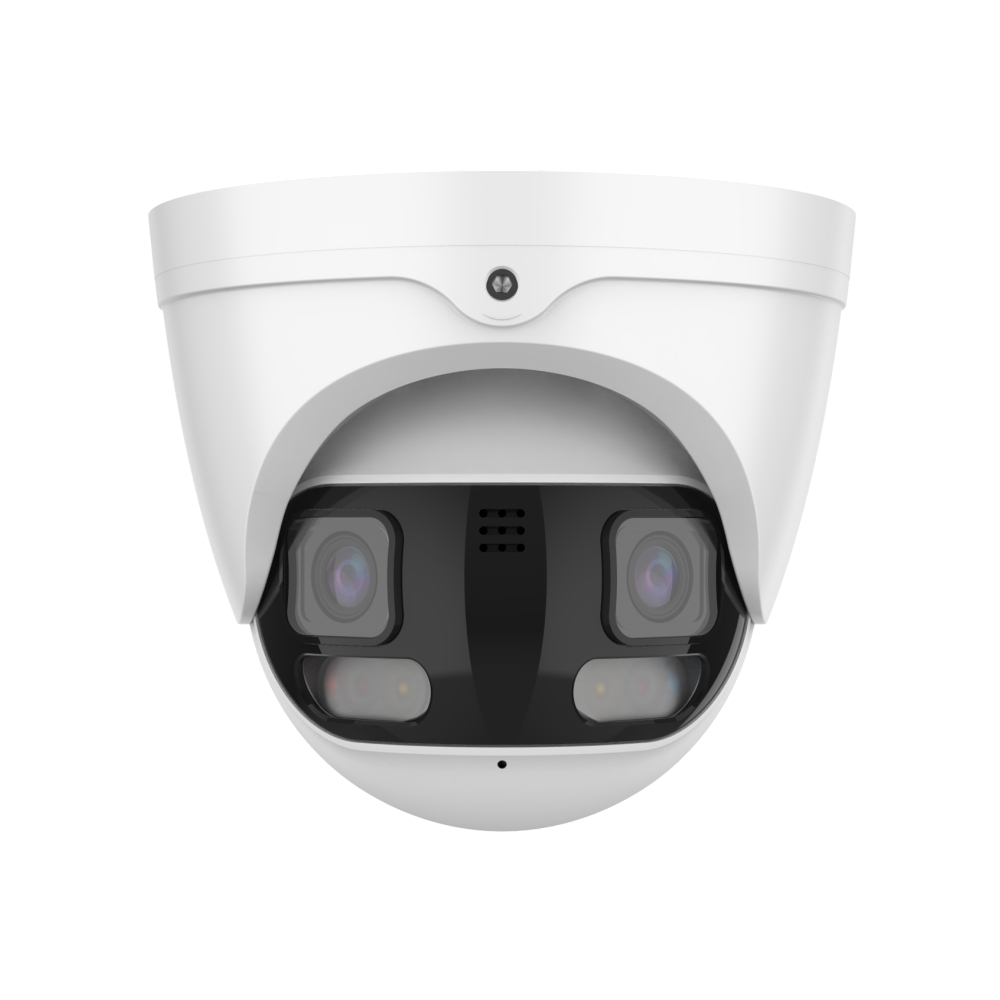

The NC544ADXB is an advanced eyeball IP camera designed to deliver unparalleled surveillance capabilities in various environments. It captures crisp and detailed images over a wide area ensuring comprehensive coverage for enhanced security. The 2 x 4MP 2.8mm fixed lenses provide a 180 degrees panoramic view. The Active Deterrence features provide visible warnings and notifications of intrusion into the camera field of view.
This camera is available for planning in the Sitemesh 3D database
Camera Type
Panoramic
Image Sensor
2 x 1/2.7″ Progressive CMOS
Maximum Video Resolution Megapixels
8
Maximum Video Resolution
5120 x 1440
Frames Per Second FPS
15
Lens
2.8mm 180°
Lens Type
Panoramic
Maximum Night IR Distance M
30
LED
IR Red & Blue Warm White
Video Compression
H.265 H.265 H.264 H.264 MJPEG
ONVIF depends on firmware version
ONVIF Profile S/G/T HTTP API
Accessories
IV2456X
Outdoor Use
Yes
IP Rating
IP67
IK Rating
IK10
Day/Night Mode
Day Night Auto Schedule
Image Enhancement
Rotate Saturation Brightness Contrast Sharpness White Balance BLC 3D DNR HLC
Intelligent Video IVS
Motion Detection Face Recognition Pedestrian & Vehicle Detection Line Crossing Object Detection Cross Counting Heat Map Crowd Density Queue Length License Plate Recognition Intrusion Region Entrance Region Exiting
Edge Recording microSD/SDHC Card
Micro SD/SDHC Card
Multiple Streams encode format
2 Streams
Software
Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code
English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish
Cloud option camera only
Dropbox
Audio Streaming
Yes microphone and speaker included
Ethernet
Ethernet 10/100/1000 Base-T
Power Over Ethernet
Yes
Power Supply
Power over Ethernet IEEE 802.3at DC12V
Power Consumption
< 14W
Connectors
RJ-45 DC Power Input Reset Button
Operating Environment
-30ºC to 60ºC -22ºF-149ºF Humidity ?90 RH
In The Box
Free Software available from FTP Printed quick user guide Installation template Mounting screws and plugs
Product Dimensions H x W x L mm
127 x 136 x 136
Packaging Dimensions H x W x L mm
150 x 150 x 150
Weight Net kg
0.80
Weight (Gross) kg
0.50
Warranty
3 Year Warranty
Please download documents from the following links:
IVSEC Turret IP Camera 2 x 4MP Panoramic Fixed Lens
Guest Price – Login to see Member Pricing
$869.00Original price was: $869.00.$418.88Current price is: $418.88.IVSEC TURRET IP CAMERA 2 x 4MP PANORAMIC 2.8MM FIXED LENS 20FPS ADV DET ADV IVS
This camera is available for planning in the Sitemesh 3D database
Description
NC544ADXB Security Camera
The NC544ADXB is an advanced eyeball IP camera designed to deliver unparalleled surveillance capabilities in various environments. It captures crisp and detailed images over a wide area ensuring comprehensive coverage for enhanced security. The 2 x 4MP 2.8mm fixed lenses provide a 180 degrees panoramic view. The Active Deterrence features provide visible warnings and notifications of intrusion into the camera field of view.
This camera is available for planning in the Sitemesh 3D database
Please download documents from the following links:
IVNC544ADXB_v3_Datasheet
