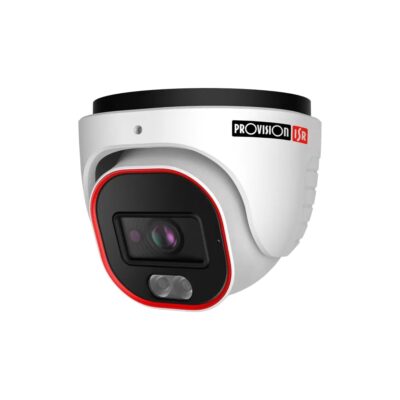

2MP Rainbow Fixed Turret Cam. White LED - DV-320SRN-28

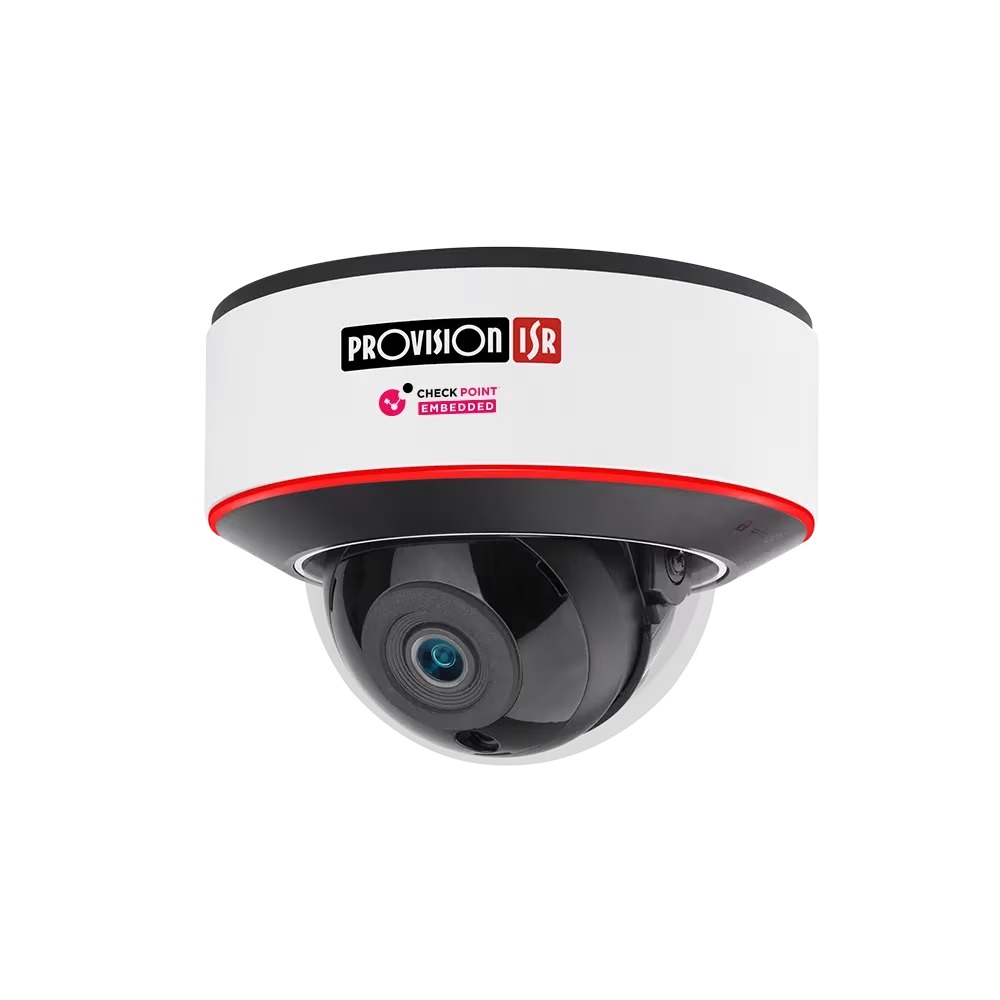

20M IR 2MP Fixed Lens Dome - DI-320IPSN-28

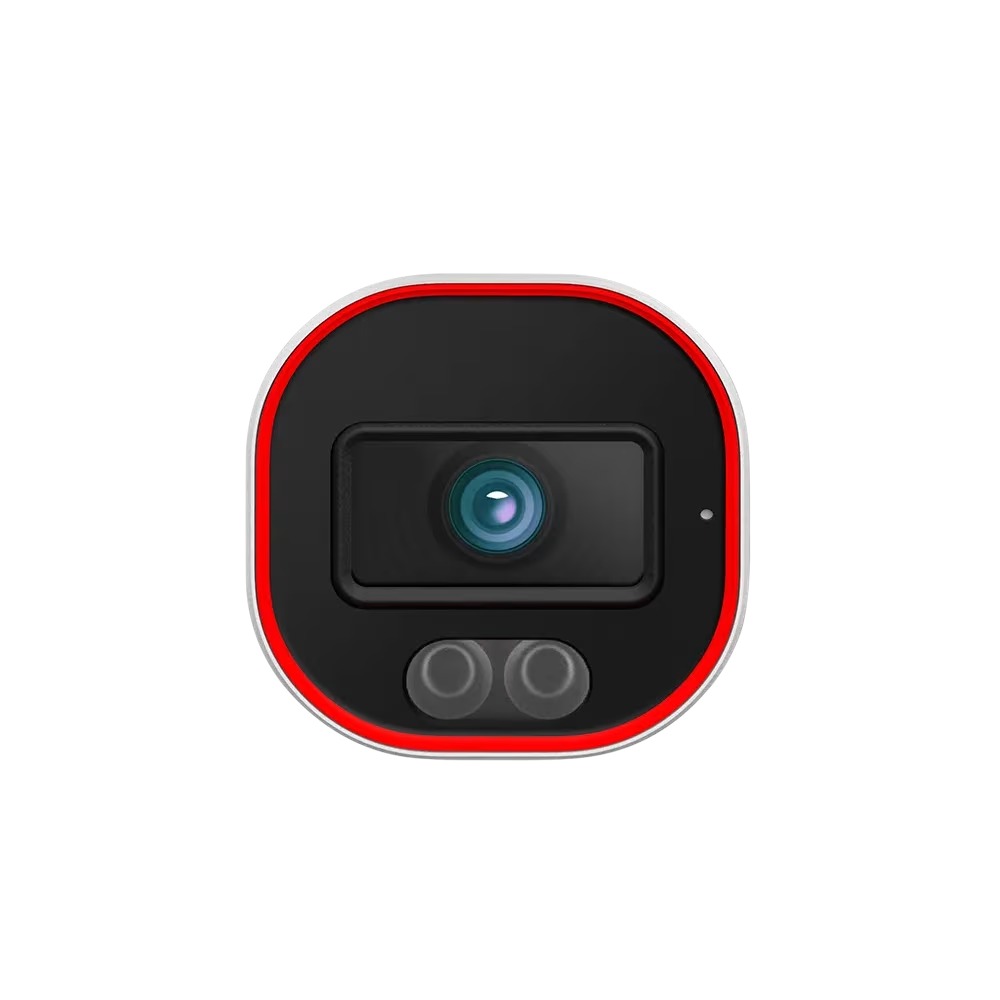

2MP Rainbow Fixed Turret Cam. White LED - DV-320SRN-28 - Image 3
2MP Rainbow Fixed Turret Cam. White LED - DV-320SRN-28 - Image 4

2MP Rainbow Fixed Turret Cam. White LED – DV-320SRN-28

Login, Register, or Call for Price

With its outstanding performance, reliability, and affordable price, the DV-320SRN-28 camera is the perfect solution for indoor/outdoor installations.
SKU: DV-320SRN-28 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

2MP Rainbow Fixed Lens Dome/Turret Camera with White LED

The DV-320SRN-28 is a 2MP dome/turret camera from the Rainbow Series, engineered with ultra light-sensitive sensors to deliver full-colour imaging around the clock. In low-light environments, its integrated white LED activates automatically, maintaining vivid colour visuals without compromising detail.


Ideal for both indoor and outdoor installations, the camera supports DDA Analytics (Detect, Distinguish, Alert), enabling accurate human and vehicle recognition. With its combination of exceptional performance, dependability, and cost-effectiveness, the DV-320SRN-28 provides a smart surveillance solution for a wide range of applications

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

features-s-sight-2mp-rainbow-36

DV-320SRN-28 Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
24/7 Full-Color Day Mode
Min. Illumination
0 lux (LED on)

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (105.2°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
51.01m(167.35ft)
Recognize
10.20m(33.46ft)
Identify
5.10m(16.73ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
25m (2 High-Power White LED)
Power Supply
DC12V/~420mA / PoE/~5.4W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~450g
Hard Reset Button
Yes
Register for Member Pricing

Documents

DV-320SRN-28 Datasheet

320IPSR 340IPSR Rainbow S-Series v2 Manual (All Models)

Register for Member Pricing

Software:

Ossia Video Player

Latest VMS Version

Register for Member Pricing

IP Tool Archive

2MP Rainbow Fixed Lens Dome/Turret Camera with White LED

The DV-320SRN-28 is a 2MP dome/turret camera from the Rainbow Series, engineered with ultra light-sensitive sensors to deliver full-colour imaging around the clock. In low-light environments, its integrated white LED activates automatically, maintaining vivid colour visuals without compromising detail.


Ideal for both indoor and outdoor installations, the camera supports DDA Analytics (Detect, Distinguish, Alert), enabling accurate human and vehicle recognition. With its combination of exceptional performance, dependability, and cost-effectiveness, the DV-320SRN-28 provides a smart surveillance solution for a wide range of applications

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

Register for Member Pricing

features-s-sight-2mp-rainbow-36

DV-320SRN-28 Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
1920×1080
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
24/7 Full-Color Day Mode
Min. Illumination
0 lux (LED on)

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip, Corridor Mode
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing
Motion Detection
Yes

Compression

Resolution
2MP / 1MP / D1 (704×576) / QVGA (480×240) / CIF (352×288)
Frame Rate
1-25/30FPS
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920×1080) / 1MP (1280×720) (1~30fps) Substream: QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (105.2°)
Iris
Fixed Iris
Lens Mount
M12 Mount
Detect
51.01m(167.35ft)
Recognize
10.20m(33.46ft)
Identify
5.10m(16.73ft)

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 128GB)
Wiegand
N/A
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
25m (2 High-Power White LED)
Power Supply
DC12V/~420mA / PoE/~5.4W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø97mm×82.6mm
Weight (gross)
~450g
Hard Reset Button
Yes

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DV-320SRN-28

Detect (25px/m)
41m

Observe (63px/m)
16m

Recognise (125px/m)
8m

Identify (250px/m)
4.2m

Register for Member Pricing

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
