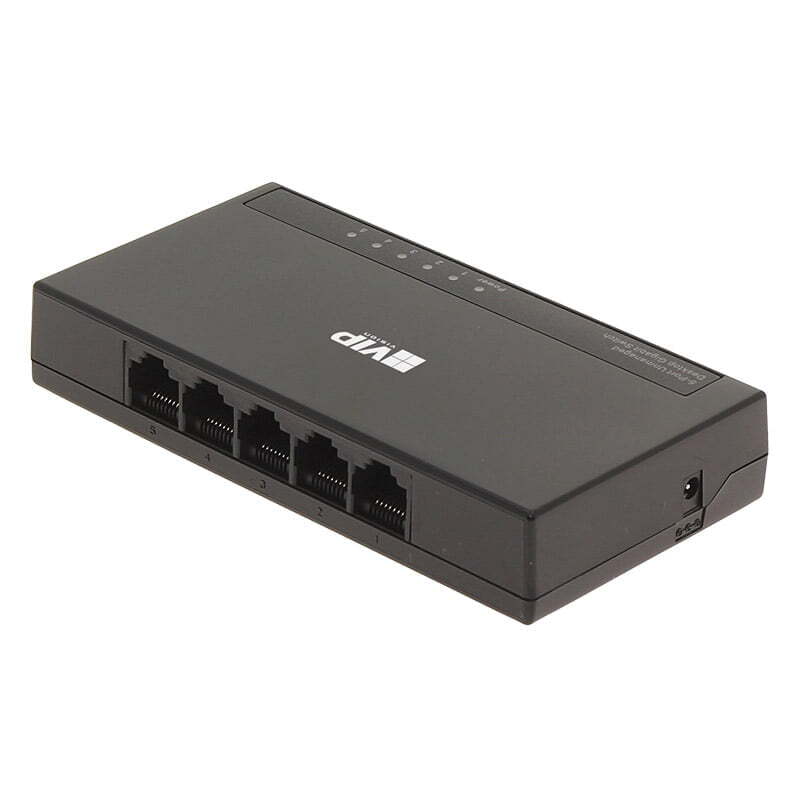

The VSETH-SW5G2 is a 5-port Gigabit Ethernet switch that offers high-speed data transmission and reliability for home and SOHO applications. This is not a PoE switch.
Features:
5 x 10/100/1000Mbps Base-T Ethernet ports
Unmanaged switch for affordability & ease of use
LED indicators for displaying information
Desktop switch for home or SOHO application
Professional appearance full metal enclosure
Overvoltage protection up to 8kV
5VDC input power
Specification
Device Ports
5 x 10/100/1000 Base-T
DHCP
N/A

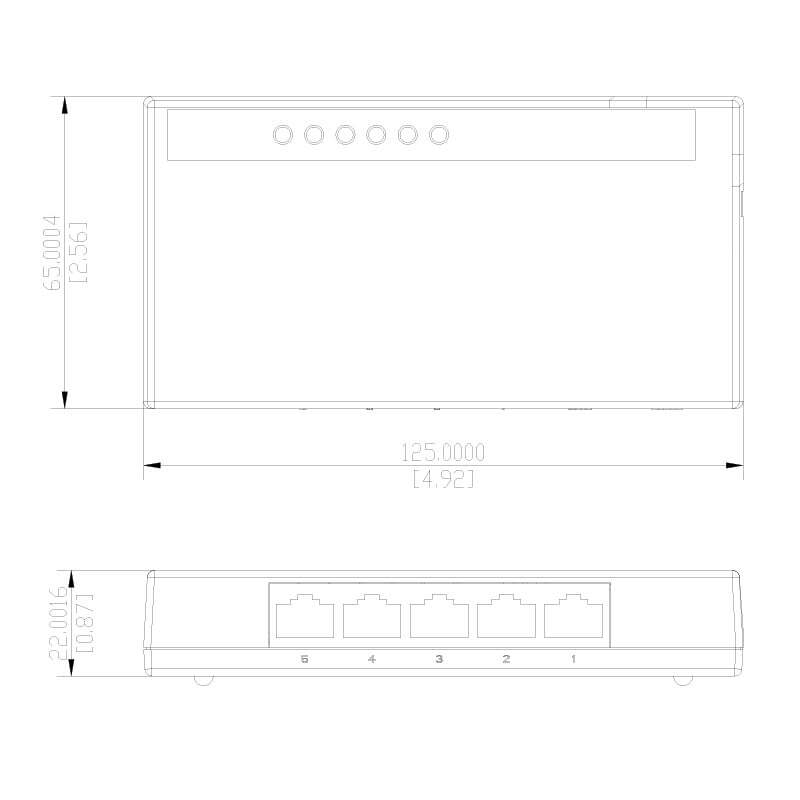

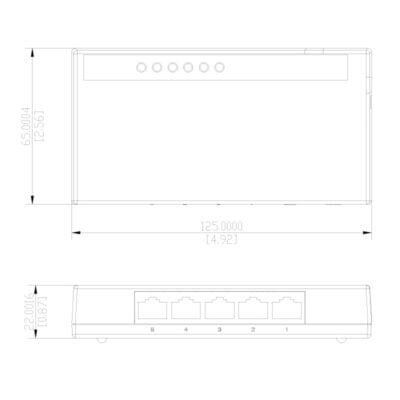

Dimensions
125mm x 65mm x 22mm
Exchange Mode
Store & foward
Extend Mode
N/A
Flow Control
N/A
Input Power
5VDC 1A
Lightning Protection
Common Mode: 2KV / Air Discharge: 8KV / Contact Discharge: 4KV
LLDP
N/A
MAC Address Capacity
2K
Mounting Options
Desktop
Network Management
N/A
Network Time Protocol
N/A
Operating Environment
0° ~ +40°C
Packet Forwarding Rate
7.44Mbps
PoE
No
PoE Management
N/A
PoE Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
Ports
5 ports
Quality of Service
N/A
Security Features
N/A
Spanning Tree Protocol
N/A
Speed
Gigabit 10/100/1000
Switch Management
Unmanaged
Switch Power Load
N/A
Switching Capacity
10Gbps
System Maintenance
N/A
Uplink Ports
N/A
Virtual LAN
N/A
Weight
0.09kg
Please download documents from the following links:
VIP Vision 5 Port Unmanaged Gigabit Ethernet Switch (1000M) – VSETH-SW5G2
