The VSPOE-SWB16G2 is a rackmount, gigabit Hi-PoE switch in 16 ports. It is a versatile networking solution for demanding bandwidth requirements, with flexibility for a range of high-powered PoE devices. It is an L2 managed switch, offering configuration of network traffic quality of service, VLAN and a suite of other features.
Product Features:
14 x PoE+ device ports with 1000Mbps per port
2 x Hi-PoE device ports with 1000Mbps per port
2 x 1000Mbps Gigabit SFP (Base-X) uplink ports
1 x RS232 via RJ45 console port for management access
Total PoE power load up to 240W
Managed switch for network transmission customisation
Rackmount tabs included for easy cabinet mounting
Professional appearance full metal enclosure
Specifications
Ethernet
Ethernet Ports
x 1000 Base-X (combo port) / 16 x 10/100/1000 Base-T (PoE power supply ports)
Remote Management
Remote Management System
Switch Power Load
Port 1-2: ?60W / Ports 3-16: ?30W (Total: ?240W)
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switching Capacity
52Gbps
Packet Forwarding Rate
23.81Mpps
MAC Table Size
8K
Exchange Mode
Store & forward
Environmental
Power Supply
100~240VAC
Lightning Protection
Common Mode: 2KV / Differential Mode: 1KV
Operating Environment
-10° ~ 55°C / RH90% (max)
Mounting Options
Rackmount Tabs (1RU)
Weight
3.75kg
Dimensions
440 x 300 x 44mm
Warranty (Years)
4
Shipping Weight and Dimensions includes product packaging

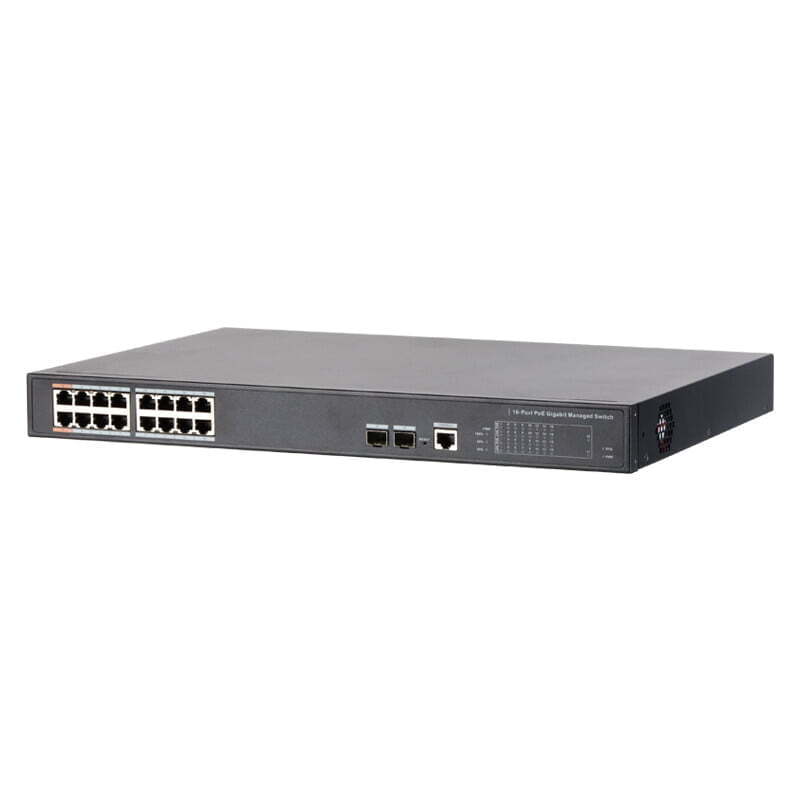

16-port Managed Gigabit Hi-PoE Ethernet Switch – VSPOE-SWB16G2
$707.85Original price was: $707.85.$604.40Current price is: $604.40.Out of stock
Description
The VSPOE-SWB16G2 is a rackmount, gigabit Hi-PoE switch in 16 ports. It is a versatile networking solution for demanding bandwidth requirements, with flexibility for a range of high-powered PoE devices. It is an L2 managed switch, offering configuration of network traffic quality of service, VLAN and a suite of other features.
Product Features:
Specifications
Shipping Weight and Dimensions includes product packaging
Download the brochure from the link below.
VSPOE-SWB_Series_Product_Datasheet_PDF
