Akuvox R20K Doorphone with Keypad In Wall

Guest Price – Login to see Member Pricing

Login, Register, or Call for Price

Keypad
Card Reader
2MP camera
110° FOV
2 output relays
IP65

Description

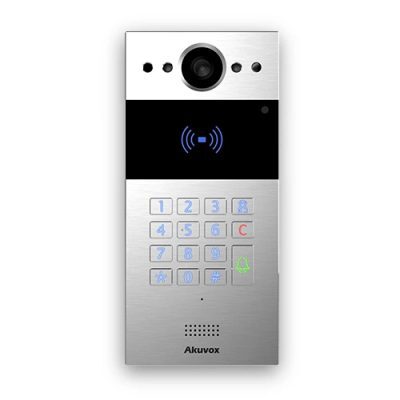

R20K – Compact VoIP (SIP) Video Door Station with 2MP Camera, Card Reader, 2 relays, Keypad, IP65, with Surface Mount – Flush Mount kit.

R20K is a compact, SIP-enabled IP video door phone with Keypad and card reader and is ideal for environments with limited space. It enables easy monitoring of an entrance area and convenient entry control. This version includes the in-wall (flush mount) kit.

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox’s Compact Video Doorphone R20K enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

Enables audio and visual monitoring of doors/gates which increases security on residential or commercial premises;
Uses the latest H.264, H.265 video and G.722 audio codecs to provide you with the highest quality video image and audio clarity;
Allows both audio and video communication to an IP phone, mobile client, or softphone;
PoE (IEEE802.3af, Power-over-Ethernet) or 12VDC (supply not included);
Eliminates the need for personnel to be physically stationed at the door/gate which improves productivity and frees them up to work on other things;
Speeds response time to visitors, delivery and service personnel that require access;
Premium audio and video quality
Real-time entrance monitoring
Remote door opening
Multiple access methods
SIP/ONVIF/Wiegand/PoE/IP65

Akuvox Video Integration

The R20K seamlessly integrates with Akuvox products, and its camera is ideal for working with Akuvox monitors. The real time video is streamed and can be viewed at any time. There is no need for any 3rd party software or IP PBX support to view the video stream.

Specifications

Physical & Power

Body material

Aluminum alloy

Camera

2MP, auto lighting

Button

Numeric Keypad with extra buttons

Relays

2 out

Power

12VDC if not using PoE

Ports

RS485 & Weigand

Water-proof & Dust-proof

IP65

Installation

Flush and surface mounting

Dimension

Flush: 226x108x52mm Surface: 185x85x24mm

Card Reader

13.56MHz & 125KHz

IR Sensor

Yes

Networking

Ports

1×10/100 Mbps Ethernet port

DHCP or Static IP

Time

Network Time Protocol

SIP Endpoint

SIP Version

SIP v1(RFC2543), SIP v2(RFC3261)

Audio codecs

G.711a, G.711u, G.729, G.722

Video codecs

H.264 and H.265

Other Features:

Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Door opener via DTMF post-dial

Application Scenarios:

Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment / Residential intercom with door access control

Video

Resolution

up to 1080p

Maximum image transfer rate

1080p – 25fps

IR Light

High intensity LEDs for picture lighting during dark hours

Door Entry Features

Relays controlled individually by DTMF tones or messages
Multi-way Unlock: IC Card, and PassNumber;
Camera permanently operational, not just during calls
Viewing angle: 110 °
Auto-night mode with LED illumination

Application Scenarios

Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment / flat intercom with door access control
